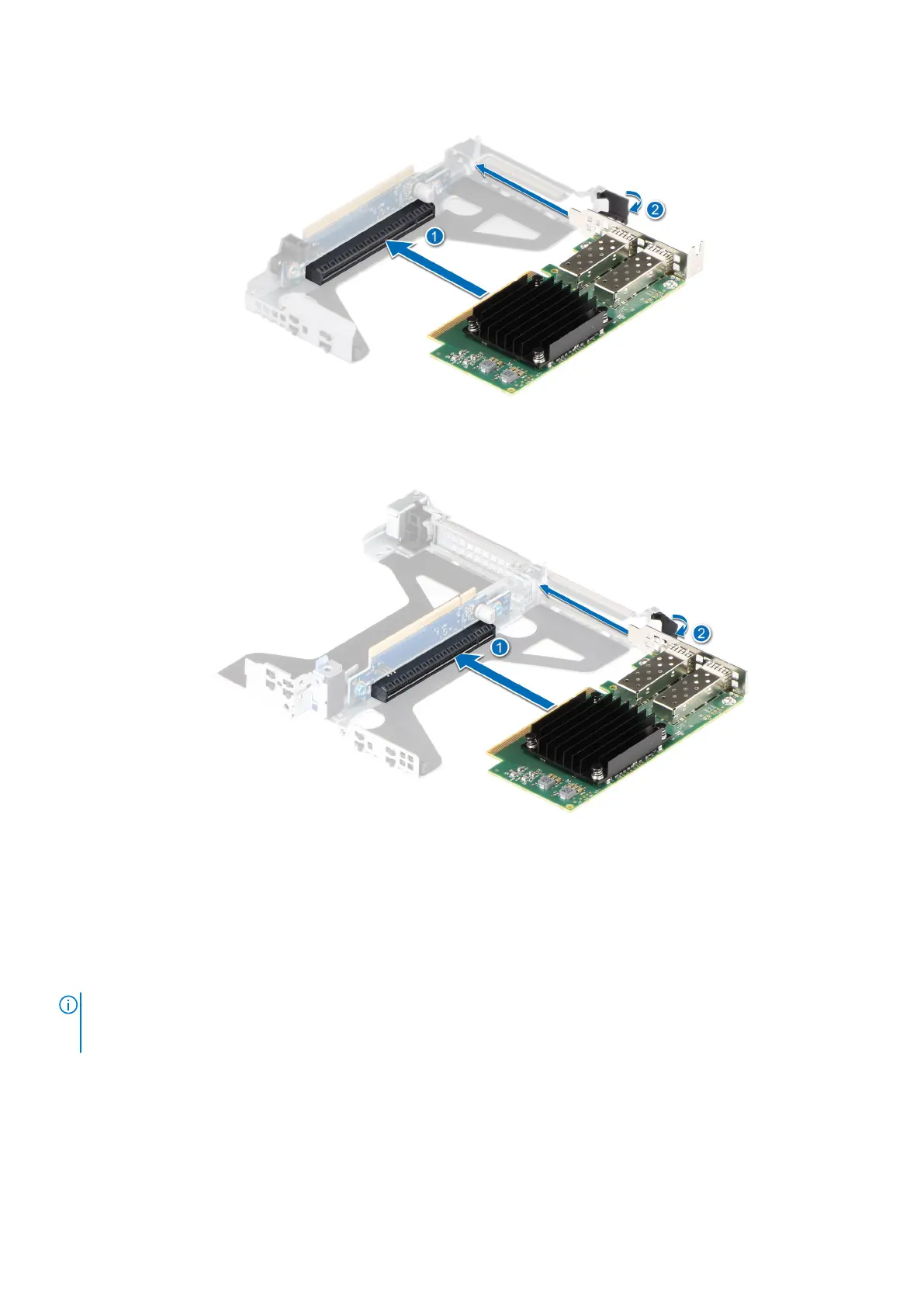

Figure 66. Installing an expansion card into a Riser 1
Figure 67. Installing an expansion card into a Riser 2c
Next steps
1. If applicable, connect the cables to the expansion card.
2. Replace the air shroud.
3. Follow the procedure listed in After working inside your system.
4. Install any device drivers required for the card as described in the documentation for the card.
NOTE:
While replacing faulty storage controller, FC, or NIC card with the same type of card, after you power on the
system; the new card automatically updates to the same firmware and configuration of the faulty one. For more information
about the Part replacement configuration, see the Lifecycle Controller User's Guide at https://www.dell.com/idracmanuals.
Installing and removing system components 65
