NOTE: Route the cable properly to prevent the cable from being pinched or crimped.
2. Align and insert the right control panel in the slot on the system.
3. Connect the right control panel cable to the connector on the system board.
4. Using the Phillips #1 screwdriver, tighten the screws that secure the right control panel to the system.
NOTE: The numbers on the image do not depict the exact steps. The numbers are for representation of sequence.

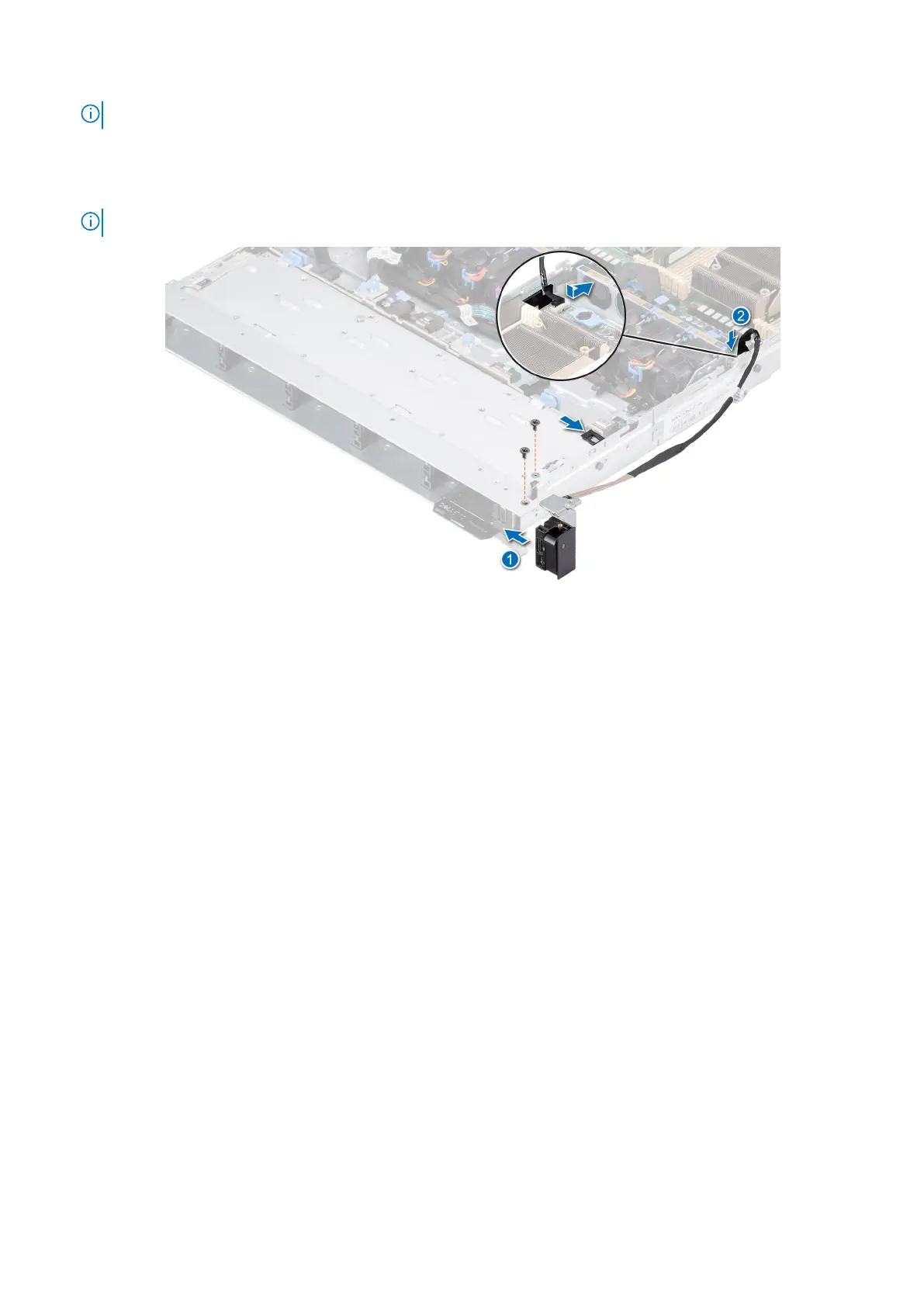

Figure 96. Installing the right control panel
Next steps
1. Replace the air shroud.
2. Replace the backplane cover.
3. Replace the front bezel.
4. Follow the procedure listed in After working inside your system.
