32 | Fans
www.dell.com | support.dell.com
To install a new fan module, follow these steps:
Step Task

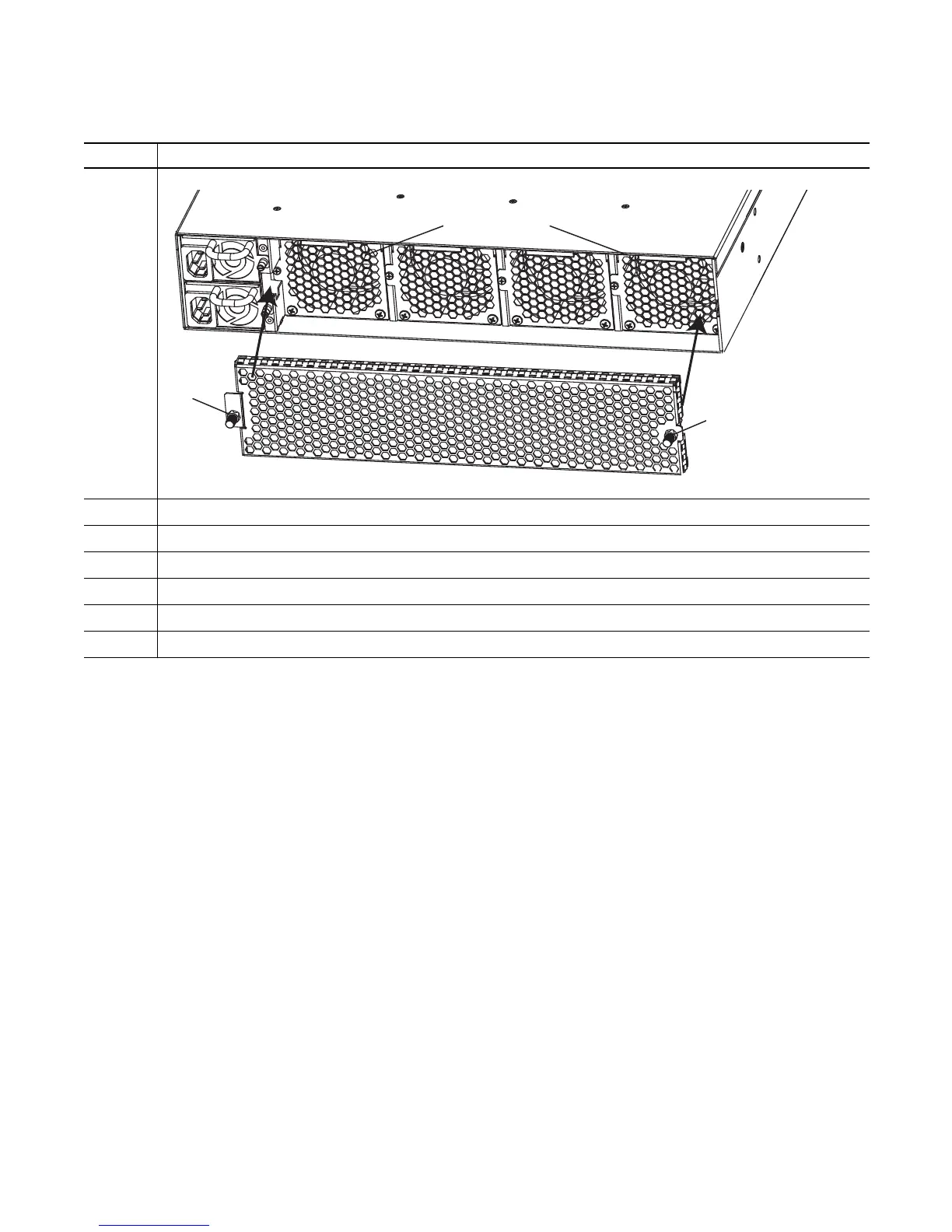

1 Twist the latching screws so that the fan screen detaches from the system as shown in the following figure.
2 Remove the screen and set it aside.
3 Take the fan module out of the shipping box.
4 Use the grab handle to slide the module into the bay.
5 Tighten the securing screw on the side of the module.
6 Replace the fan screen.
7 Twist the latching screws to the fan screen until it is securely attached to the system.
Fan screen
PSU1
PSU0
Fan modules
Latching
screw
Latching
screw
