Replace a Fan Module
To replace a fan module, follow these steps:
Step Task
1 Twist the latching screws so that the fan screen detaches from the system.
2 Remove the fan screen and set it aside.
3 Loosen the securing screw on the side of the module.
CAUTION: You must complete steps 4 and 5 within one minute or the system will power down.
4 Use the grab handle on the module to slide it out of the bay.
5 Use the grab handle on the replacement module to slide it into the bay.
6 Tighten the captive screw on the module with a screwdriver. Ensure that the module is secure.
7 Replace the fan screen.
8 Twist the latches to the fan screen until it is securely attached to the system.

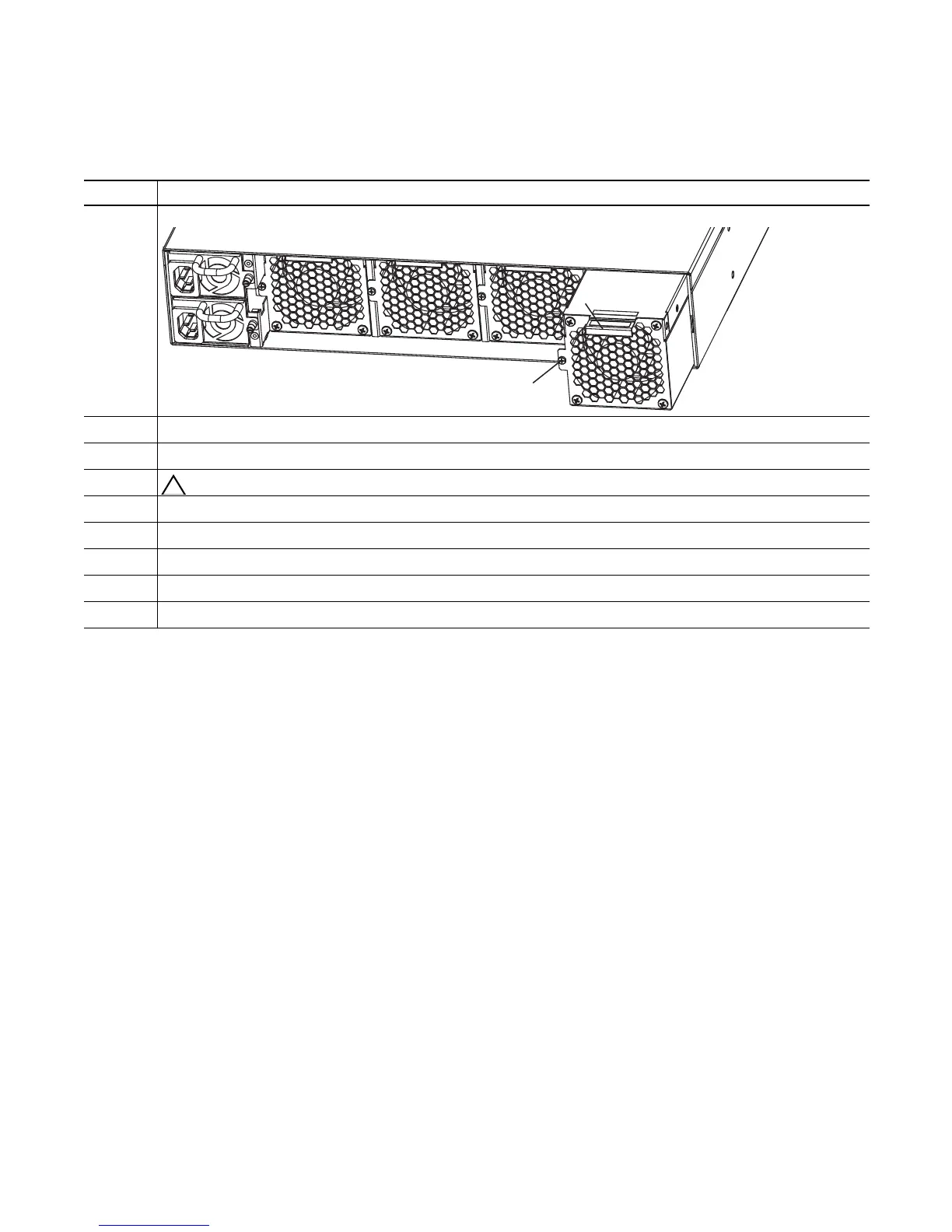

PSU1
PSU0
Fan Module 0
Fan Module 1
Fan Module 2
Fan Module 3
Screw
Grab Handle
