Dell Latitude 5310 2-in-1 - Installing the Battery

Installing the battery
Steps

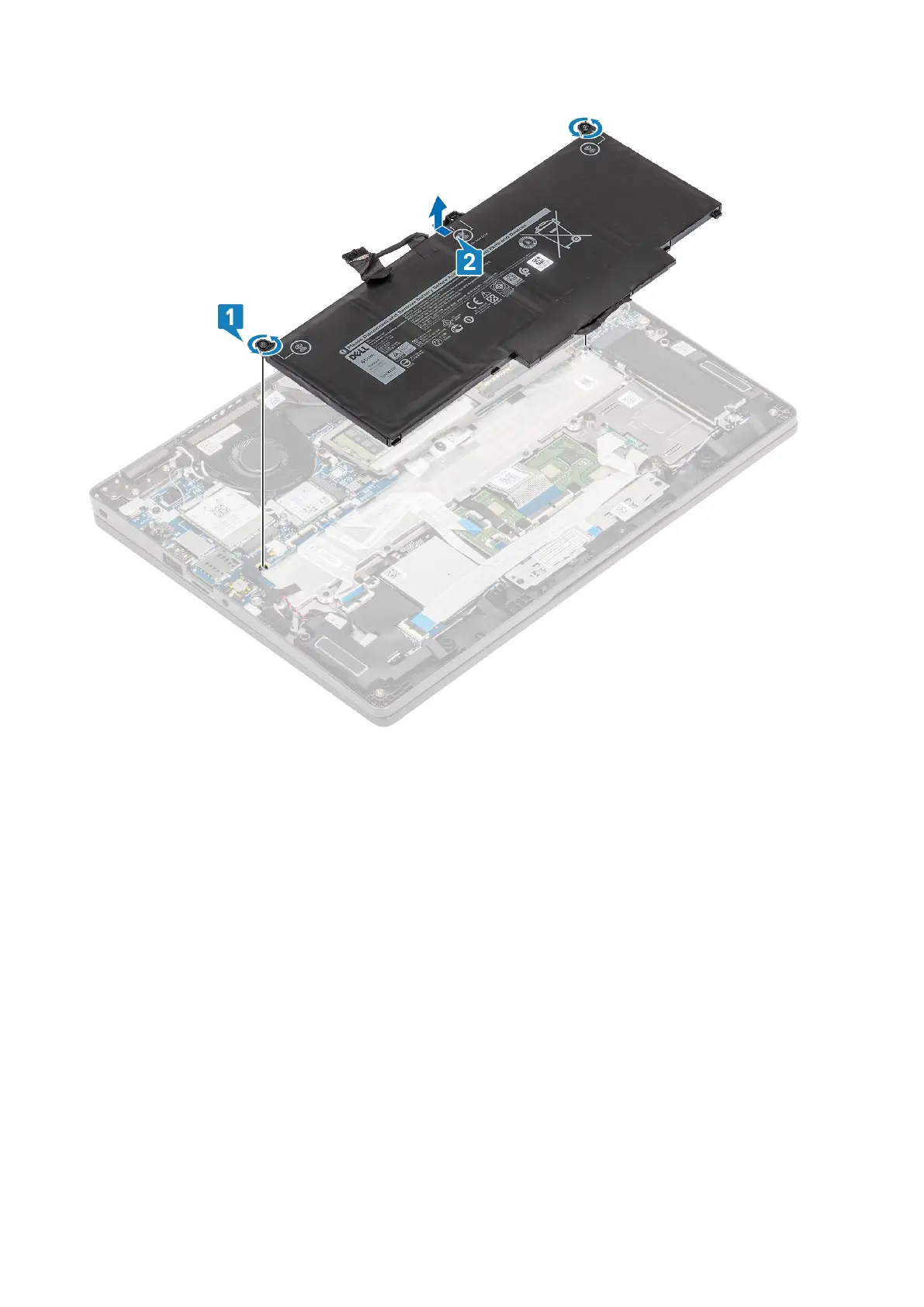

1. Align the tabs on the battery with the slots on the palm rest assembly [1].
2. Place the battery in the battery bay.
3. Tighten the two captive screws to secure the battery to the palmrest [2].
