Dell Latitude 5310 2-in-1 User Manual

Coin-cell battery
Removing the coin-cell battery
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the microSD card.
3. Remove the base cover.
4. Remove the battery.
5. Remove the speaker.
6. Remove the heatsink.
7. Remove the memory module.
8. Remove the system fan.
9. Remove the DC-in .
10. Remove the WLAN card.
11. Remove the WWAN card.
12. Remove the system board.
Steps

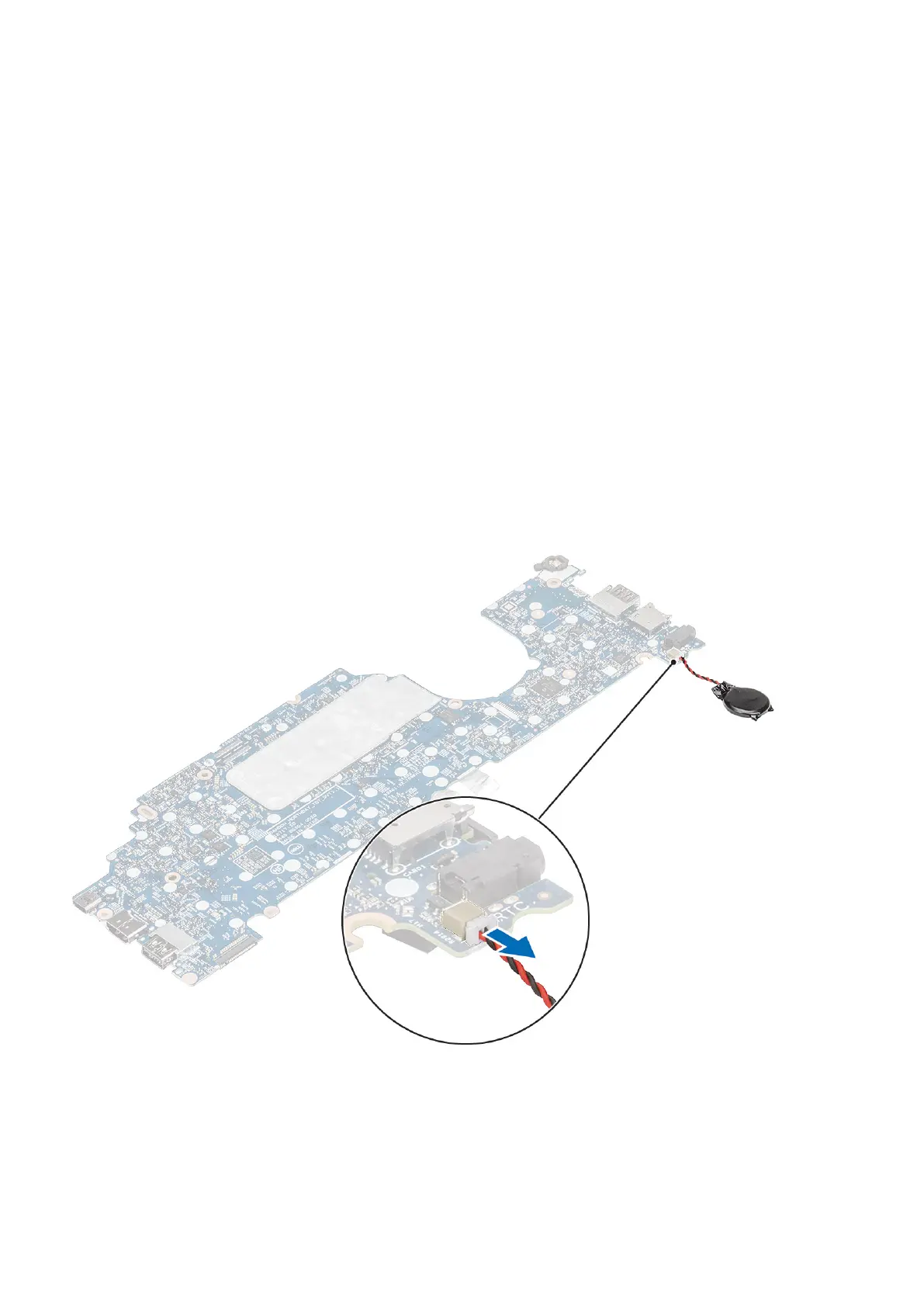

Turn the system board and disconnect the coin cell battery cable from the connector on the system board.
Installing the coin-cell battery
Steps
Turn the system board and connect the coin cell battery cable to the connector on the system board.
76
Disassembly and reassembly

Dell Latitude 5310 2-in-1 Specifications

General

Graphics	Intel UHD Graphics
Operating System	Windows 10 Pro
Bluetooth	Bluetooth 5.1
Processor	10th Gen Intel Core i3/i5/i7
Display	13.3-inch FHD (1920 x 1080) Touch
RAM	Up to 32GB DDR4
Storage	Up to 1TB PCIe NVMe SSD
Battery	4 Cell 60 Whr ExpressCharge™ Capable Battery
Wireless	Intel Wi-Fi 6 AX201
Ports	1 x microSD card reader
Dimensions	305.7 mm x 207.5 mm x 19.6 mm
