Dell Latitude 5310 2-in-1 User Manual

Next steps
1. Replace the battery.
2. Replace the base cover.
3. Replace the microSD card.
4. Follow the procedure in after working inside your computer.
Touchpad button board
Removing the touchpad button board
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the microSD card.
3. Remove the base cover.
4. Remove the battery.
5. Remove the speaker.
6. Remove the LED board.
NOTE: Removal of system board and heatsink are not required to remove the touchpad button board.
Steps

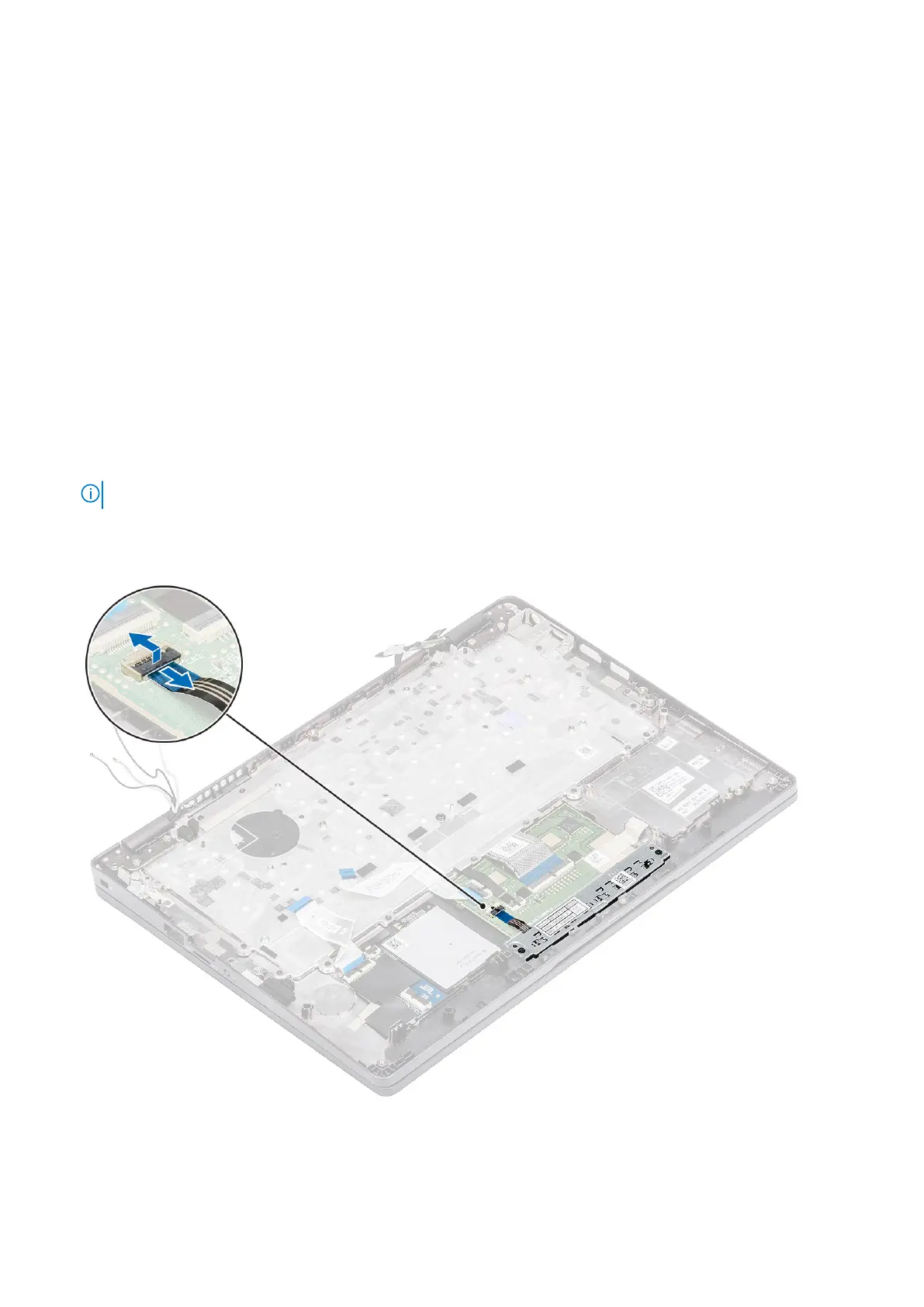

1. Open the latch and disconnect the touchpad button board cable from the connector on the touchpad board.
2. Remove the two (M2x3) screws that secure the touchpad button bracket to the palmrest [1].
3. Lift the touchpad button board bracket away from the computer [2].
60
Disassembly and reassembly

Dell Latitude 5310 2-in-1 Specifications

General

Graphics	Intel UHD Graphics
Operating System	Windows 10 Pro
Bluetooth	Bluetooth 5.1
Processor	10th Gen Intel Core i3/i5/i7
Display	13.3-inch FHD (1920 x 1080) Touch
RAM	Up to 32GB DDR4
Storage	Up to 1TB PCIe NVMe SSD
Battery	4 Cell 60 Whr ExpressCharge™ Capable Battery
Wireless	Intel Wi-Fi 6 AX201
Ports	1 x microSD card reader
Dimensions	305.7 mm x 207.5 mm x 19.6 mm
