Dell Latitude 5310 2-in-1 - Heat Sink; Removing the Heatsink

Next steps
1. Replace the battery.
2. Replace the base cover.
3. Replace the microSD card.
4. Follow the procedure in after working inside your computer.
Heat sink
Removing the heatsink
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the microSD card.
3. Remove the base cover.
4. Remove the battery.
Steps

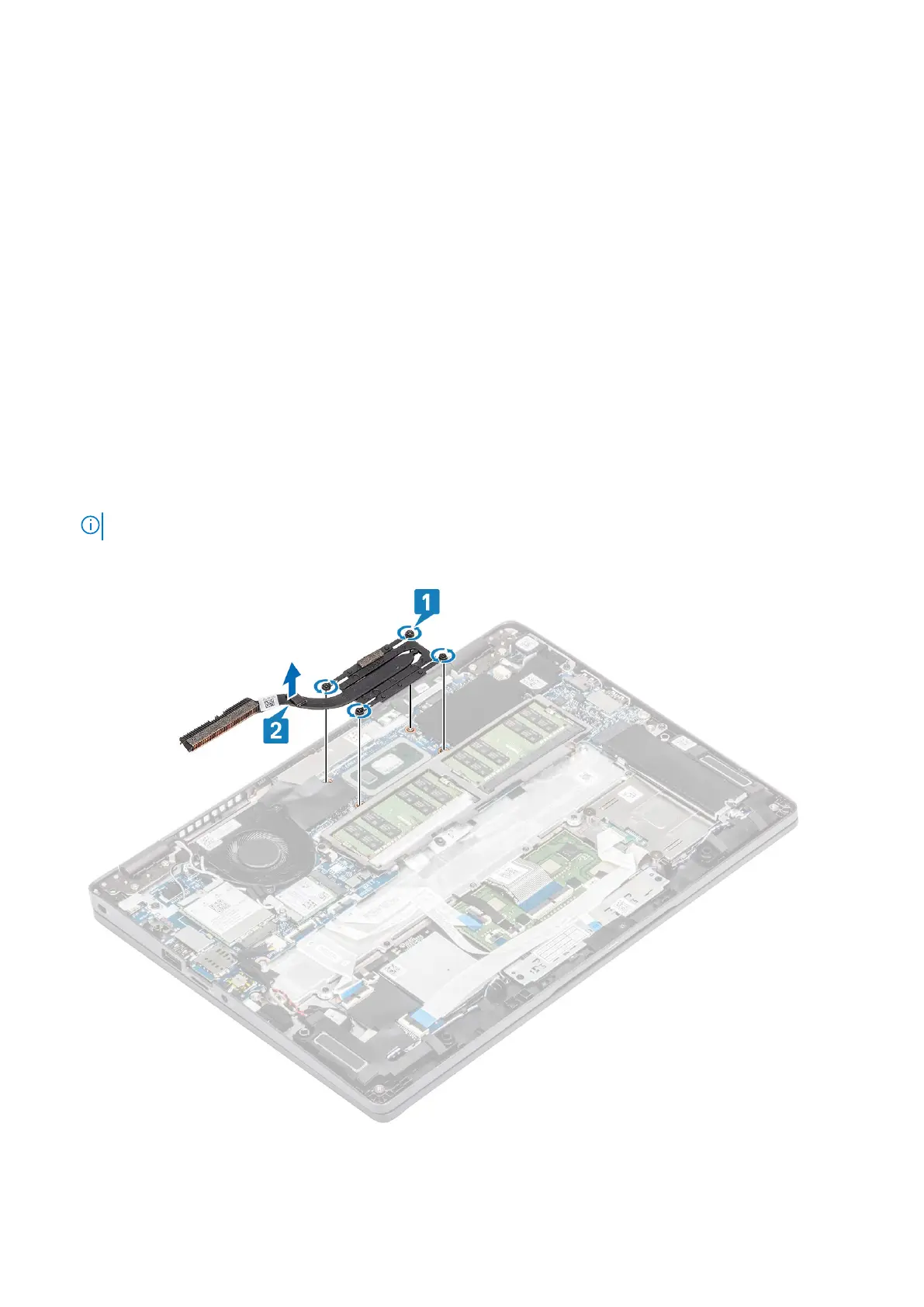

1. Loosen the four captive screws that secure the heatsink to the system board [1].
NOTE: Loosen the screws in the order of the callout numbers [1, 2, 3, 4] as indicated on the heatsink.
2. Lift the heatsink away from the system board [2].
Disassembly and reassembly
49
