Dell Latitude 5310 2-in-1 - Page 51

Steps

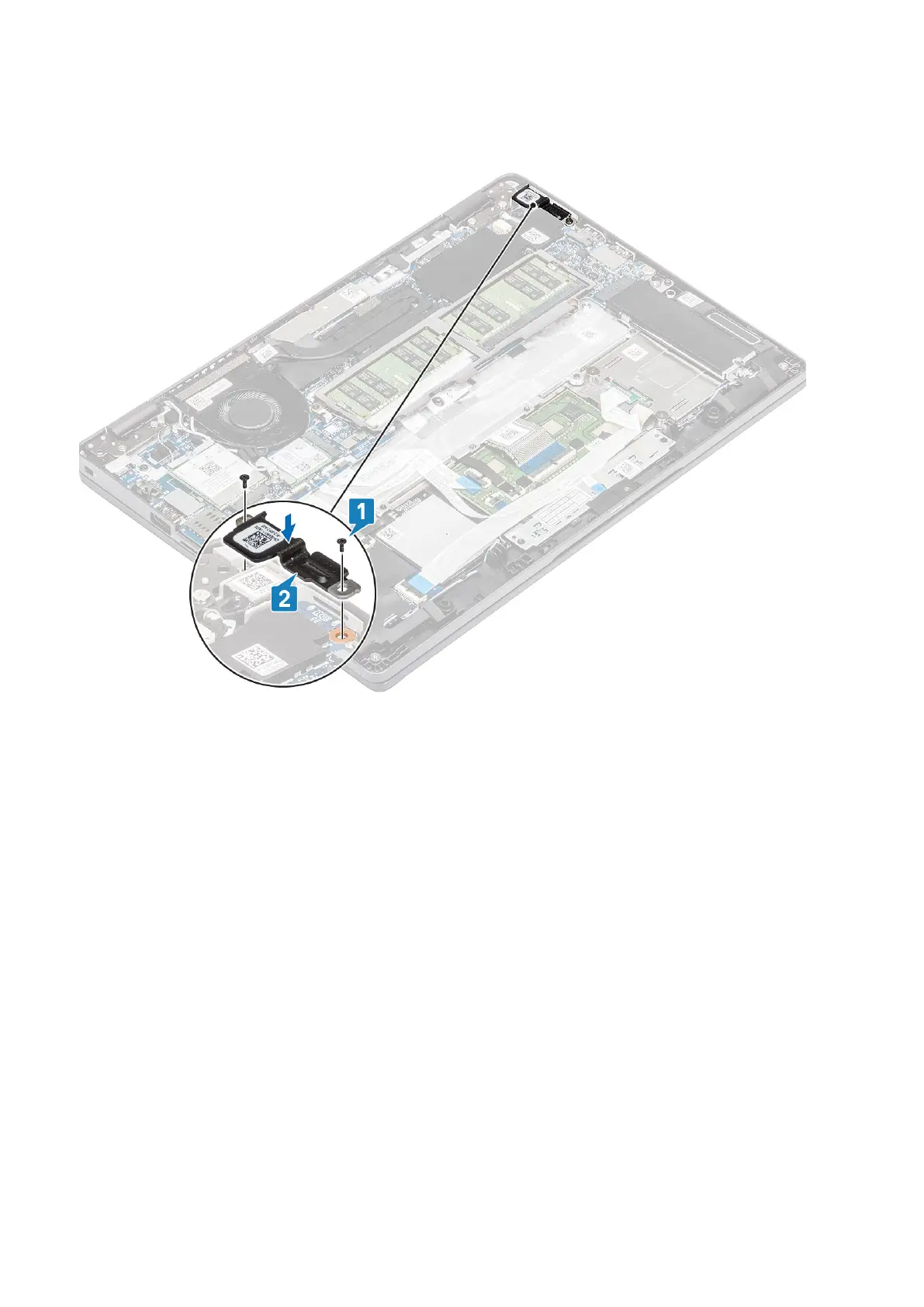

1. Remove the two (M2x4) screws that secure the Type-C bracket to the system board [1].
2. Lift the Type-C bracket away from the computer [2].
3. Press the DC-in port cable and then pull the cable horizontally to disconnect the DC-in port cable from the connector on the system
board [1]. Lift the DC-in port away from the computer [2].
Disassembly and reassembly
51
