g. WWAN card (optional)
h. chassis frame

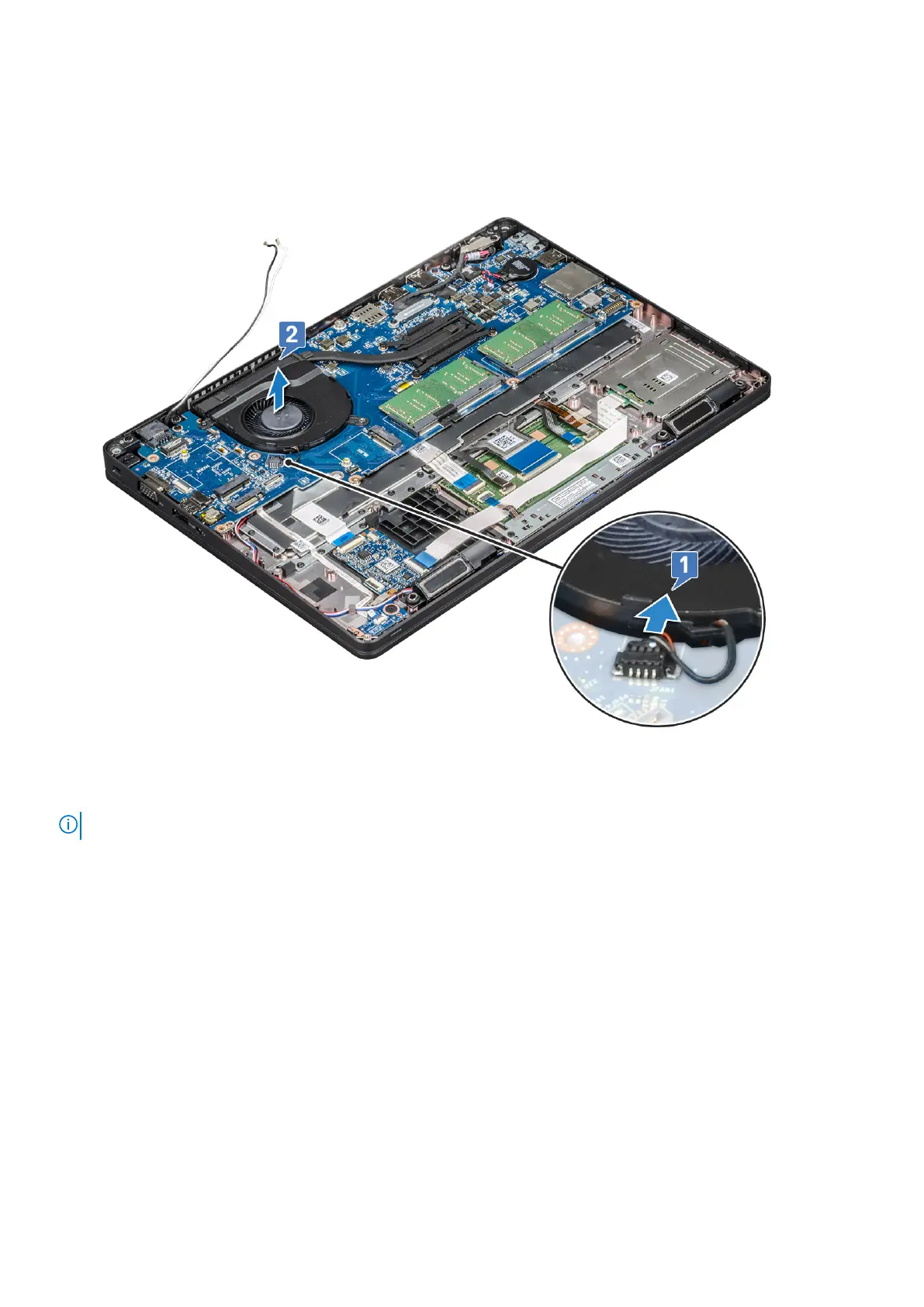

3. To remove the system fan:
a. Disconnect the system fan cable from the connector on the system board [1].
b. Lift the system fan away from the computer [2].
Installing the system fan
NOTE: This procedure is only for the UMA model
1. Place the system fan into the slot on the computer.
2. Connect the system fan cable to the connector on the system board.
3. Install the:
a. chassis frame
b. WWAN card (optional)
c. WLAN card
d. SSD frame
e. SSD card
f. hard drive
g. battery
h. base cover
4. Follow the procedure in After working inside your computer.
