Dell Latitude 5490 User Manual

a. base cover
b. battery
c. WLAN card
d. WWAN card (optional)
e. display hinge cover
f. display assembly
g. display bezel
h. display panel

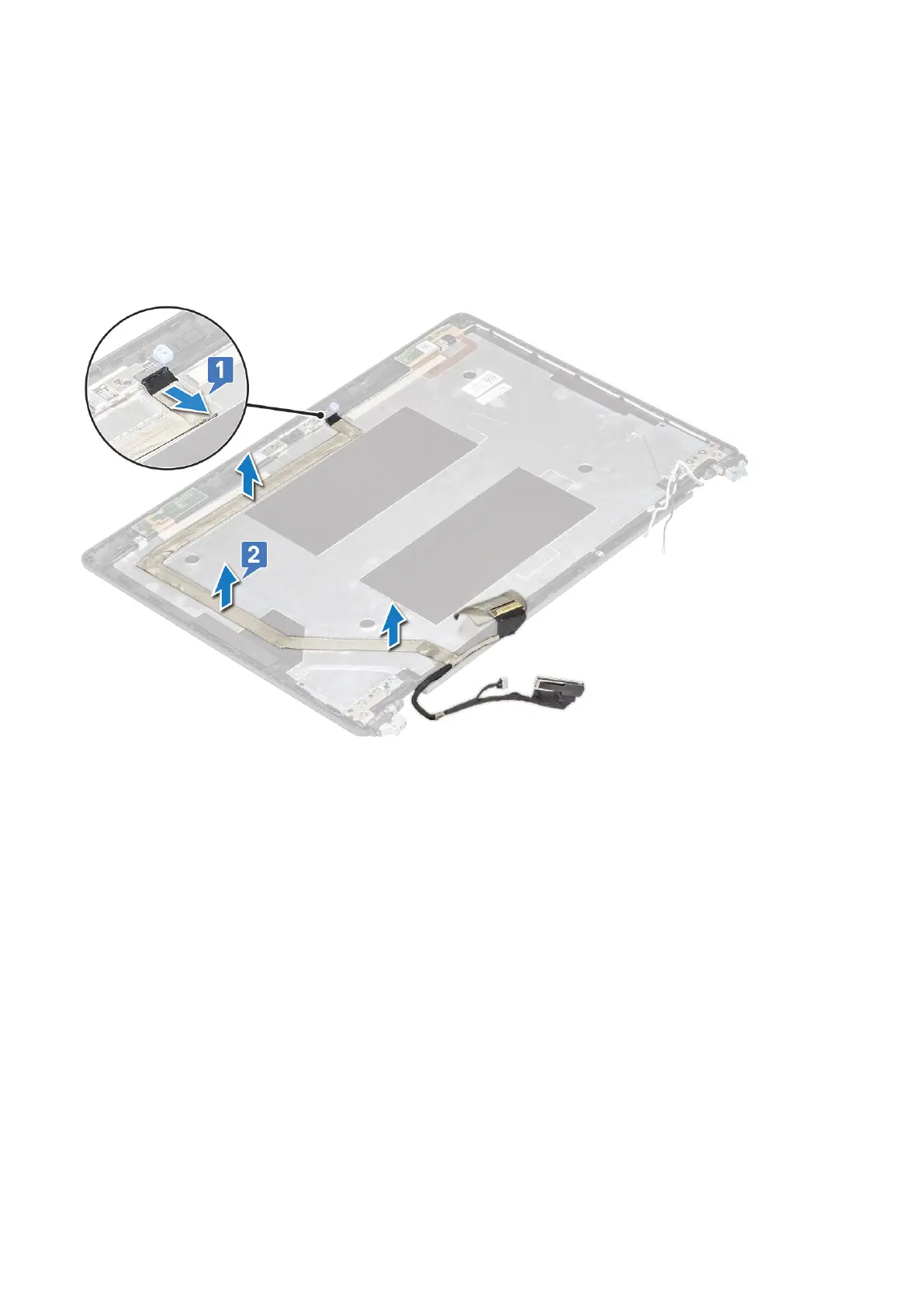

3. Disconnect the camera cable from the connector on the camera module [1].
4. Peel the display cable to release it from adhesive and lift the display cable from the display back cover [2].
Installing display cable
1. Affix the display cable to the display back cover.
2. Connect the camera cable to the connector on camera module.
3. Install the:
a. display panel
b. display bezel
c. display assembly
d. display hinge cover
e. WLAN card
f. WWAN card (optional)
g. battery
h. base cover
4. Follow the procedure in After working inside your computer.
48
Removing and installing components

Dell Latitude 5490 Specifications

General

RAM	Up to 32GB DDR4
Storage	Up to 1TB SSD
Graphics	Intel UHD Graphics 620
Operating System	Windows 10 Pro
Battery	4-cell 68WHr
Processor	i5-8250U, i7-8650U
Display	14-inch FHD (1920 x 1080) Anti-Glare
Weight	Starting at 1.6 kg (3.52 lbs)
Ports	USB 3.1, USB Type-C, HDMI, RJ-45, SD Card Reader
Wireless	Intel Dual Band Wireless-AC 8265, Bluetooth 4.2
