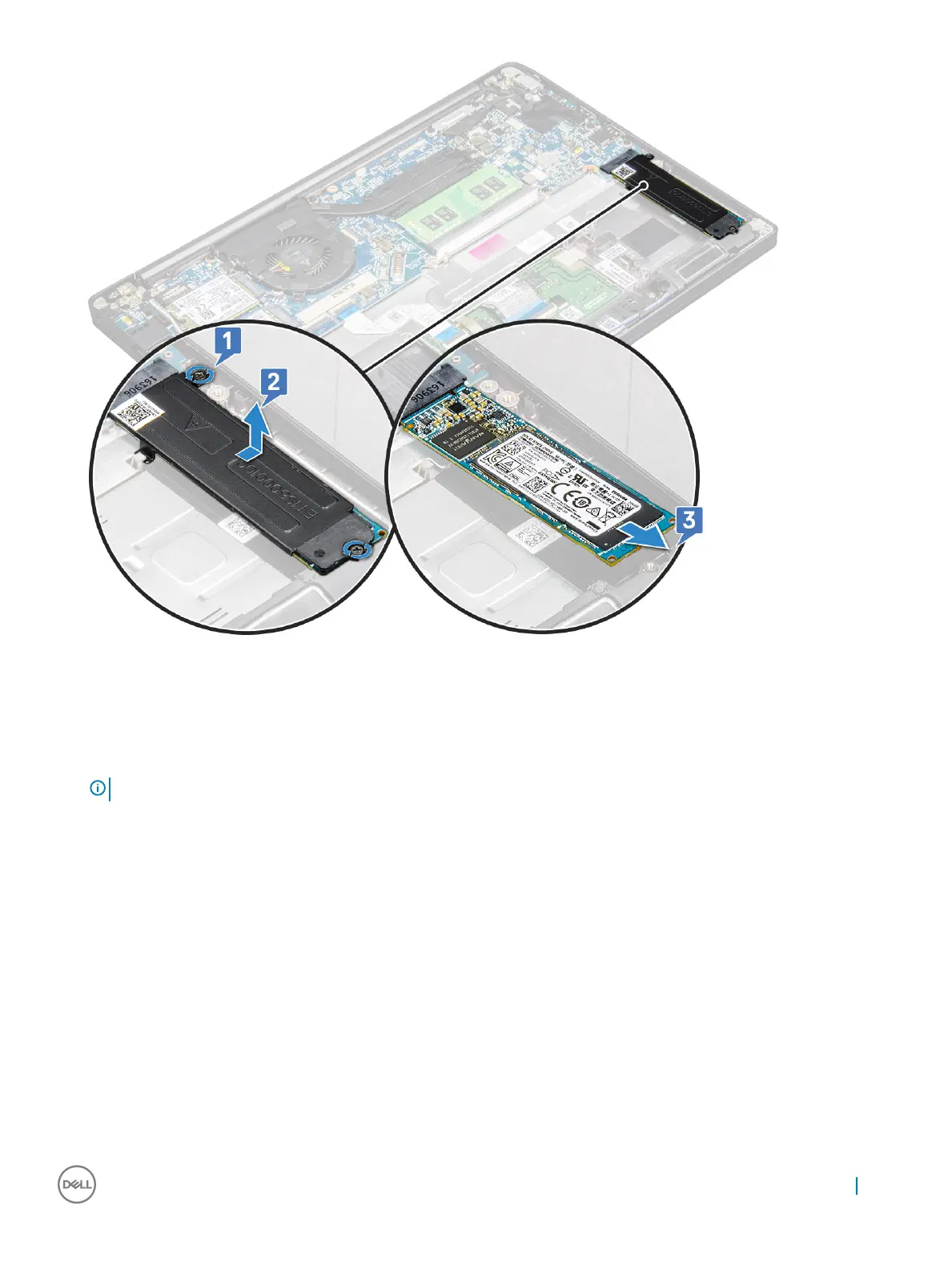

Installing PCIe SSD
1 Insert the PCIe SSD card into the connector.
2 Install the SSD bracket over the PCIe SSD card.
NOTE
: When installing the SSD bracket, ensure that the tab on the bracket is held securely with the tab on the palm rest.
3 Tighten the two (M2.0 x 3.0) screws to secure the PCIe SSD card to the SSD bracket.
4 Install the following components:
• battery
• base cover
5 Follow the procedure in After working inside your computer.
Speaker
Removing speaker module
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a base cover
b battery
Removing and installing components
13
