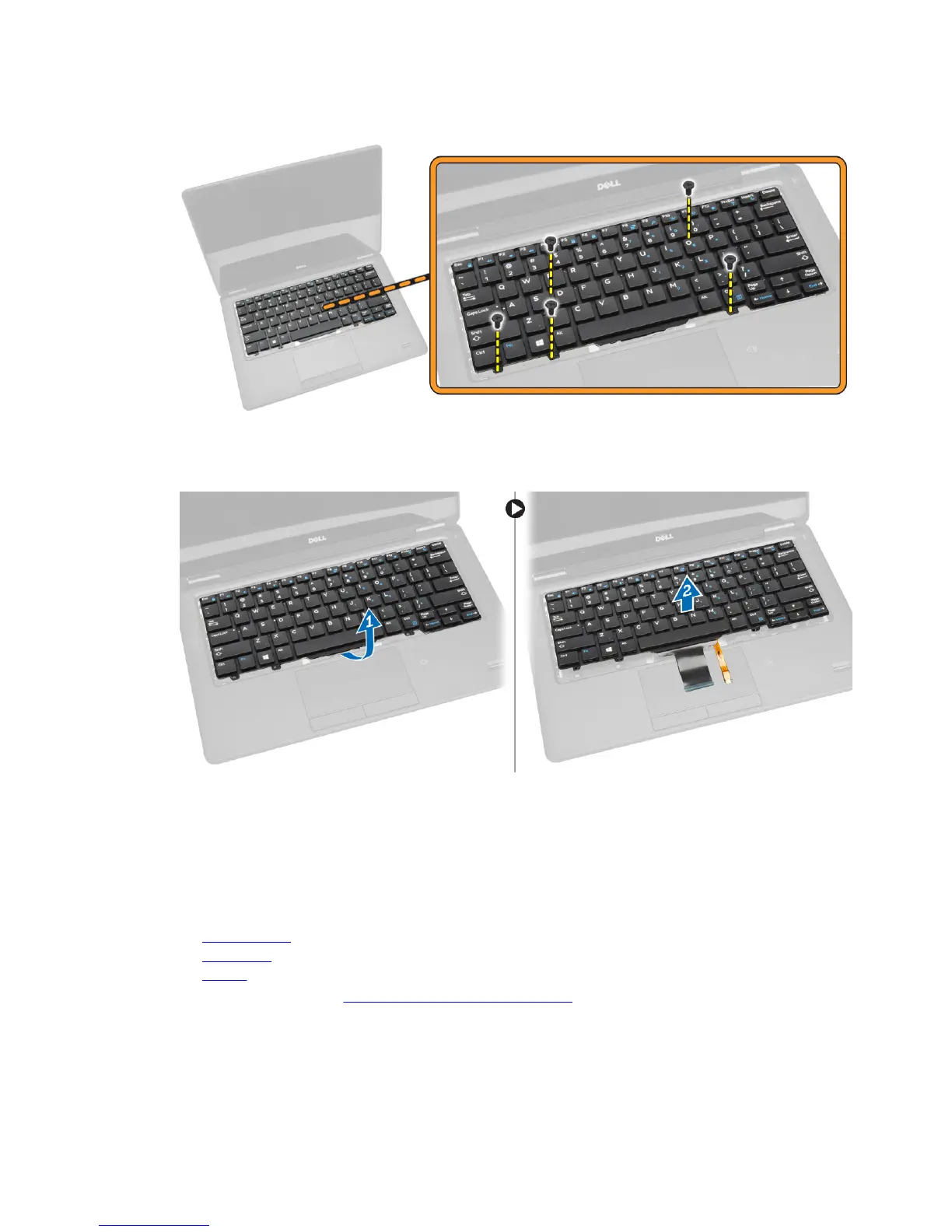

4. Flip the computer and remove the screws that secure the keyboard to the computer.
5. Perform the following steps as shown in the illustration:
a. Slide the keyboard from the computer [1].
b. Lift the keyboard from the computer [2].
Installing the Keyboard
1. Slide the keyboard into its compartment and ensure that it clicks into place.
2. Tighten the screws that secure the keyboard to the computer.
3. Flip the computer connect the keyboard cable to the computer.
4. Install:
a. keyboard trim
b. base cover
c. battery
5. Follow the procedures in After Working Inside Your computer.
15
