Dell Latitude E7250 - Removing the Speakers

Removing the Speakers
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove:
a. battery
b. base cover
c. keyboard trim
d. keyboard
e. SSD card
f. palmrest
g. SIM board

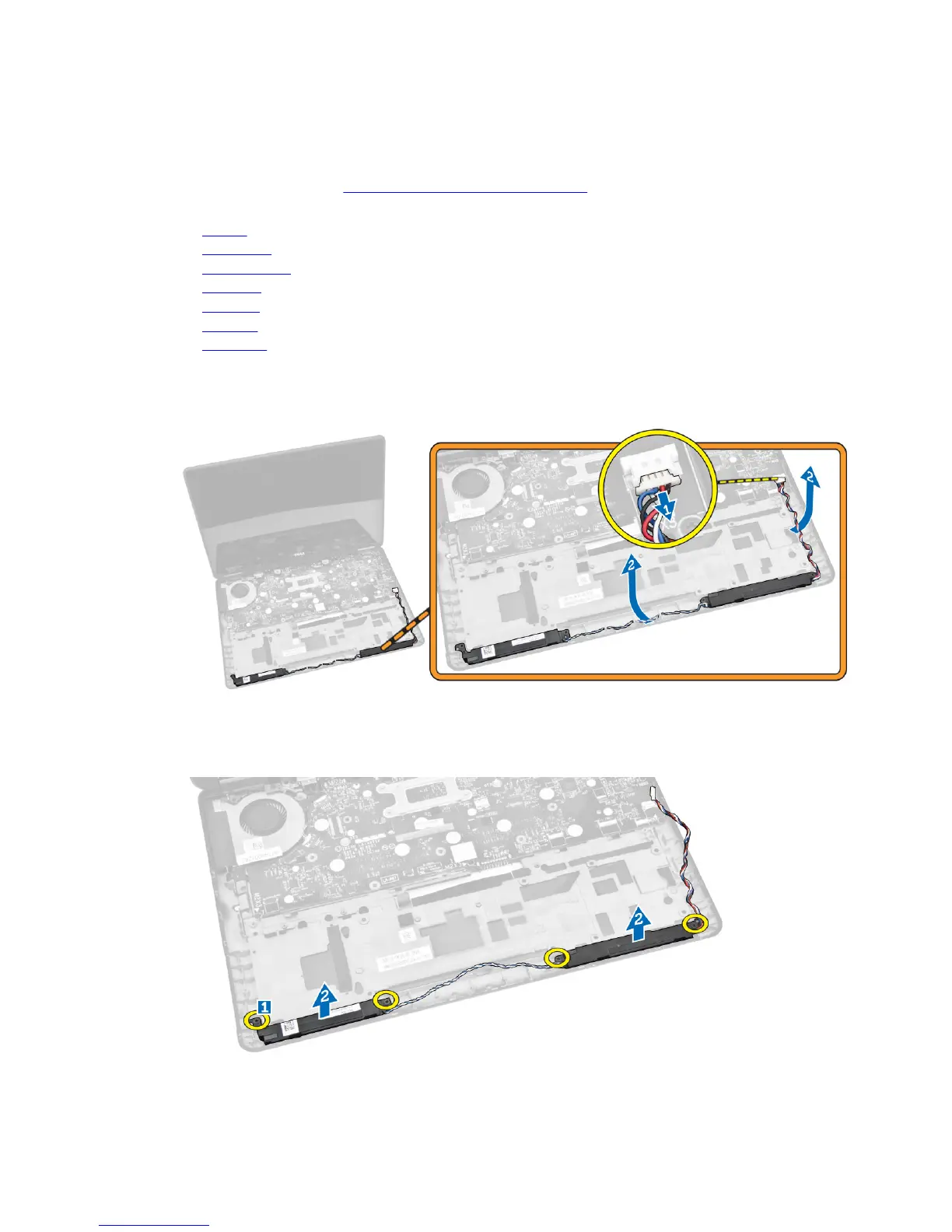

3. Perform the following steps as shown in the illustration:
a. Disconnect the speaker cable [1].
b. Unroute the speaker cable from the system board [2].
4. Perform the following steps as shown in the illustration:
a. Remove the screws that secure the speakers to the computer [1].
b. Lift the speakers from the computer [2].
