Dell Latitude E7250 - Page 25

i. speaker
j. hinge cover
k. display assembly

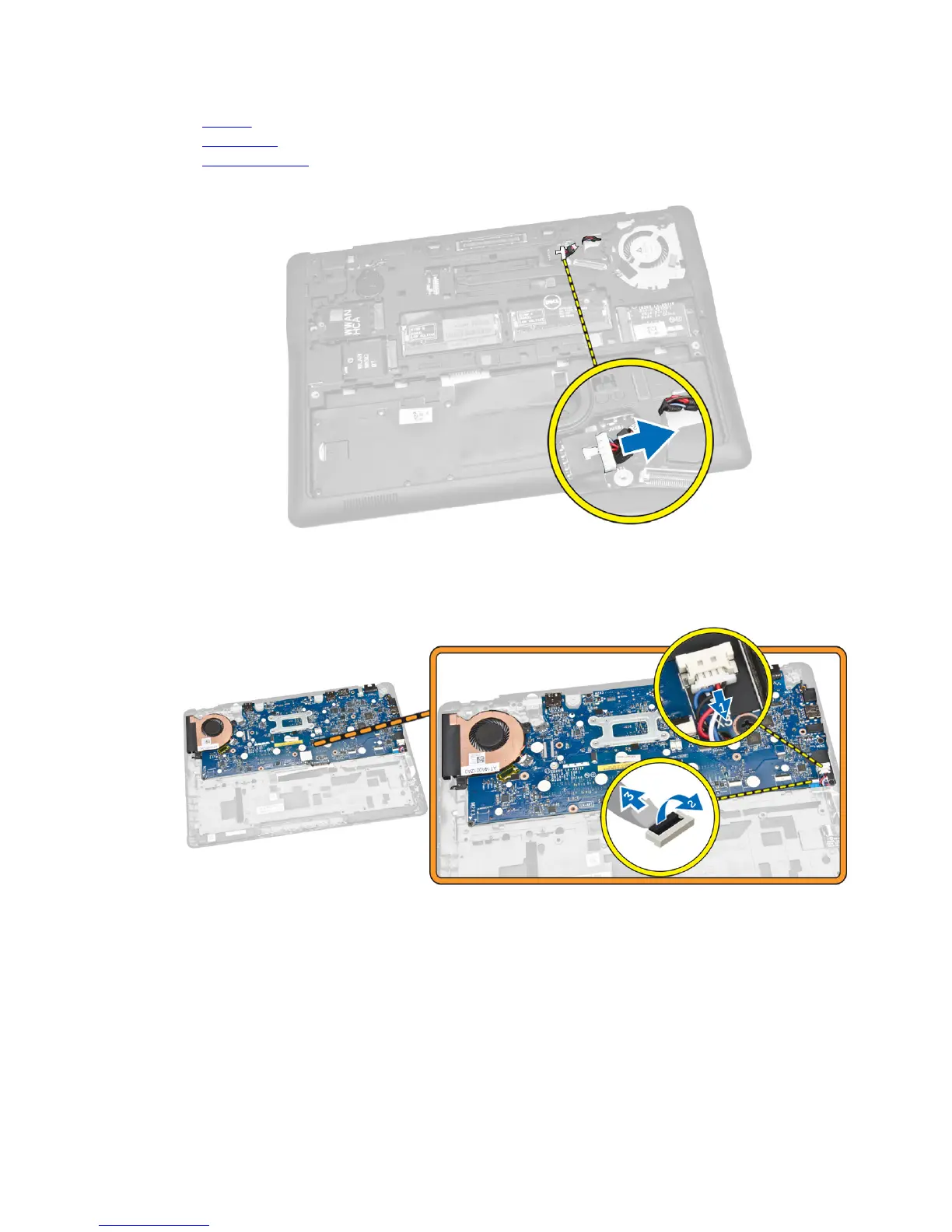

3. Disconnect the power cable from the computer.
4. Perform the following steps as shown in the illustration:
a. Disconnect the speaker cable [1].
b. Lift the tab that secures SIM board cable [2].
c. Disconnect the SIM board cable from system board [3].
5. Perform the following steps as shown in the illustration:
a. Remove the screws that secure the system board to computer chassis [1].
b. Lift the system board from the computer [2].
25
