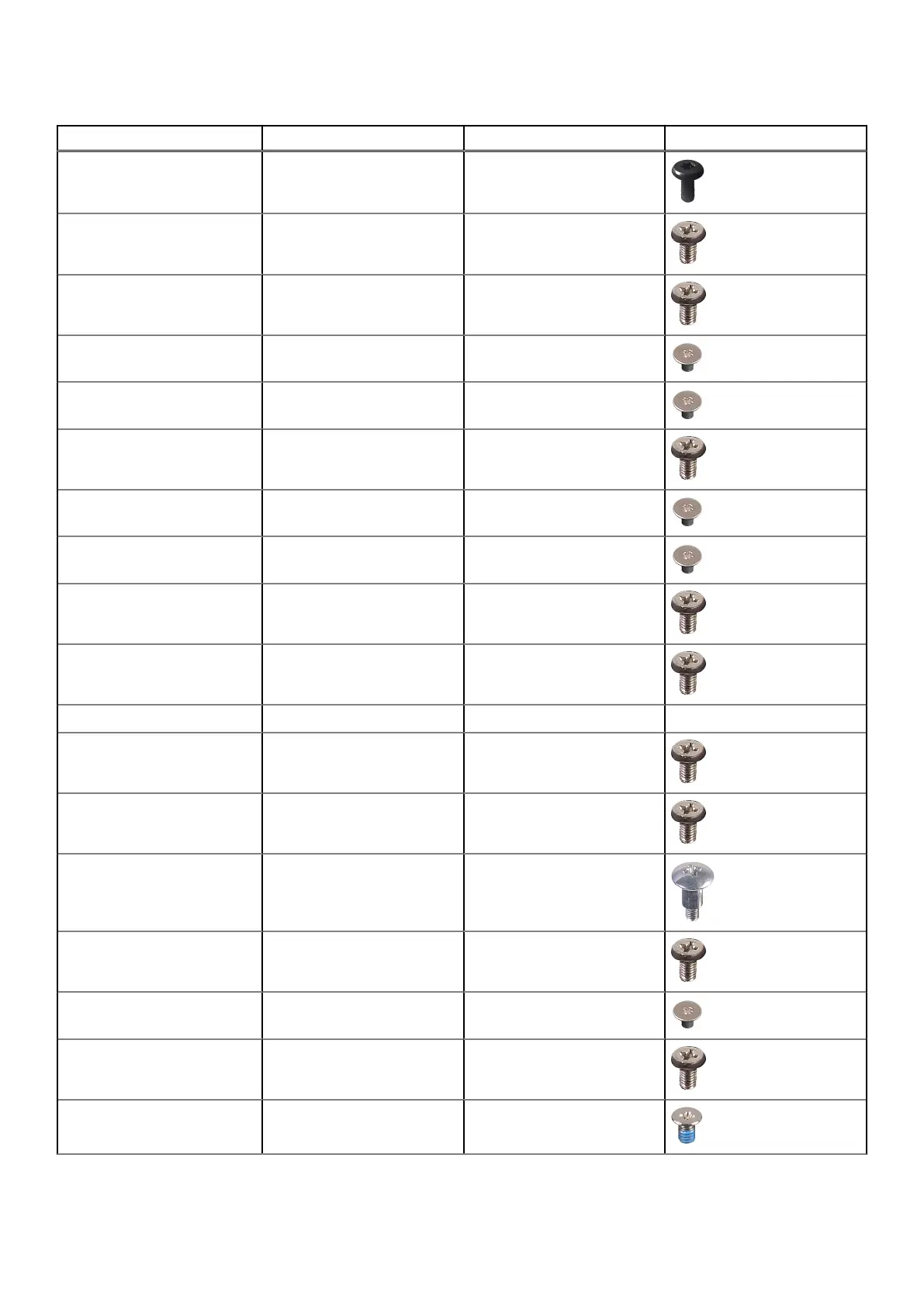

Table 1. OptiPlex 3280 All-in-One screw list
Component Screw type Quantity Screw image
Cable cover—optional M3x9 1
System-board shield M3x5 5
Bottom cover M3x5 4
M.2 2230 solid-state drive M2x2.5 1
M.2 2280 solid-state drive/
Intel Optane memory
M2x2.5 1
System fan M3x5 3
Wireless-card shield M2x2.5 2
Wireless card M2x2.5 1
Camera assembly M3x5 2
Camera door M3x5 2
Heat sink—UMA Captive screws 5
Rear-I/O bracket M3x5 4
System board M3x5 7
Speakers M3 4+7.1xZN 4
Power-button board M3x5 1
Microphones M2x2.5 2
Side I/O-board shield M3x5 2
Side-I/O board M2.5x3.5 2
