Dell OptiPlex 3280 User Manual

Installing the hard drive
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

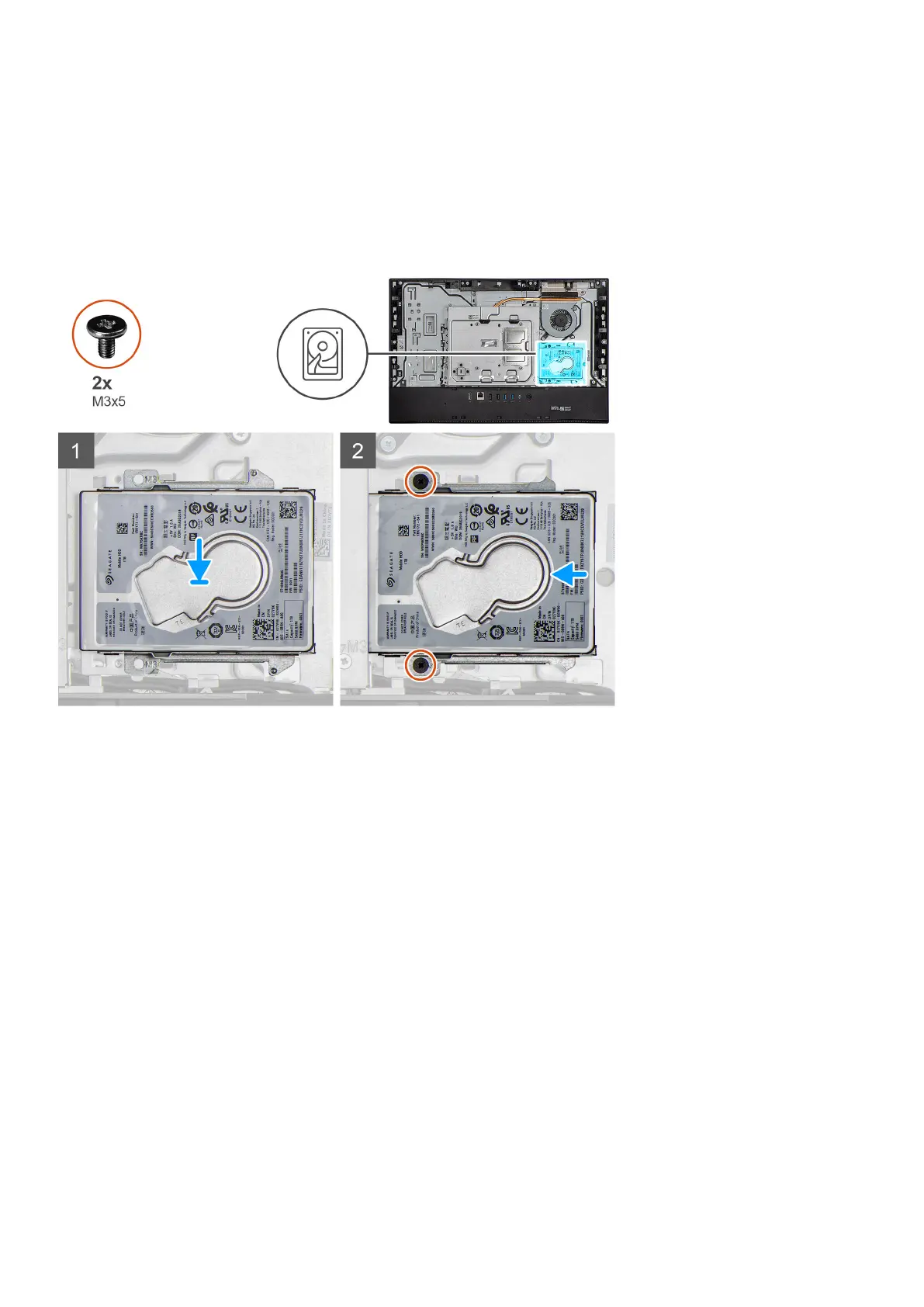

The following image indicates the location of the hard drive and provides a visual representation of the installation procedure.
Steps
1. Slide the hard-drive assembly into the slot on the display-assembly base.
2. Replace the two screws (M3x5) that secures the hard-drive assembly to the display-assembly base.
Next steps
1. Install the cable cover (optional).
2. Install the back cover.
3. Install the stand.
4. Follow the procedure in After working inside your computer.
Memory modules
Removing the memory modules
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the stand.
3. Remove the cable cover (optional).
4. Remove the back cover.
26
Removing and installing components

Dell OptiPlex 3280 Specifications

General

Operating System	Windows 10 Pro
Form Factor	All-in-One
Processor	10th Gen Intel Core i3/i5/i7
Memory	Up to 64GB DDR4
Storage	Up to 1TB SSD
Display	21.5-inch FHD (1920x1080)
Graphics	Integrated Intel UHD Graphics
Ports	USB 2.0, HDMI, DisplayPort, RJ-45, audio jack
Networking	Ethernet LAN 10/100/1000
