Steps

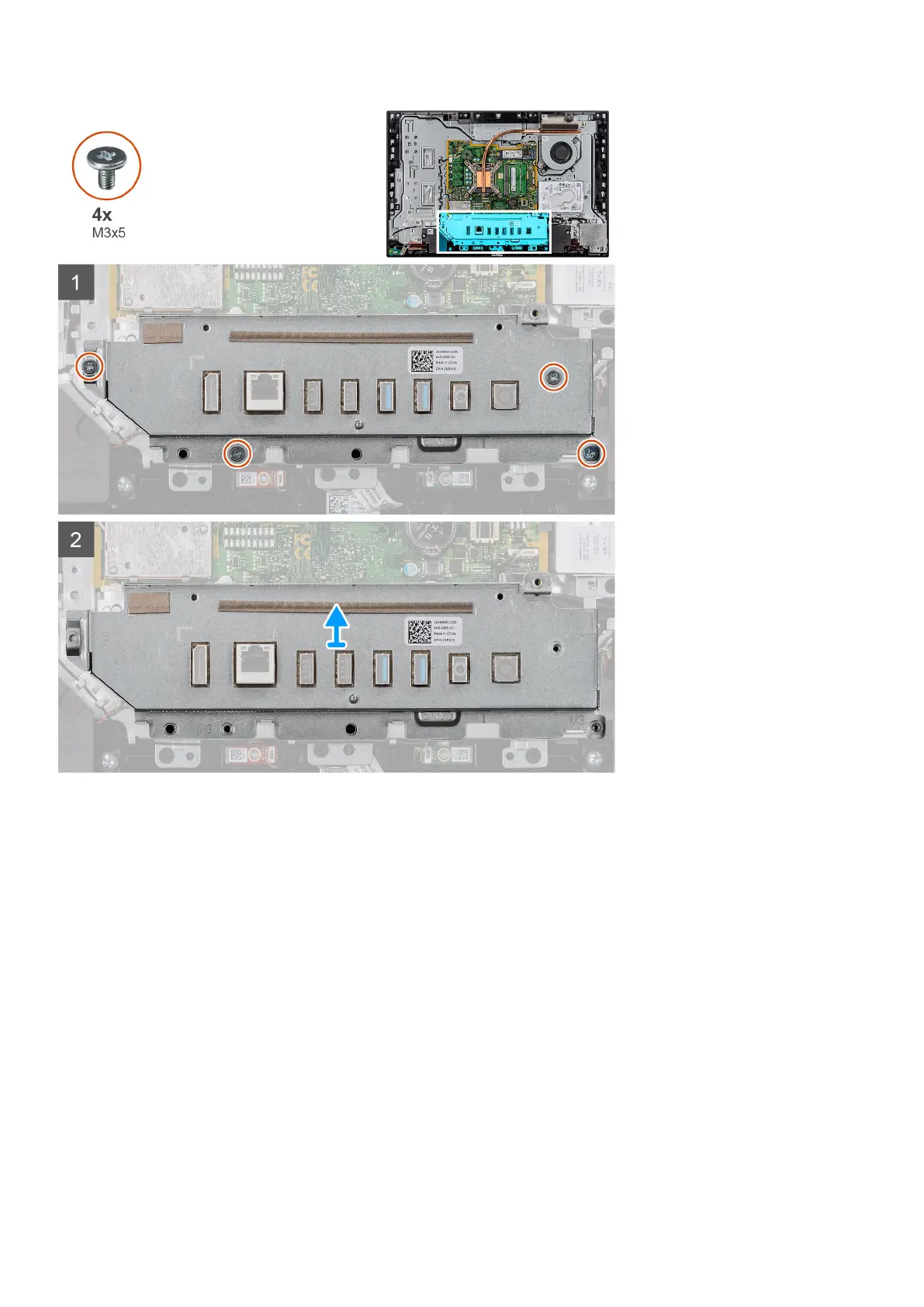

1. Remove the four screws (M3x5) that secure the rear-I/O bracket to the display-assembly base.
2. Lift the rear-I/O bracket off the display-assembly base.
Installing the rear-I/O bracket
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the rear-I/O bracket and provides a visual representation of the installation
procedure.
50
Removing and installing components
