5. Align the screw holes on the camera door with the screw holes on the display-assembly base.
6. Replace the two screws (M3x5) to secure the camera assembly door to the display-assembly base.
Next steps
1. Install the system-board shield.
2. Install the back cover
3. Install the cable cover (optional).
4. Install the stand.
5. Follow the procedure in After working inside your computer.
Bottom cover
Removing the bottom cover
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the stand.
3. Remove the cable cover (optional).
4. Remove the back cover.
5. Remove the system-board shield
About this task

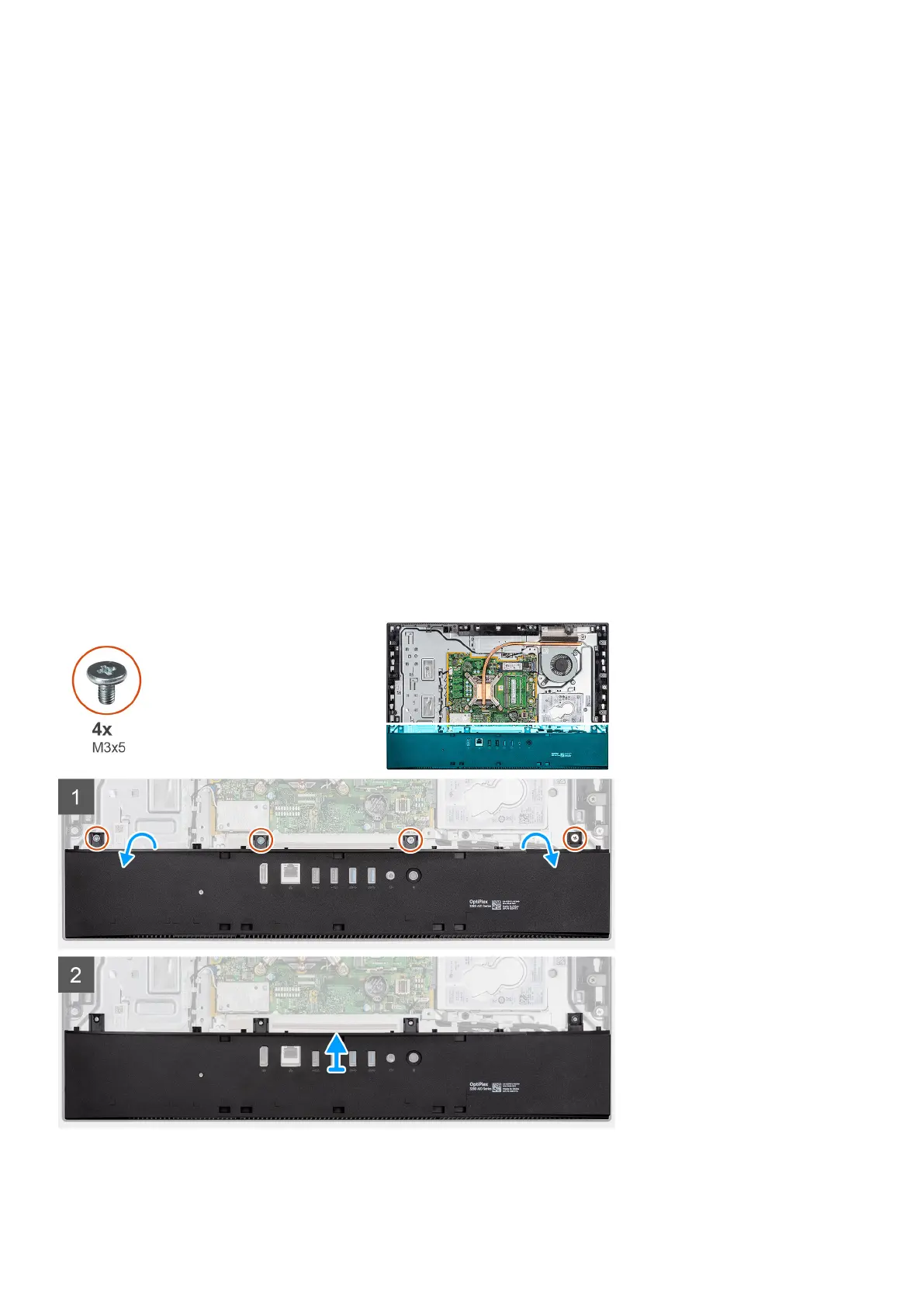

The following image indicates the location of the bottom cover and provides a visual representation of the removal procedure.
Removing and installing components
43
