4. Route the display back-light, touch screen and display cable through the slots on the display assembly base.
5. Lift the display panel up from the middle frame and display-assembly base.
Installing the display panel
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

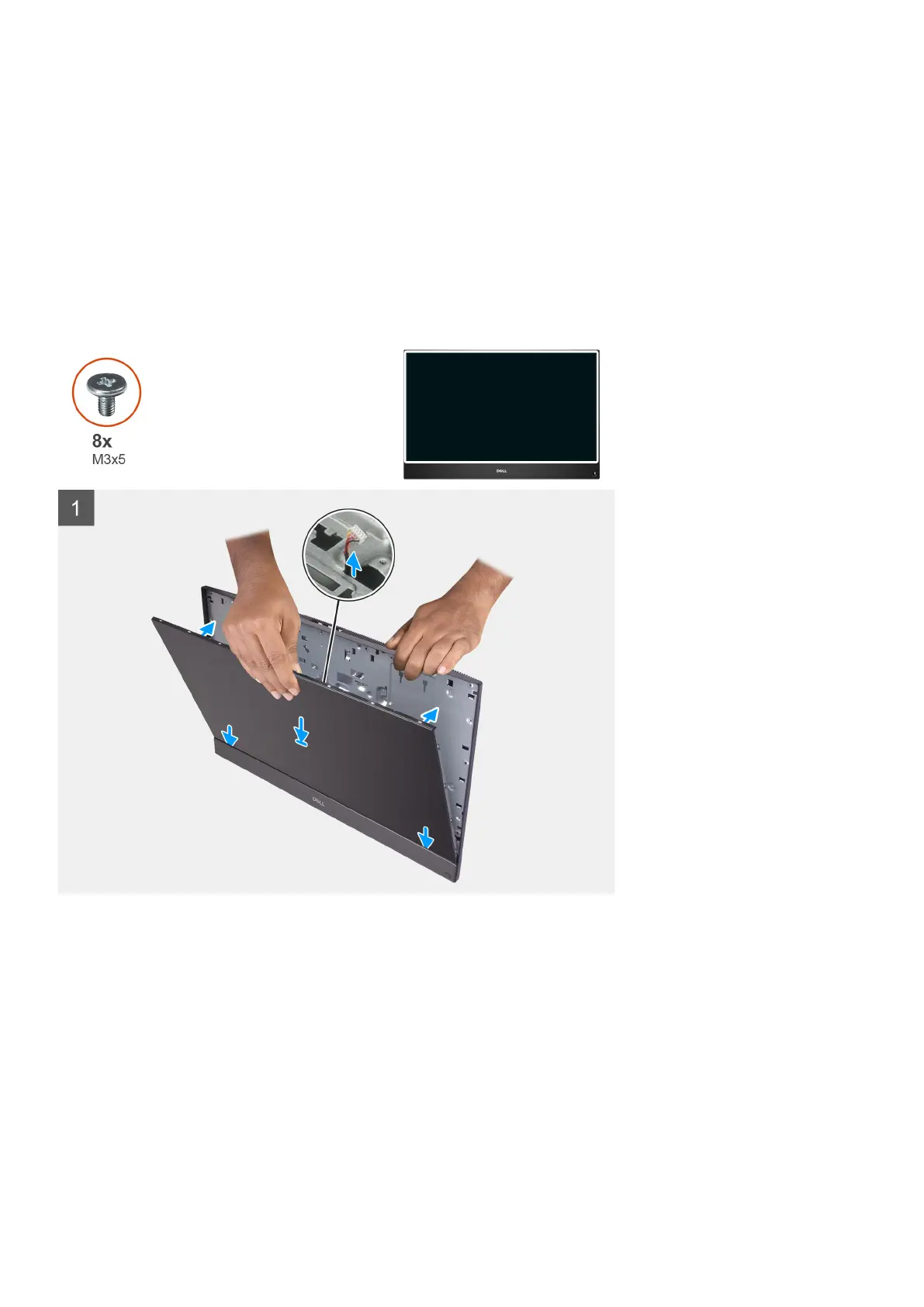

The following image indicates the location of display panel and provides a visual representation of the installation procedure.
Removing and installing components 73
