Dell OptiPlex 3280 - Page 72

Steps

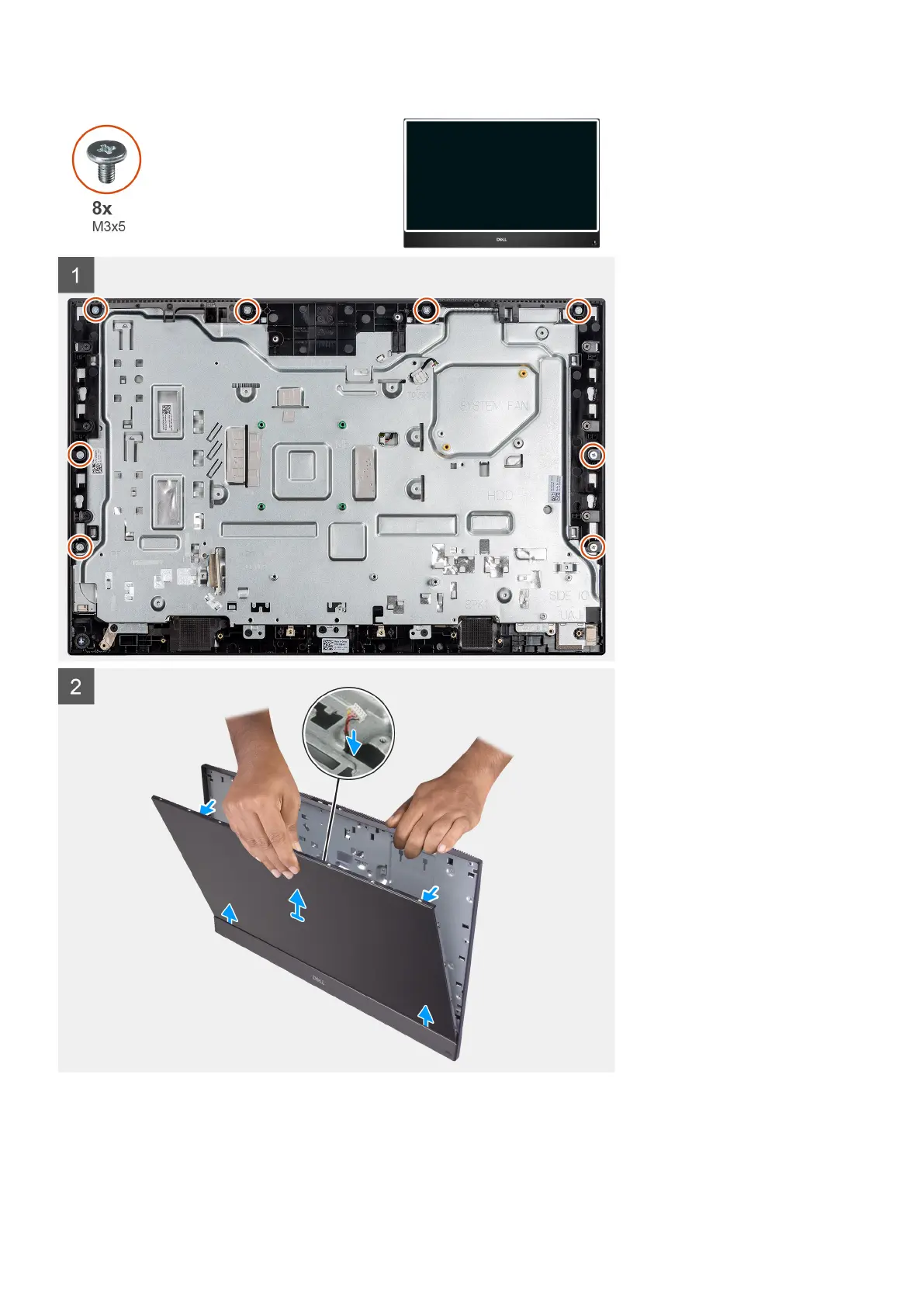

1. Remove the 8 screws (M3x5) that secure the middle frame and display-assembly base to the display panel.
2. Place the system in an upright position.
3. Holding the top corner, release the display panel away from the middle frame and display-assembly base.
72
Removing and installing components
