Steps
1. Disconnect the speaker cable from the connector on the system board.
2. Remove the four screws (M3 4+7.1xZN) that secure the speakers to the display-assembly base.
3. Unroute the speaker cable from the routing guides on the display-assembly base.
4. Lift the speakers along with the cable off the display-assembly base.
Installing the speakers
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

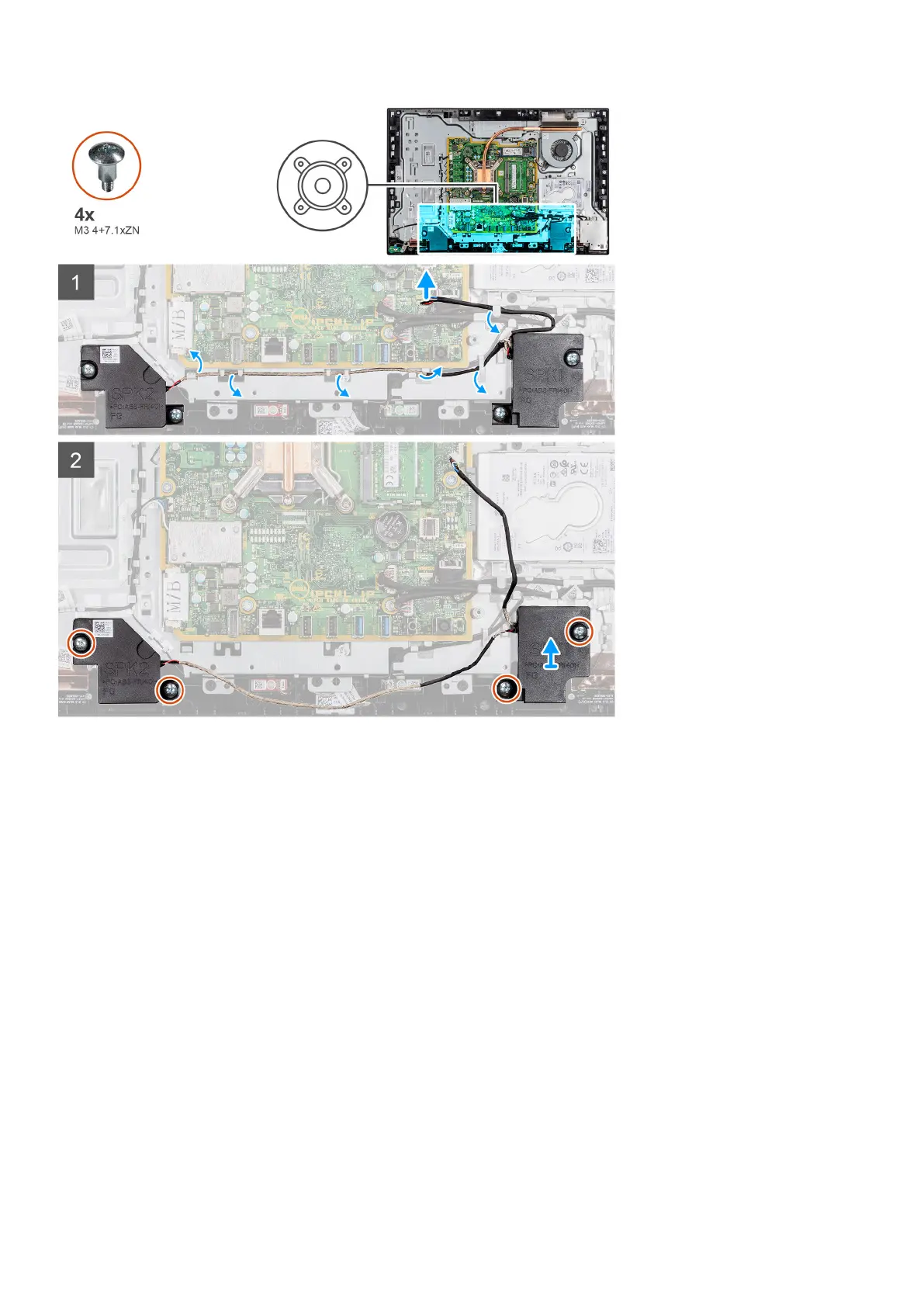

The following image indicates the location of the speakers and provides a visual representation of the installation procedure.
