Steps

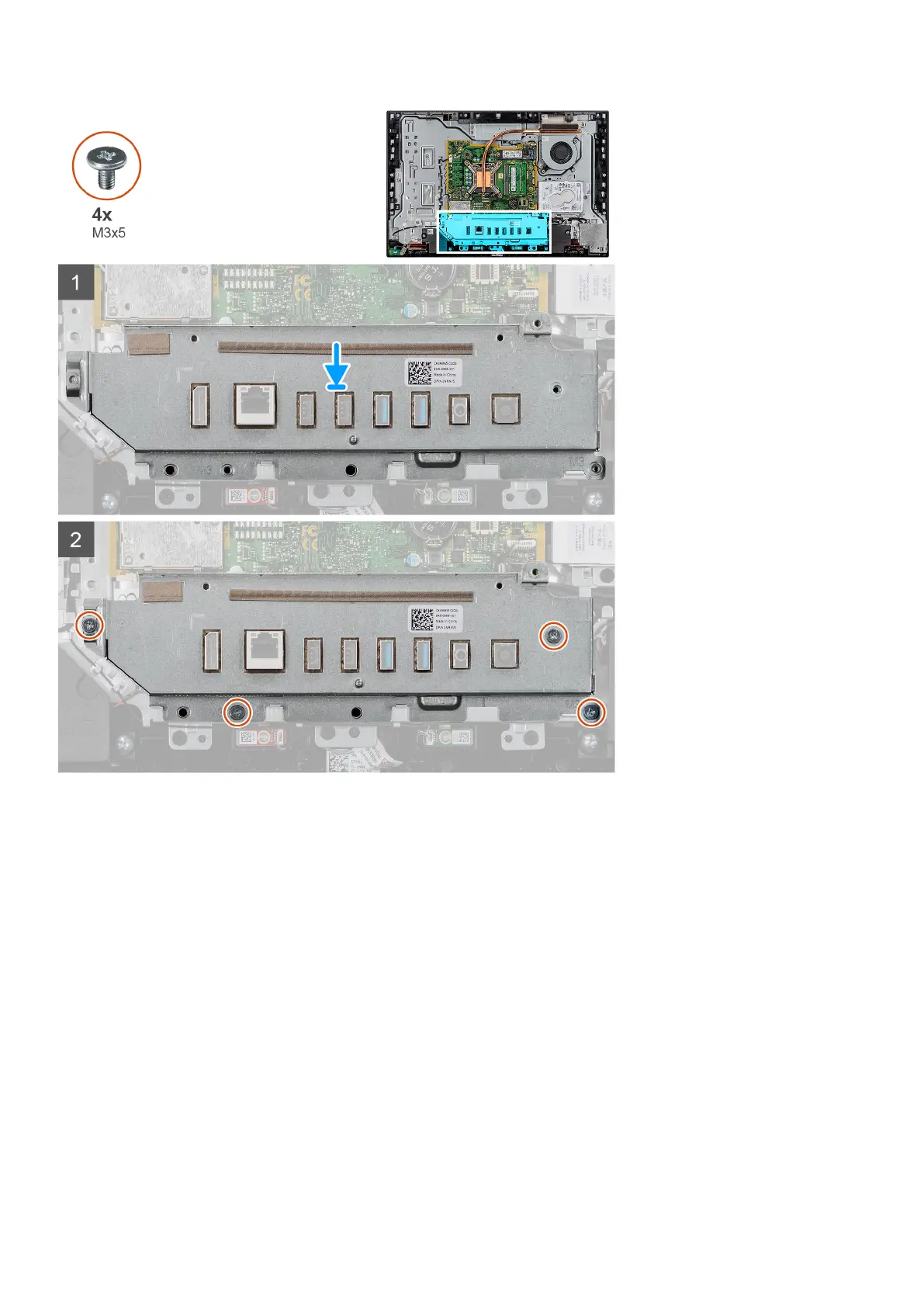

1. Align the screw holes on the rear-I/O bracket with the screw holes on the display-assembly base.
2. Replace the four screws (M3x5) that secure the rear-I/O bracket to the display-assembly base.
Next steps
1. Install the bottom cover.
2. Install the system-board shield.
3. Install the back cover
4. Install the cable cover (optional).
5. Install the stand.
6. Follow the procedure in After working inside your computer.
Removing and installing components
51
