1. Processor 2. Camera cable connector
3. Touch-screen cable connector 4. M.2 2230/2280 solid-state drive/Intel Optane PCIe
connector
5. System-fan cable connector 6. Memory module
7. eSPI Debug Card cable connector 8. EC debug connector
9. Hard-drive connector 10. Coin-cell battery
11. Microphone-module cable connector 12. SIO-signal cable connector
13. Speaker cable connector 14. Audio-board cable connector
15. SIO-power cable connector 16. Display cable connector
17. M.2 WLAN connector 18. Power-button cable connector
19. Display back-light cable connector

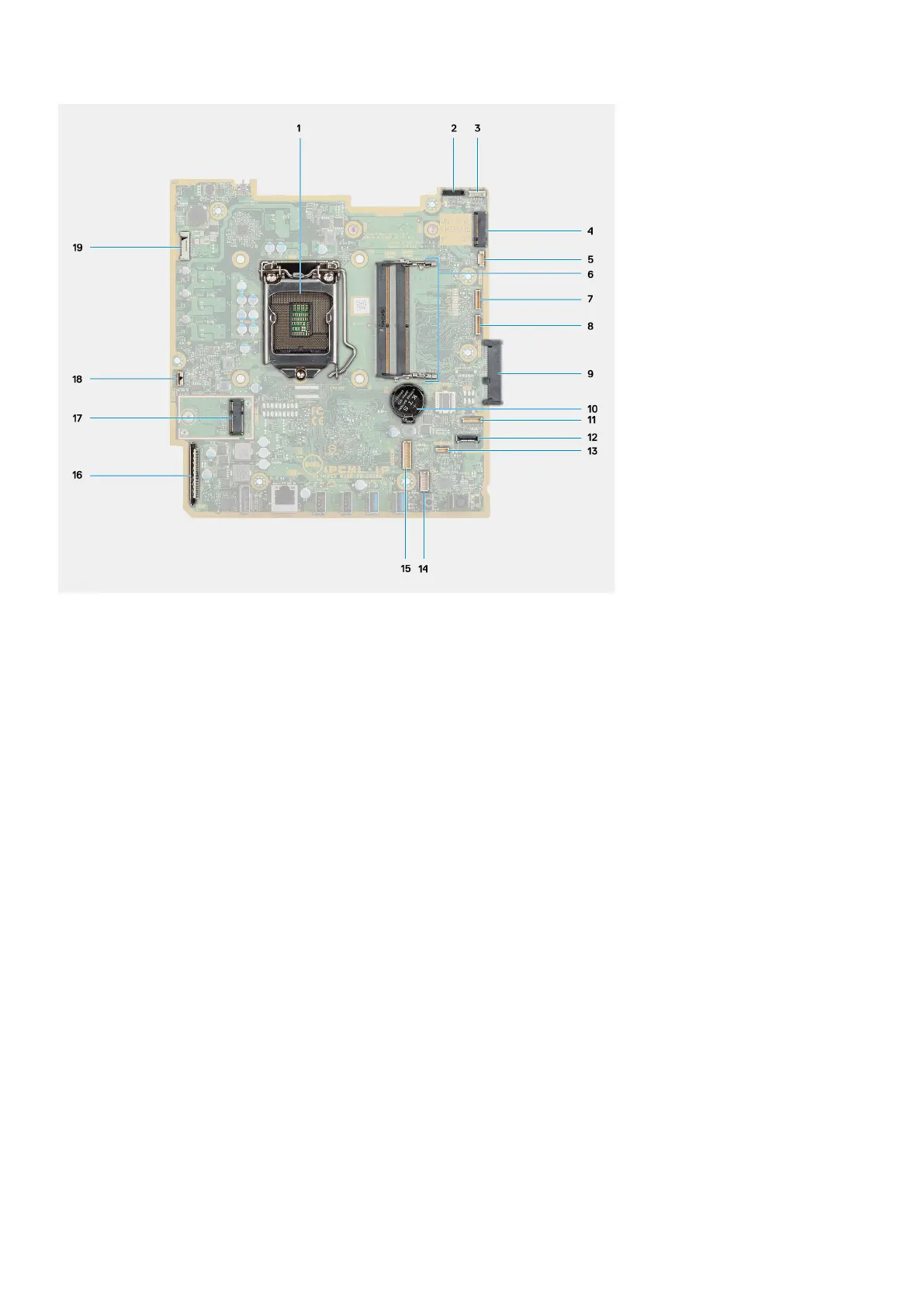

The following image indicates the location of system board and provides a visual representation of the removal procedure.
Removing and installing components
53
