17. M.2 WLAN connector 18. Power-button cable connector
19. Display back-light cable connector

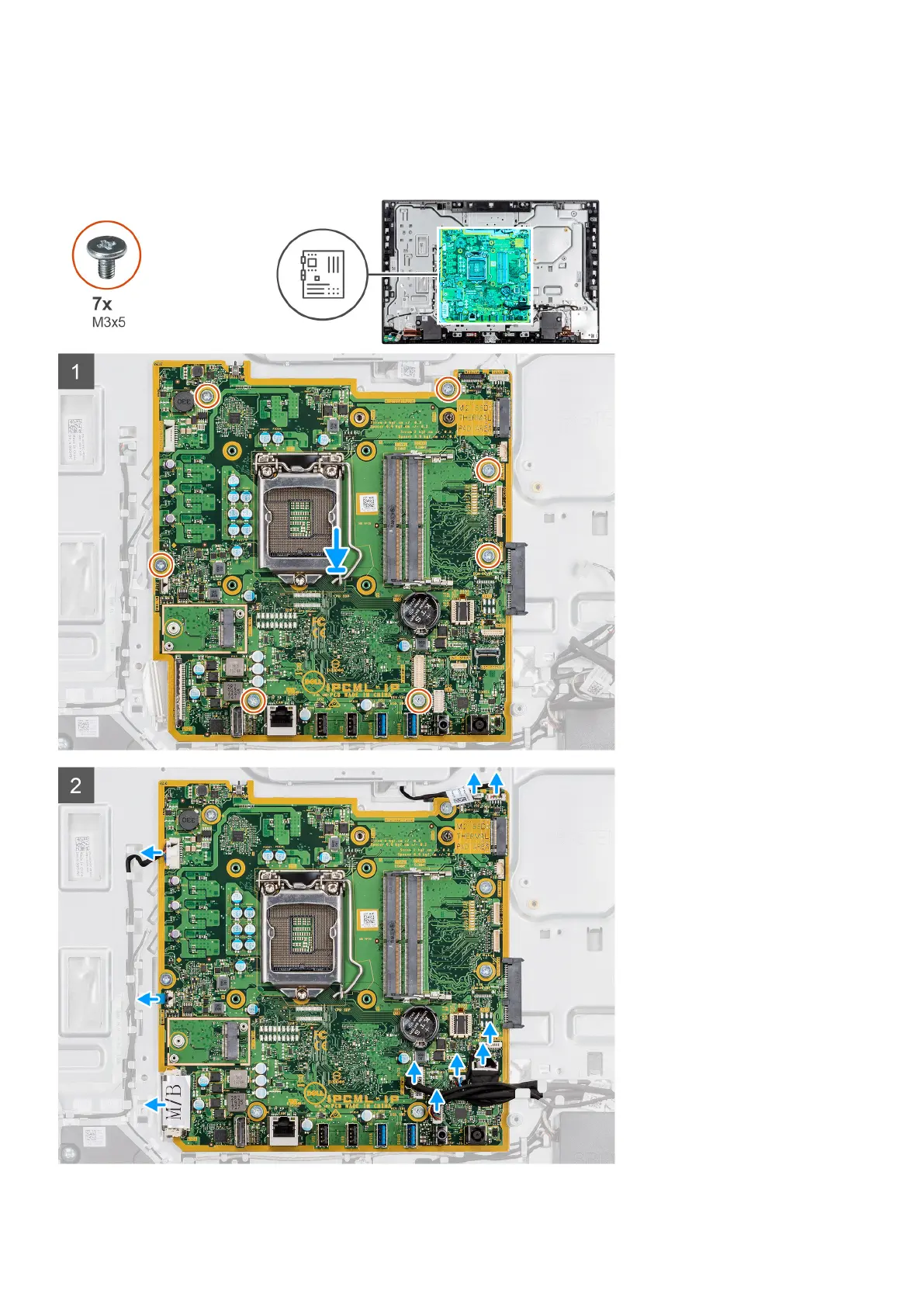

The following image indicates the location of system board and provides a visual representation of the installation procedure.
56 Removing and installing components
