Removing the Dell Ultra Speed Drive Gen4 card
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
About this task

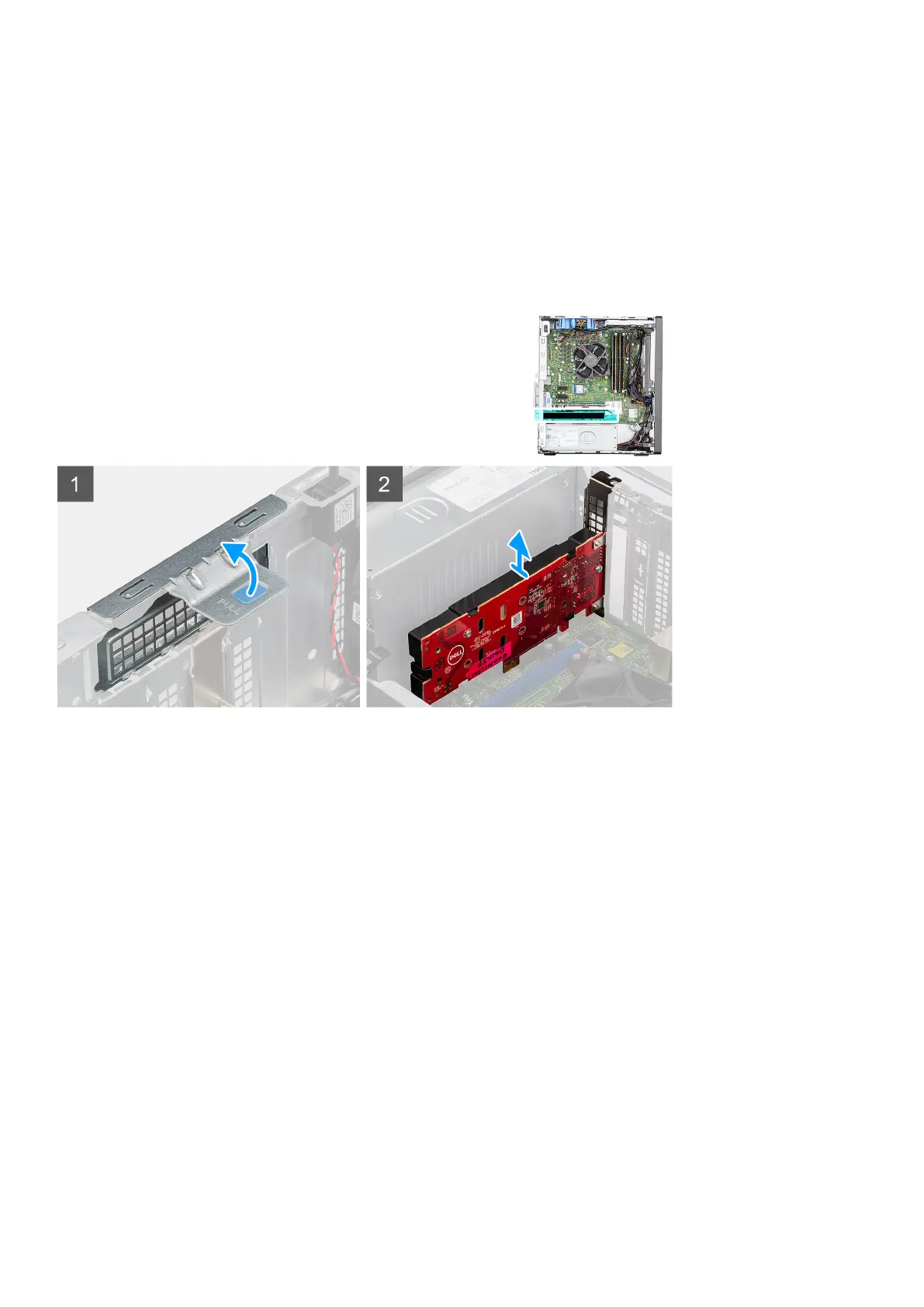

The following images indicate the location of the Dell Ultra Speed Drive Gen4 card and provide a visual representation of the
removal procedure.
Steps
1. Using the tab, lift and open the PCIe door.
2. Press down on the release tab and lift the Dell Ultra Speed Drive Gen4 card off the system board.
Installing the Dell Ultra Speed Drive Gen4 card
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the Dell Ultra Speed Drive Gen4 card and provides a visual representation of the
installation procedure.
38
Removing and installing components
