Steps
1. Lift the pull tab to open the PCIe door.
2. Disconnect the communication card cable from its connector on the system board.
3. Lift and remove the communication card from the system board.
4. Close the PCIe door.
Installing the communication card
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

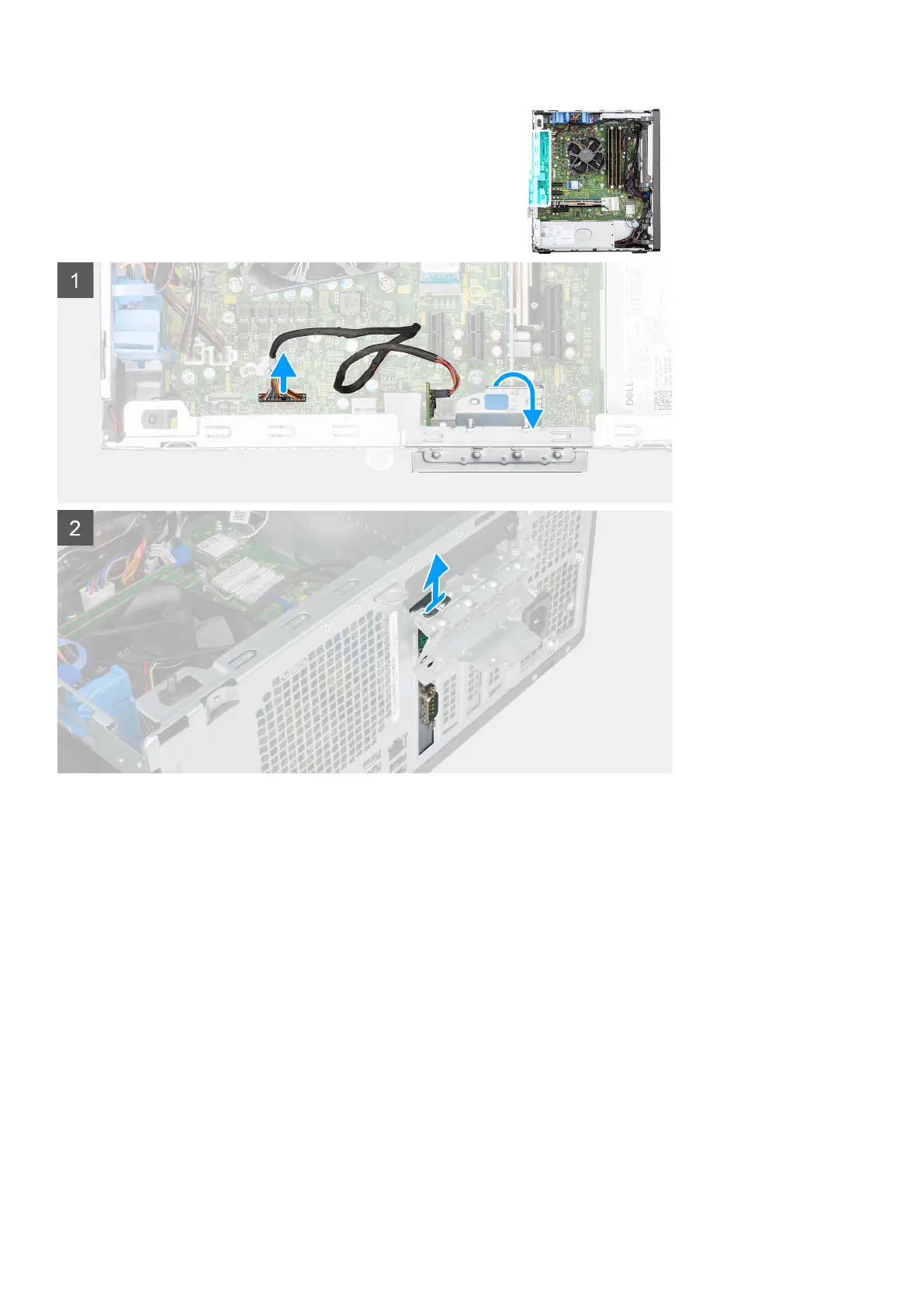

The following image indicates the location of the communication card and provides a visual representation of the installation
procedure.
