Processor fan and heat-sink assembly
Removing the processor fan and heat-sink assembly
Prerequisites
1. Follow the procedure in before working inside your computer.
WARNING: The heat sink may become hot during normal operation. Allow sufficient time for the heat sink to
cool before you touch it.
CAUTION: For maximum cooling of the processor, do not touch the heat transfer areas on the heat sink. The
oils in your skin can reduce the heat transfer capability of the thermal grease.
2. Remove the side cover.
3. Remove the fan duct.
About this task

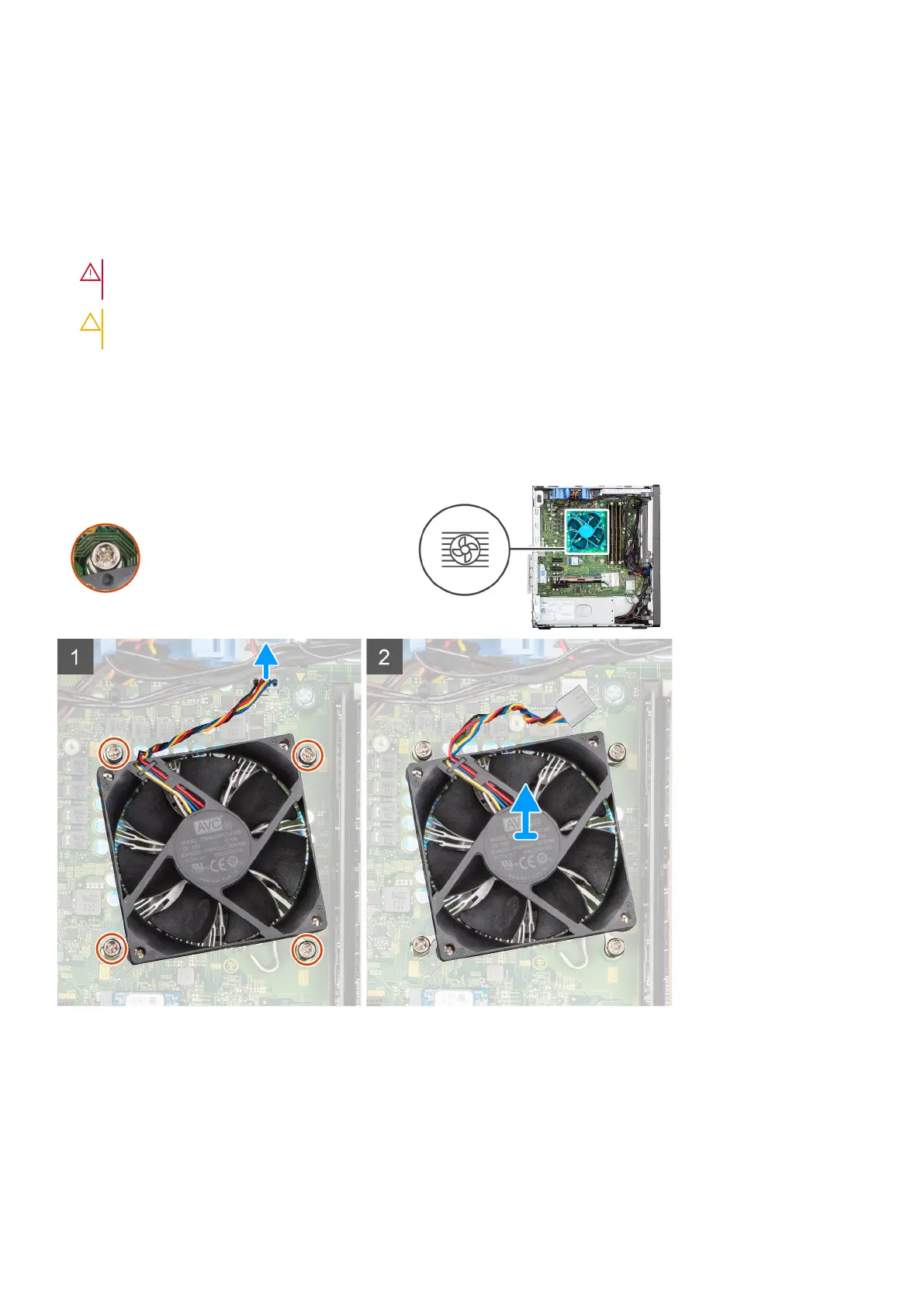

The following images indicate the location of the processor fan and heat-sink and provide a visual representation of the removal
procedure.
Steps
1. Disconnect the processor fan cable from the connector on the system board.
2. Loosen the four captive screws that secure the processor fan and heat-sink assembly to the system board.
3. Lift the processor fan and heat-sink assembly off the system board.
