Dell OptiPlex 5000 Tower User Manual

Steps

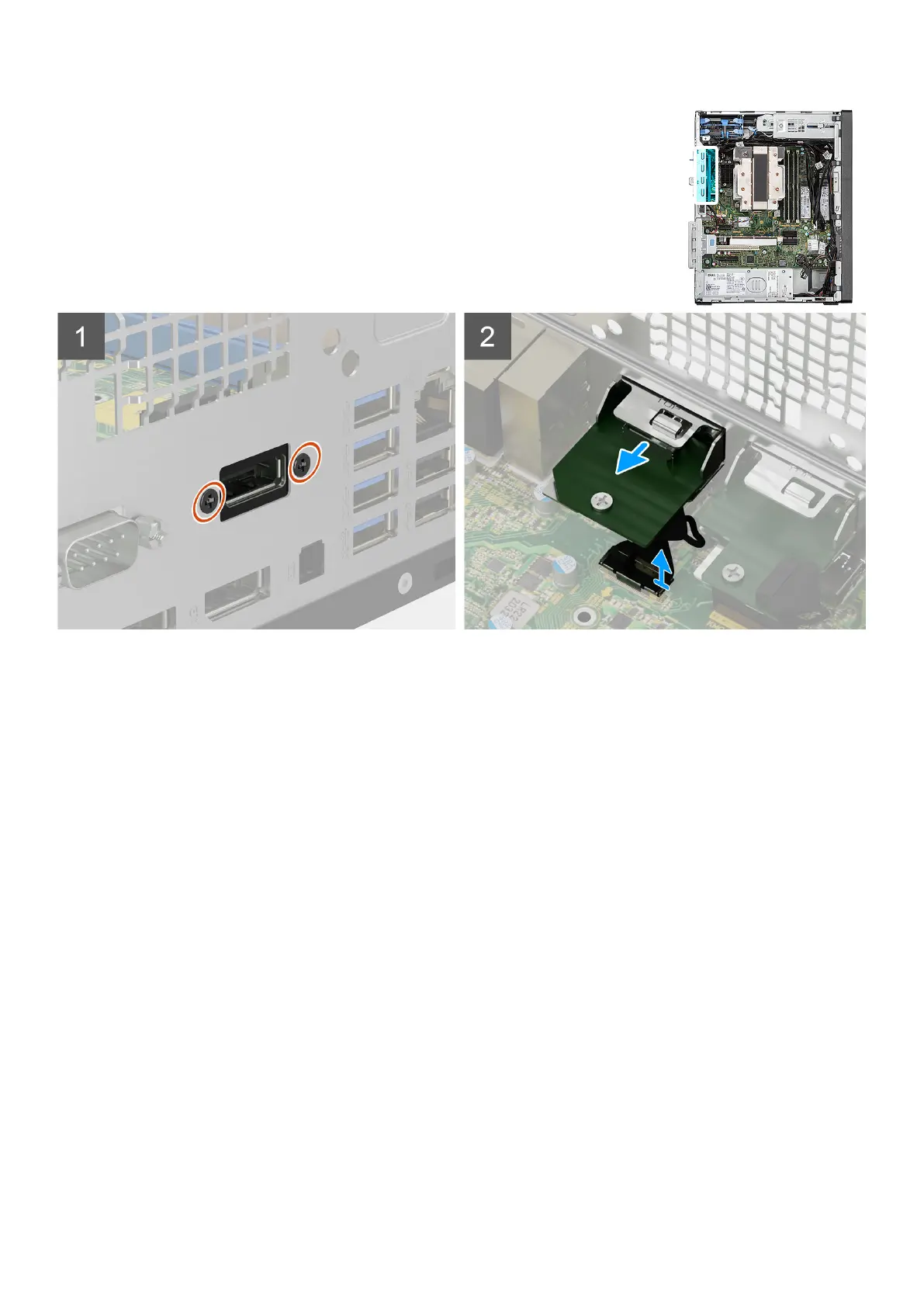

1. Remove the two (M3X3) screws that secure the optional DisplayPort module to the computer chassis.
2. Disconnect the DisplayPort module cable from the connector on the system board.
3. Remove the DisplayPort module from the computer.
Installing optional DisplayPort module
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the optional DisplayPort module and provide a visual representation of the
installation procedure.
62
Removing and installing components

Dell OptiPlex 5000 Tower Specifications

General

Processor Options	12th Gen Intel Core i5, i7, i9
Operating System	Windows 11 Pro
Memory	Up to 128GB DDR4
Storage Options	HDD, SSD, NVMe SSD
Graphics	Intel UHD Graphics
Ports	USB 3.2 Gen 1
Expansion Slots	PCIe x16, PCIe x1, M.2
Dimensions	367mm
Power Supply	260W
