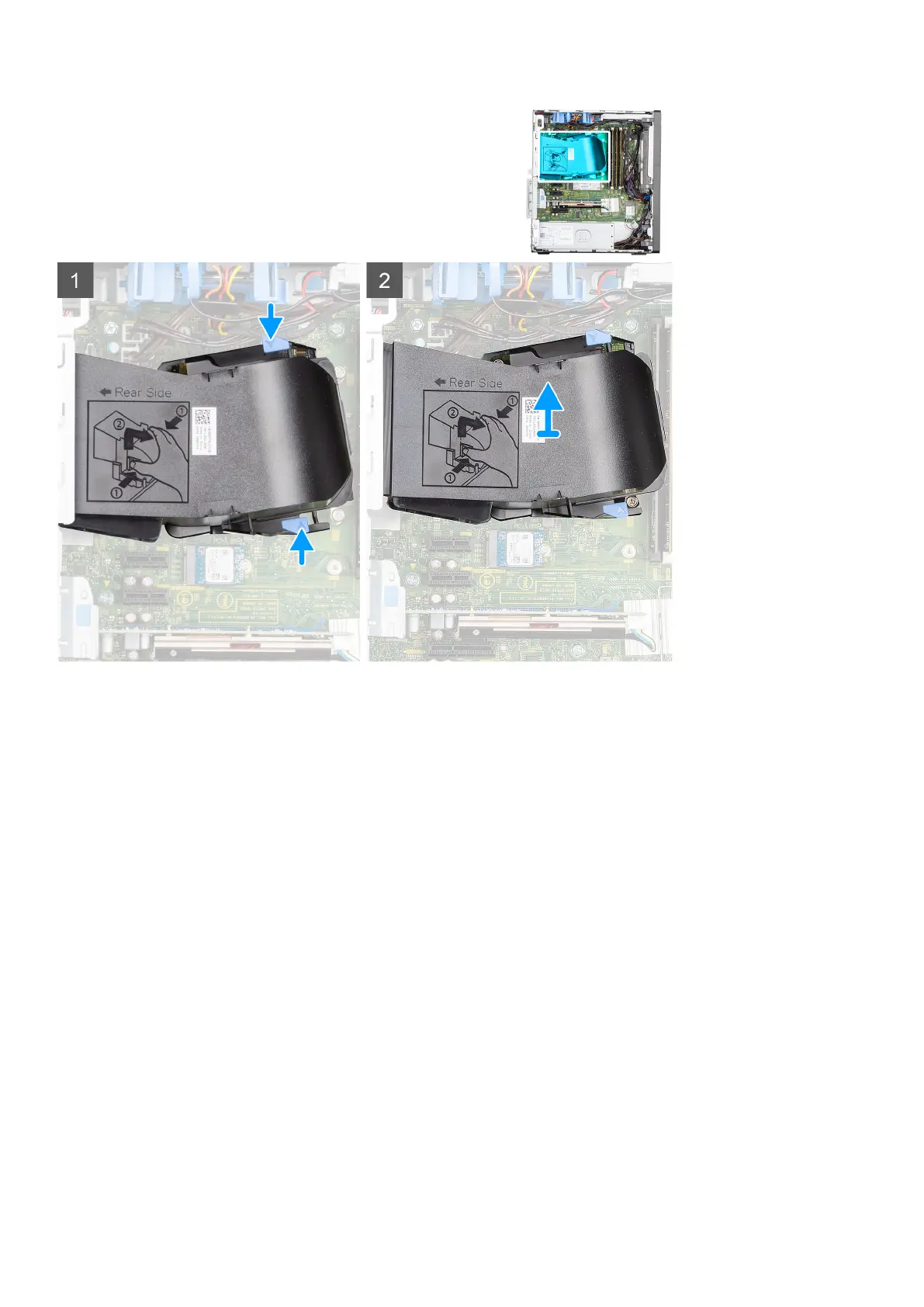

Steps
1. Press the retention tabs on both sides of the fan duct to release it.
2. Pull and remove the fan duct from the computer.
Installing the fan duct
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the fan duct and provides a visual representation of the installation procedure.
Removing and installing components
45
