Dell OptiPlex 5000 Tower - Page 79

18. M.2 PCIe SSD connector
19. Type-C connector
20. Processor socket
21. Keyboard and Mouse serial connector
22. Video connector
23. Intrusion switch connector

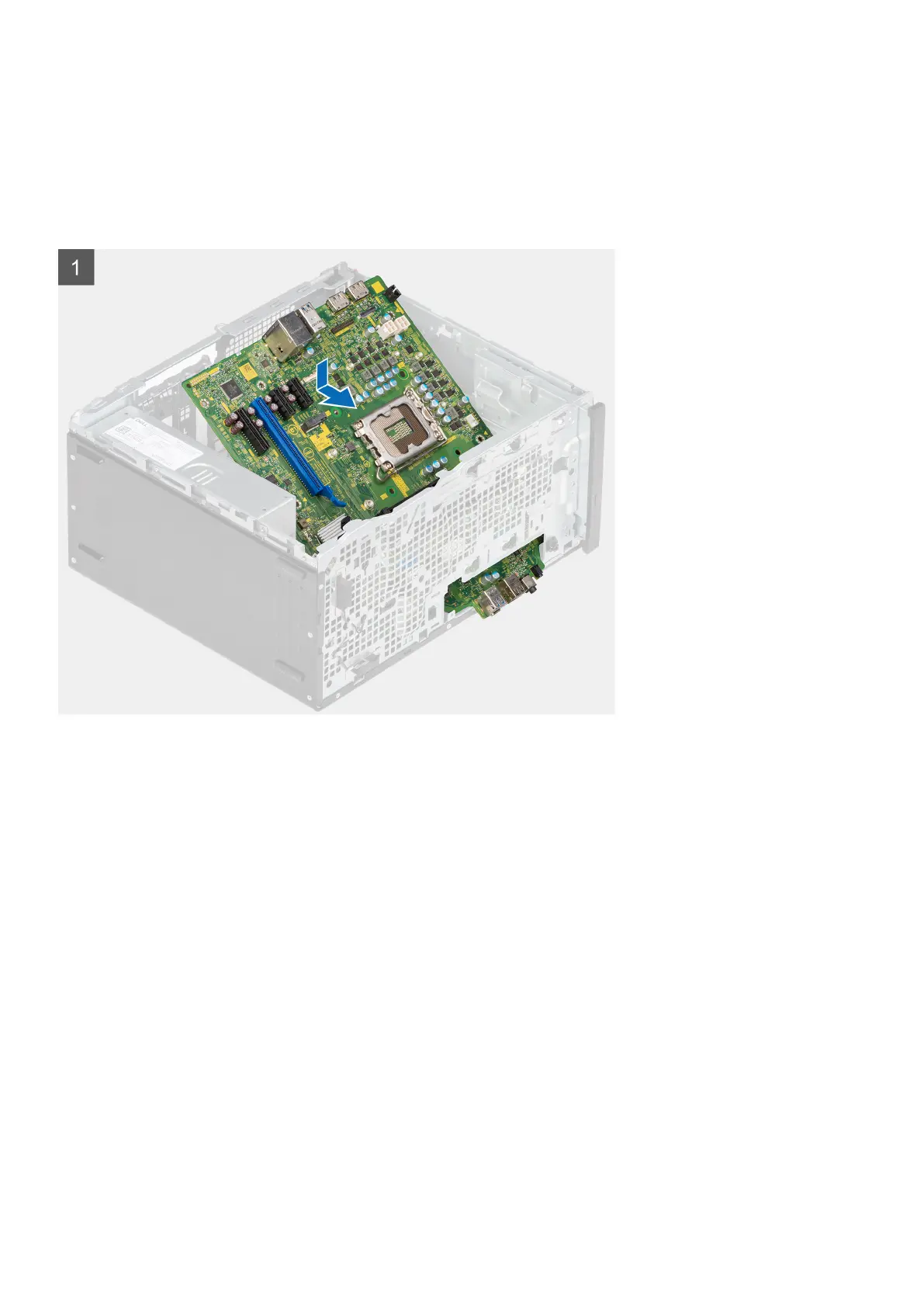

The following images indicate the location of the system board and provide a visual representation of the installation procedure.
Removing and installing components 79
