Dell Optiplex-620 - System Board Components; Jumper Settings



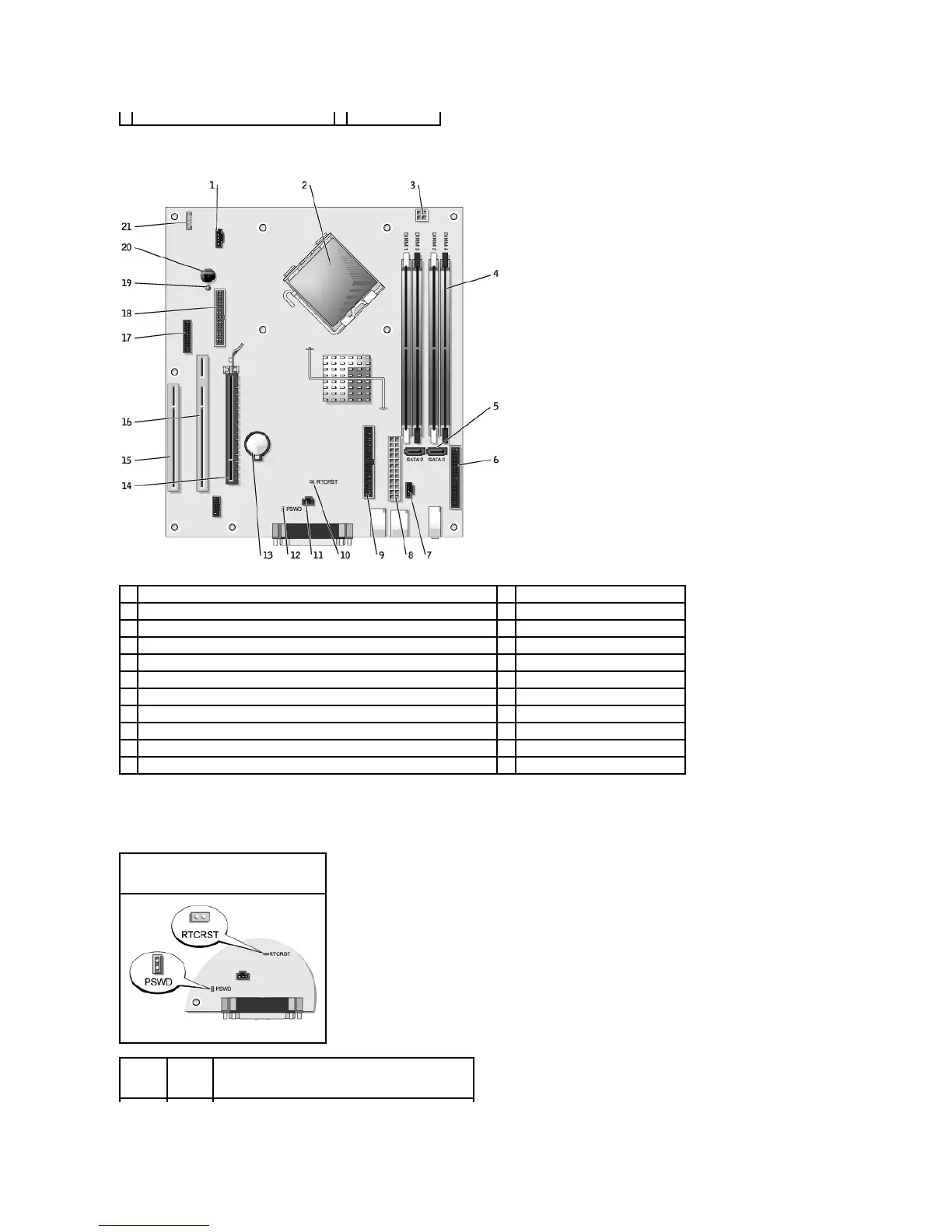

System Board Components

Jumper Settings
The jumper locations are shown below.
4
system board


1
fan connector (FAN)
12
password jumper (PSWD)
2
processor connector (CPU)
13
battery socket (BATT)
3
power connector (12VPOWER)
14
PCI Express x16 connector (SLOT1)
4
memory module connectors (DIMM_1, DIMM_2, DIMM_3, DIMM_4)
15
PCI connector (SLOT3)
5
serial ATA drive connectors (SATA0, SATA2)
16
PCI riser connector (SLOT2)
6
front-panel connector (FNT_PANEL)
17
serial connector (SER2)
7
CD drive analog audio cable connector for optional analog audio cable (CD_IN)
18
floppy drive connector (DSKT)
8
power connector (POWER)
19
standby power indicator (AUX_PWR)
9
CD/DVD drive connector (IDE)
20
system board speaker (BEEP)
10
RTC reset jumper (RTCRST)
21
internal speaker (INT_SPKR)
11
intrusion switch connector (INTRUDER)



Desktop Computer

Jumper

Setting

Description
