Inside Your Computer




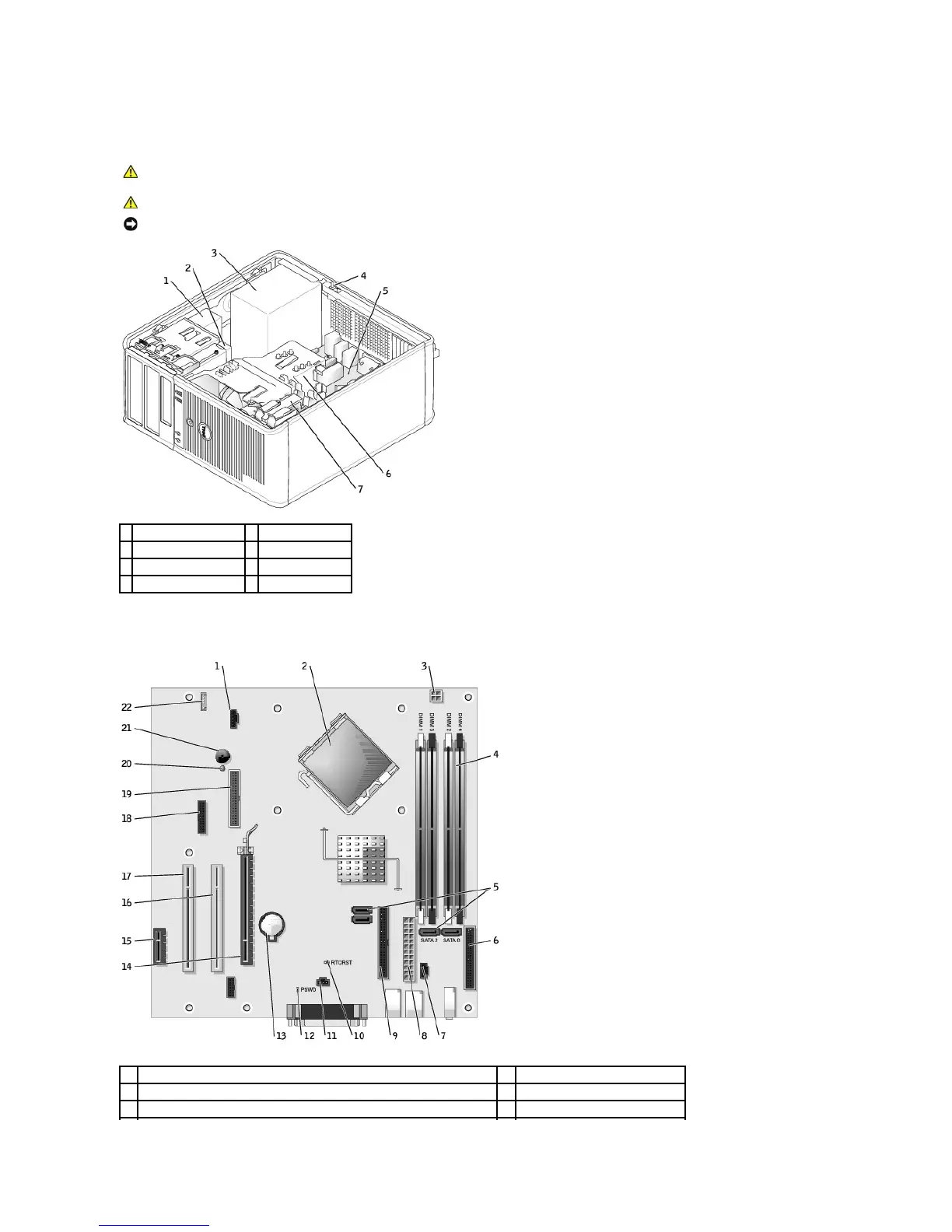

System Board Components
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions located in the Product Information Guide.
CAUTION: To avoid electrical shock, always unplug your computer from the electrical outlet before removing the computer cover.
NOTICE: Be careful when opening the computer cover to ensure that you do not accidentally disconnect cables from the system board.
1
CD/DVD drive
5
system board
2
floppy drive
6
heat sink assembly
3
power supply
7
hard drive
4
chassis intrusion switch


1
fan connector (FAN)
12
password jumper (PSWD)
2
processor connector (CPU)
13
battery socket (BATT)
3
power connector (12VPOWER)
14
PCI Express x16 connector (SLOT1)
