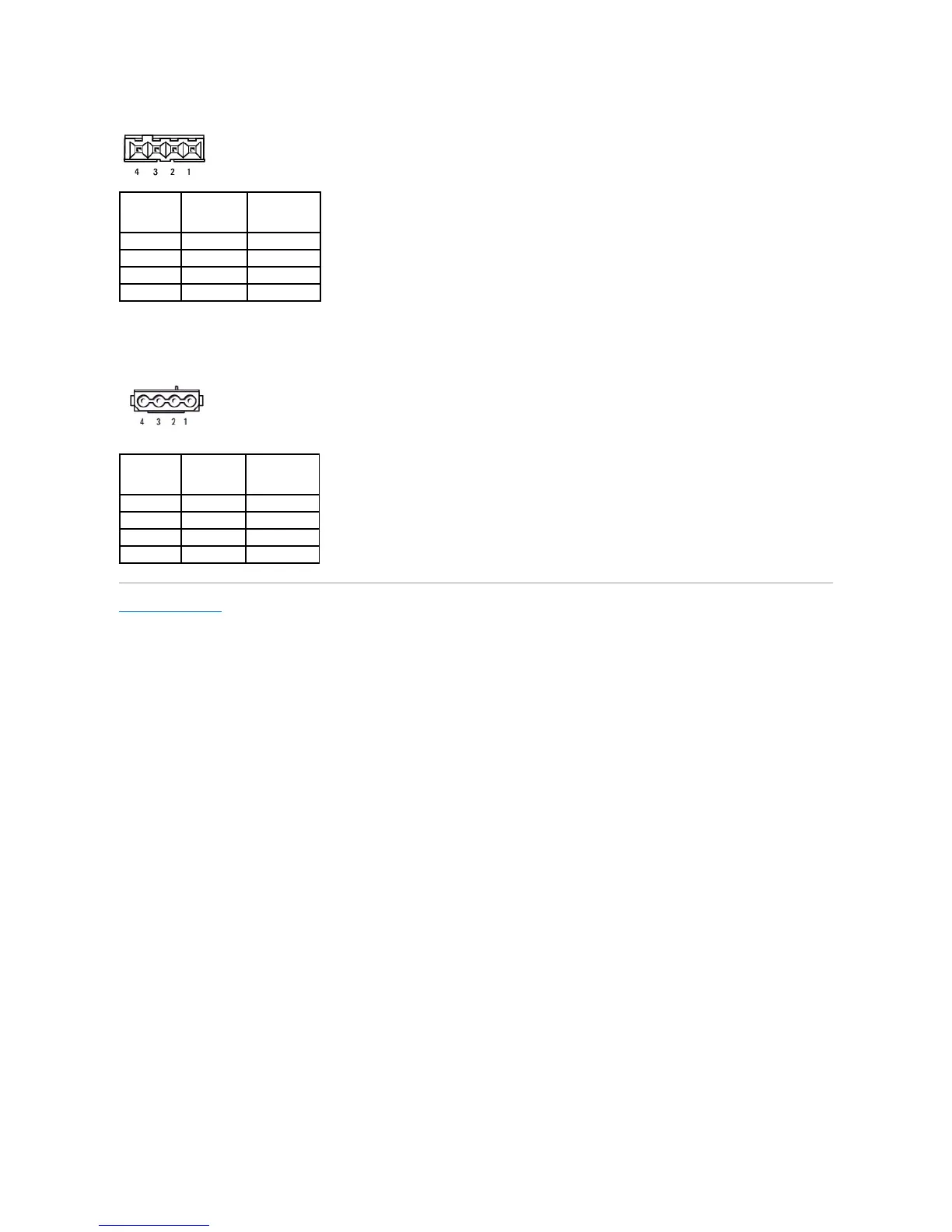

DC Power Connectors P8 and P9

Back to Contents Page



Pin Number



Signal Name



22-AWG Wire

+5 VCD

Red

COM

Black

COM

Black

+12 VDC

Yellow



Pin Number



Signal name



18-AWG Wire

+12 VDC

Yellow

COM

Black

COM

Black

+5 VDC

Red
