Dell P111G - Page 36

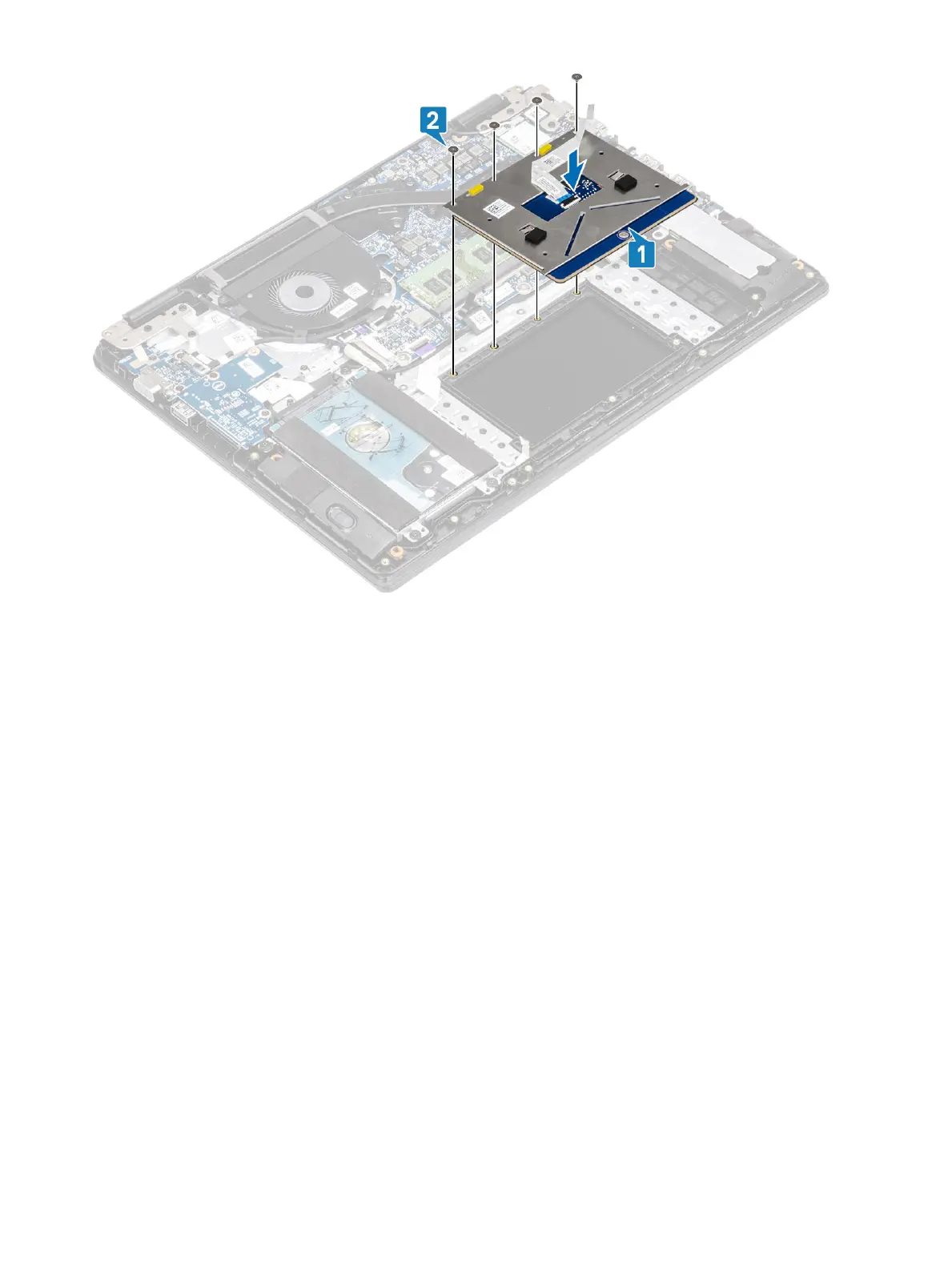

3 Adhere the tape that secures the touch pad to the palmrest and keyboard assembly [1].
4 Slide the touch pad cable into its connector on the system board and close the latch to secure the cable [2].
Removing and installing components
35
