About this task
The figure indicates the location of the keyboard lattice and provides a visual representation of the installation procedure.
Steps
1. Align the keyboard lattice to its position on the keyboard.
2. Press the edges on the keyboard lattice until it clicks into place.
Next steps
1. Install the base cover.
2. Install the SD card.
3. Follow the procedure in after working inside your computer.
Keyboard
Removing the keyboard
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
4. Remove the battery.
5. Remove the keyoard lattice.
About this task

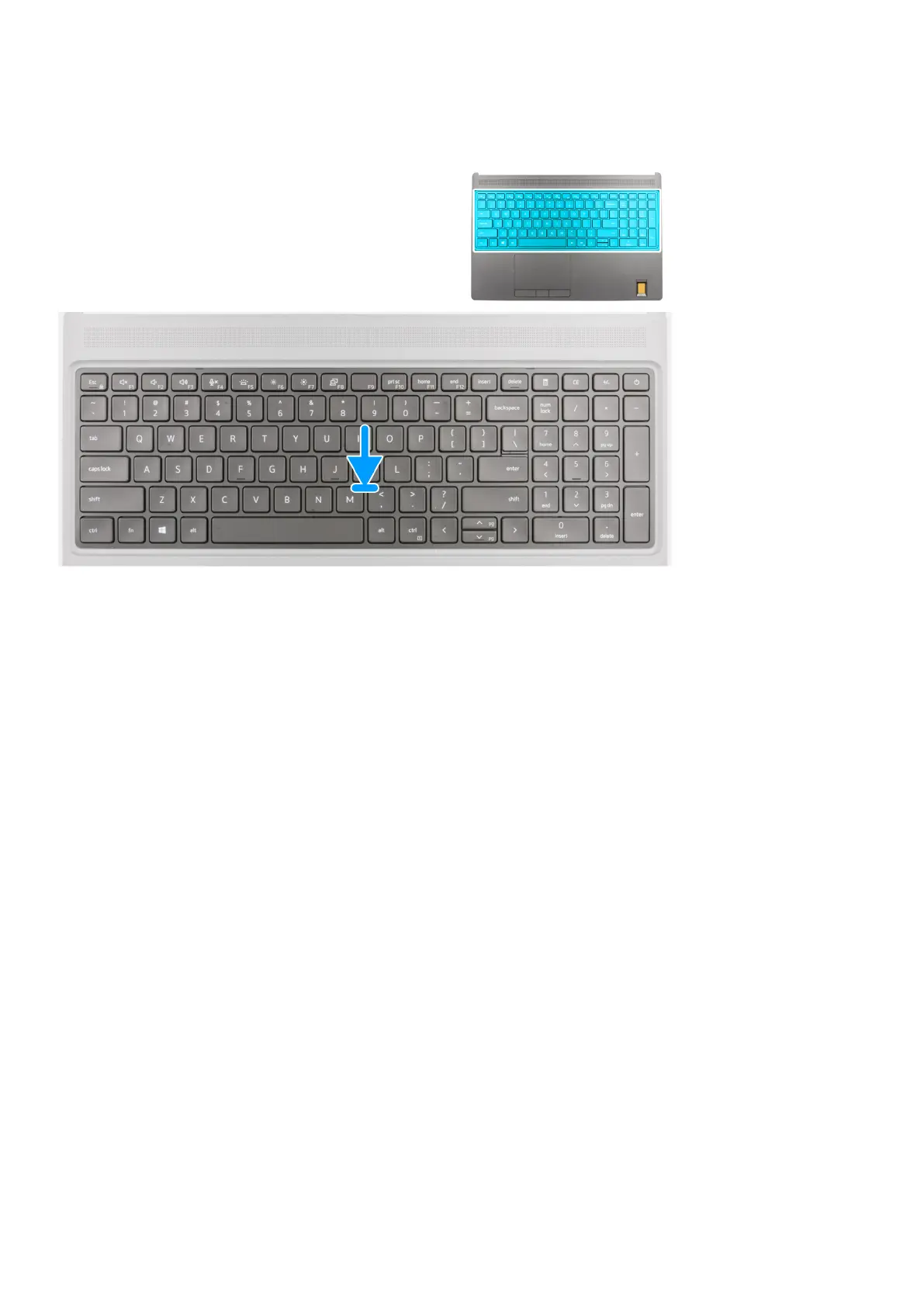

The figure indicates the location of the keyboard and provides a visual representation of the removal procedure.
Removing and installing components
43
