Steps

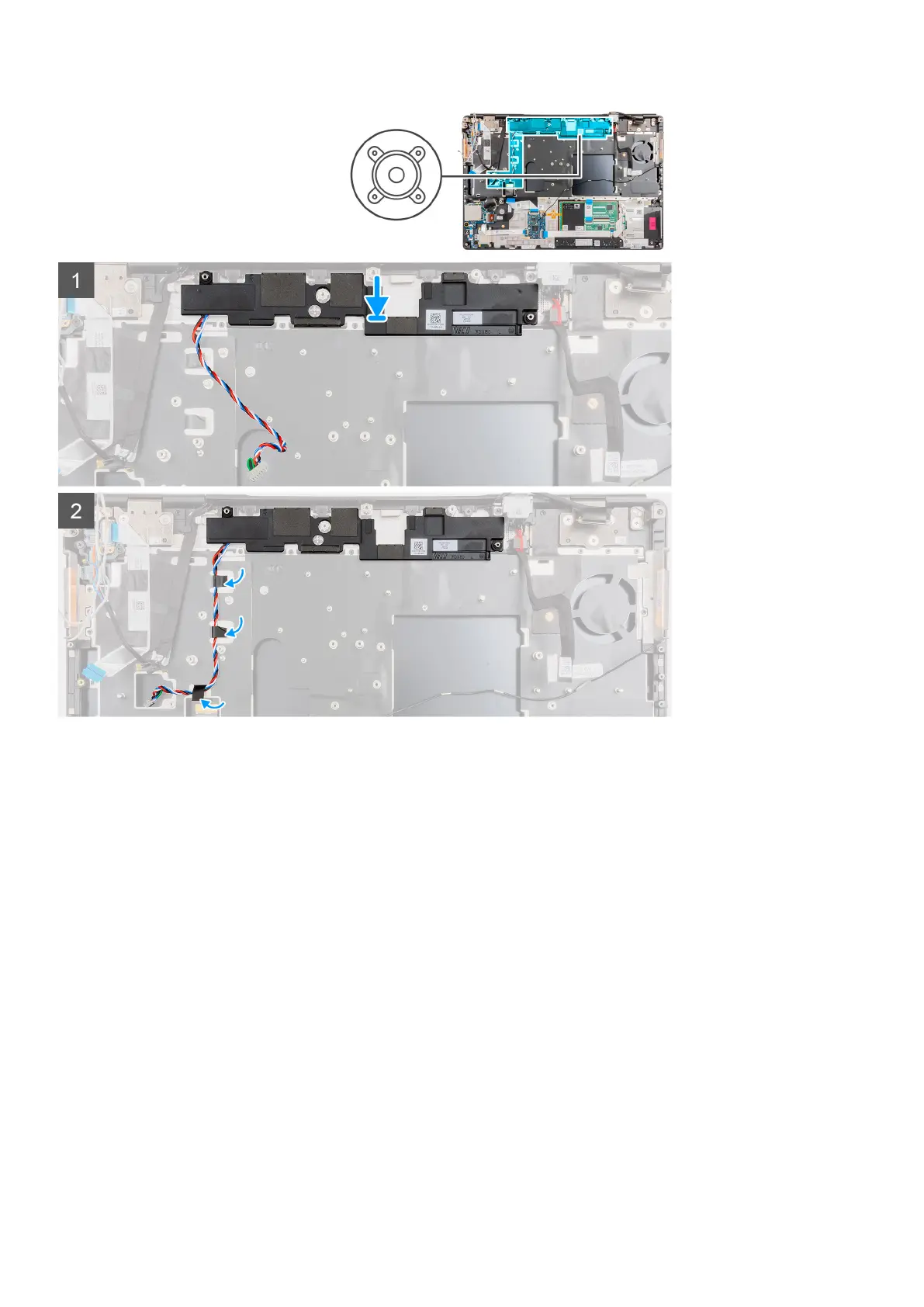

1. Align and place the speaker module into its slot on the top edge of the palmrest.
2. Adhere the three piece adhesive tape to secure the speaker cable in place on the palmrest.
Next steps
1. Install the system board.
2. Install the inner frame.
3. Install the heat-sink assembly.
4. Install the GPU card.
5. Install the GPU power cable.
6. Install the keyboard.
7. Install the keyboard lattice.
8. Install the SIM card.
9. Install the primary memory.
10. Install the WWAN card.
11. Install the WLAN card.
12. Install the secondary memory.
13. Install the primary M.2 SSD.
14. Install the battery.
15. Install the base cover.
16. Install the secondary M.2 SSD.
17. Install the SD card.
Removing and installing components
83
