Dell PowerEdge R210 - Back-Panel Features and Indicators

16 About Your System
Back-Panel Features and Indicators
Figure 1-2 shows the controls, indicators, and connectors located on the
system's back panel.

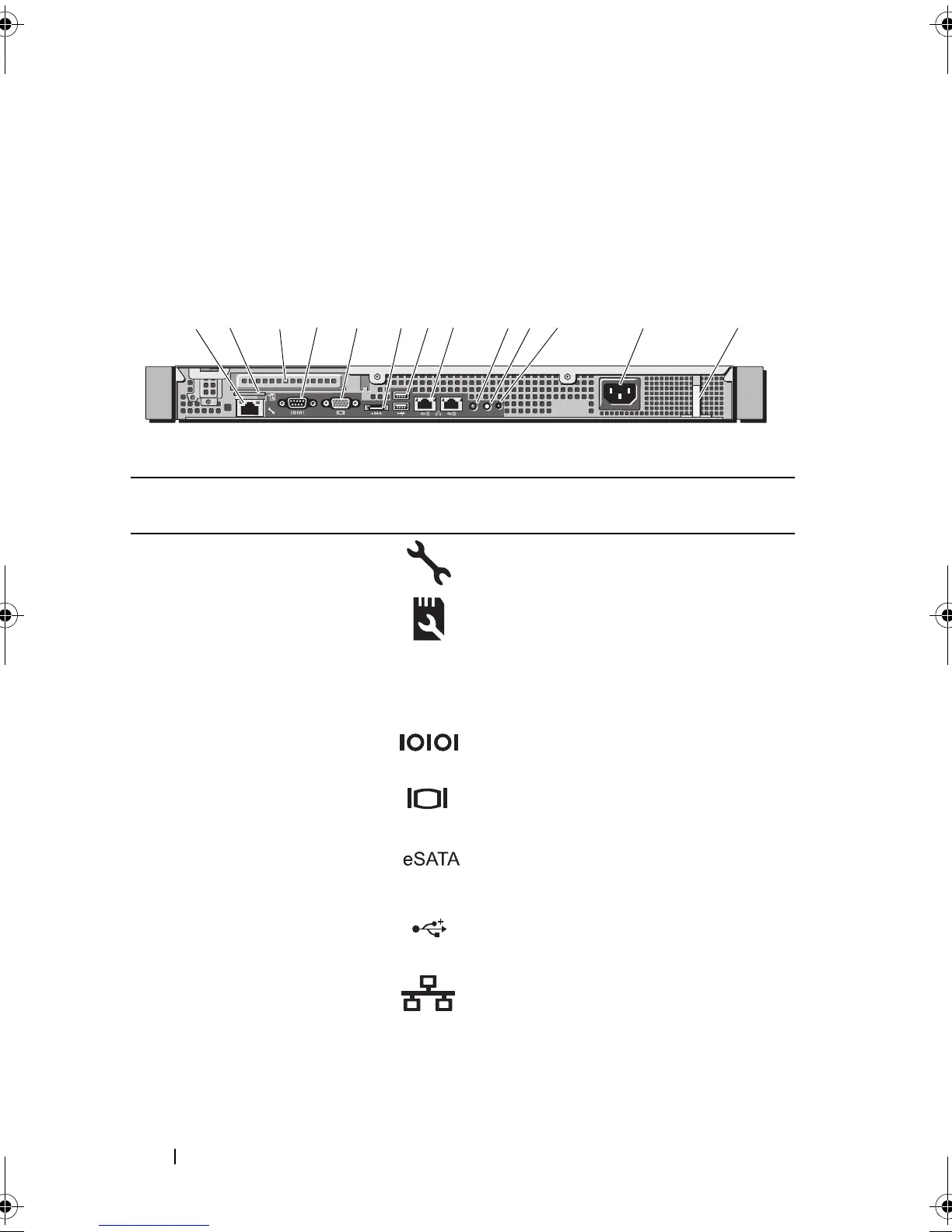

Figure 1-2. Back-Panel Features and Indicators
Item Indicator, Button, or
Connector
Icon Description
1 iDRAC6 Enterprise
port (optional)
Dedicated management port for the
optional iDRAC6 Enterprise card.
2 VFlash media slot
(optional)
Connects an external SD memory card
for the optional iDRAC6 Enterprise
card.
3 PCIe expansion card
slot
Connects a PCI Express expansion
card.
4 Serial connector Connects a serial device to the system.
5 Video connector Connects a VGA display to the system.
6 eSATA Connects additional storage devices.
7 USB connectors (2) Connects USB devices to the system.
The ports are USB 2.0-compliant.
8 Ethernet connectors
(2)
Embedded 10/100/1000 NIC
connectors.
12 4
13
5678 91011 12
3
