Dell PowerEdge R210 - Installing a Hard Drive into a Hard-Drive Bracket

Installing System Components 71

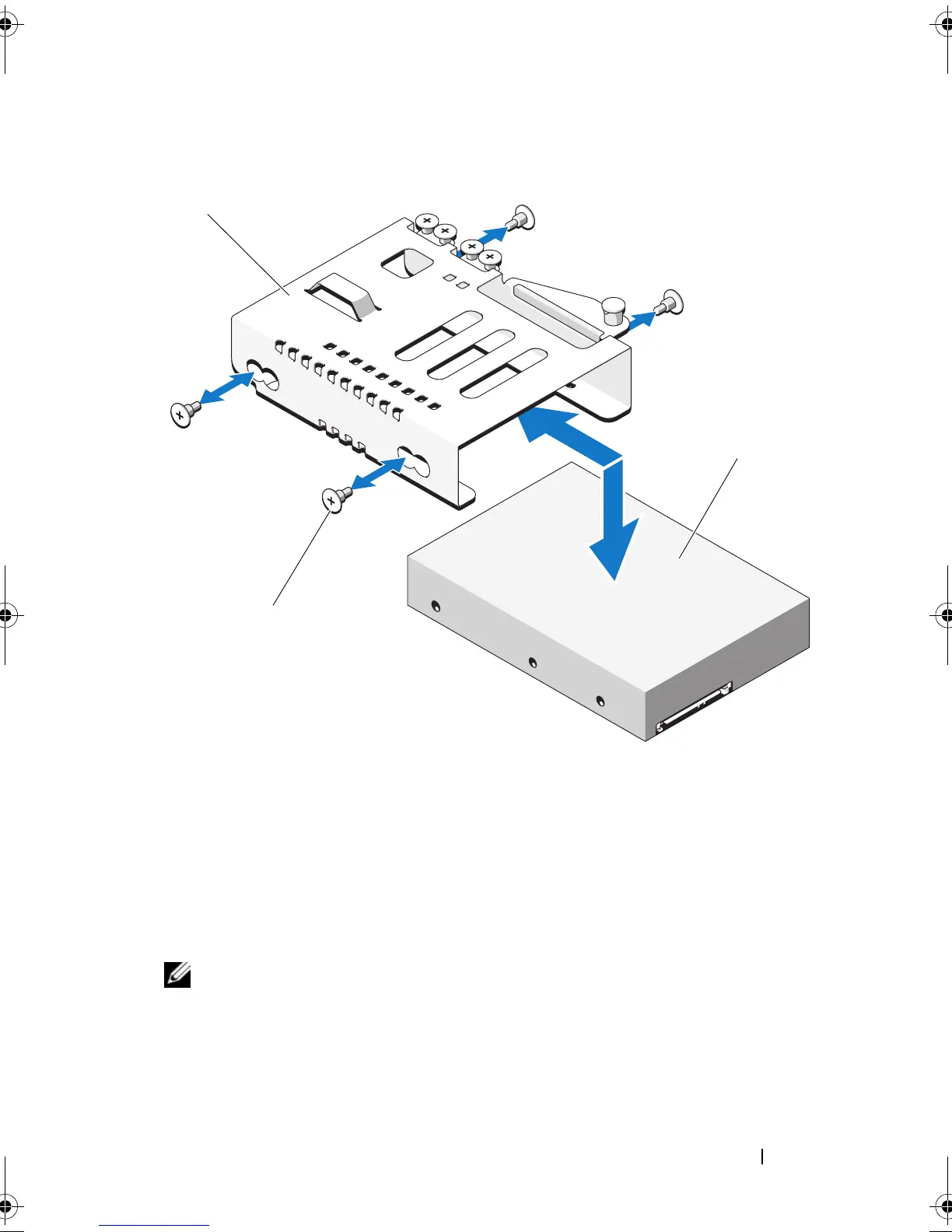

Figure 3-6. Removing a Hard Drive From a Hard-Drive Bracket
*Screws are supplied along with the hard drives ordered from Dell.
Installing a Hard Drive Into a Hard-Drive Bracket
NOTE: A 2.5-inch hard drive is encased in a 2.5-inch hard-drive bracket which is
further encased in a 3.5-inch hard-drive bracket.
1 Insert the hard drive into the hard-drive bracket. See Figure 3-6.
If you are installing a 2.5-inch hard drive, position the 2.5-inch hard-drive
bracket into the 3.5-inch hard drive bracket.
1 hard-drive bracket 2 hard drive
3 screws (4)*
2
3
1
