Dell PowerEdge R210 - Installing an Expansion-Card Riser

Installing System Components 75

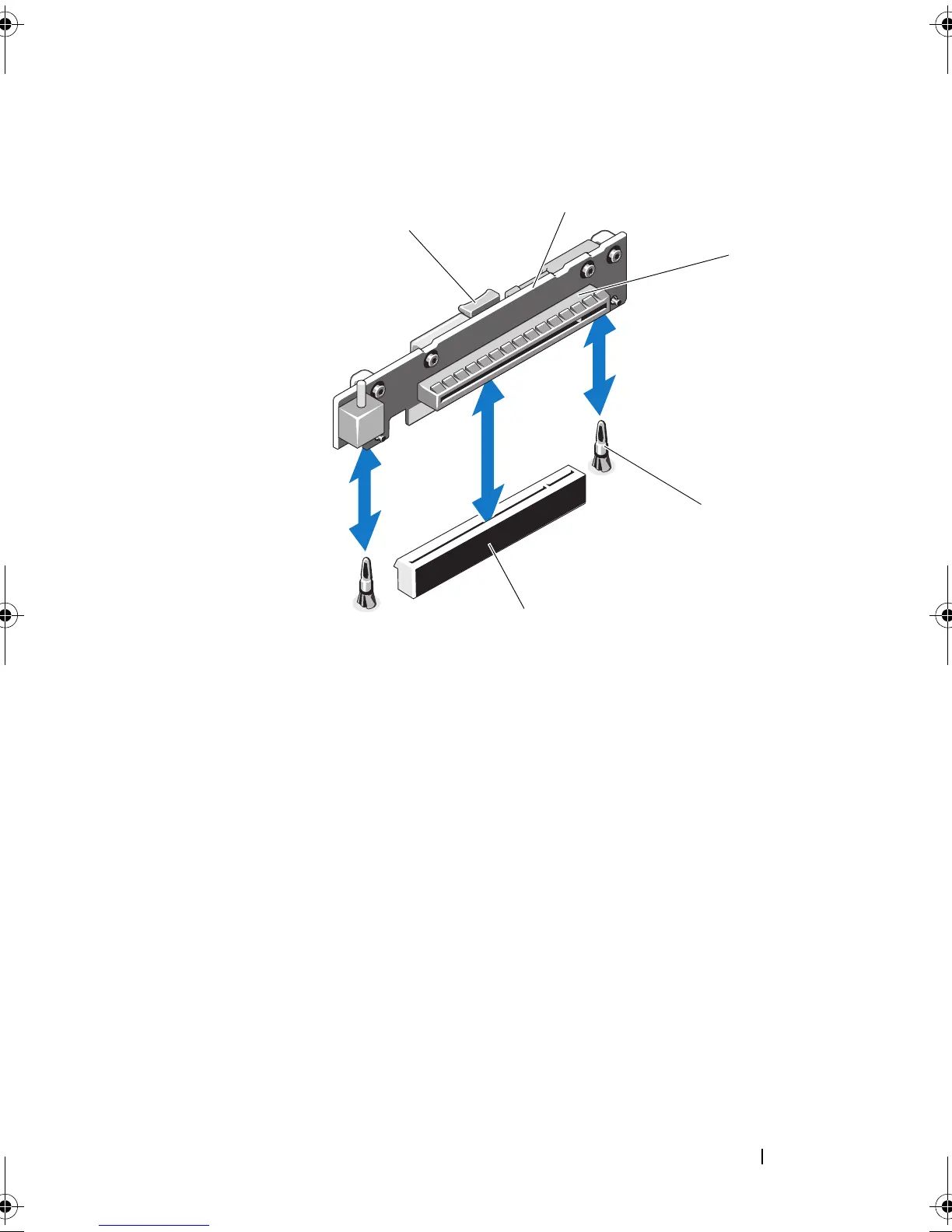

Figure 3-8. Installing or Removing an Expansion-Card Riser
Installing an Expansion-Card Riser
1 Align the expansion-card riser with the riser guide posts on the system
board. See Figure 3-8.
2 Lower the expansion-card riser into place until the expansion-card riser
connector is fully seated.
3 If applicable, reinstall the expansion card. See "Installing an Expansion
Card" on page 72.
4 Close the system. See "Closing the System" on page 63.
5 Reconnect the system to its electrical outlet and turn the system on,
including any attached peripherals.
1 release tab 2 expansion-card riser
3 expansion-card slot 4 riser guide posts (2)
5 expansion-card riser connector
2
3
4
1
5
