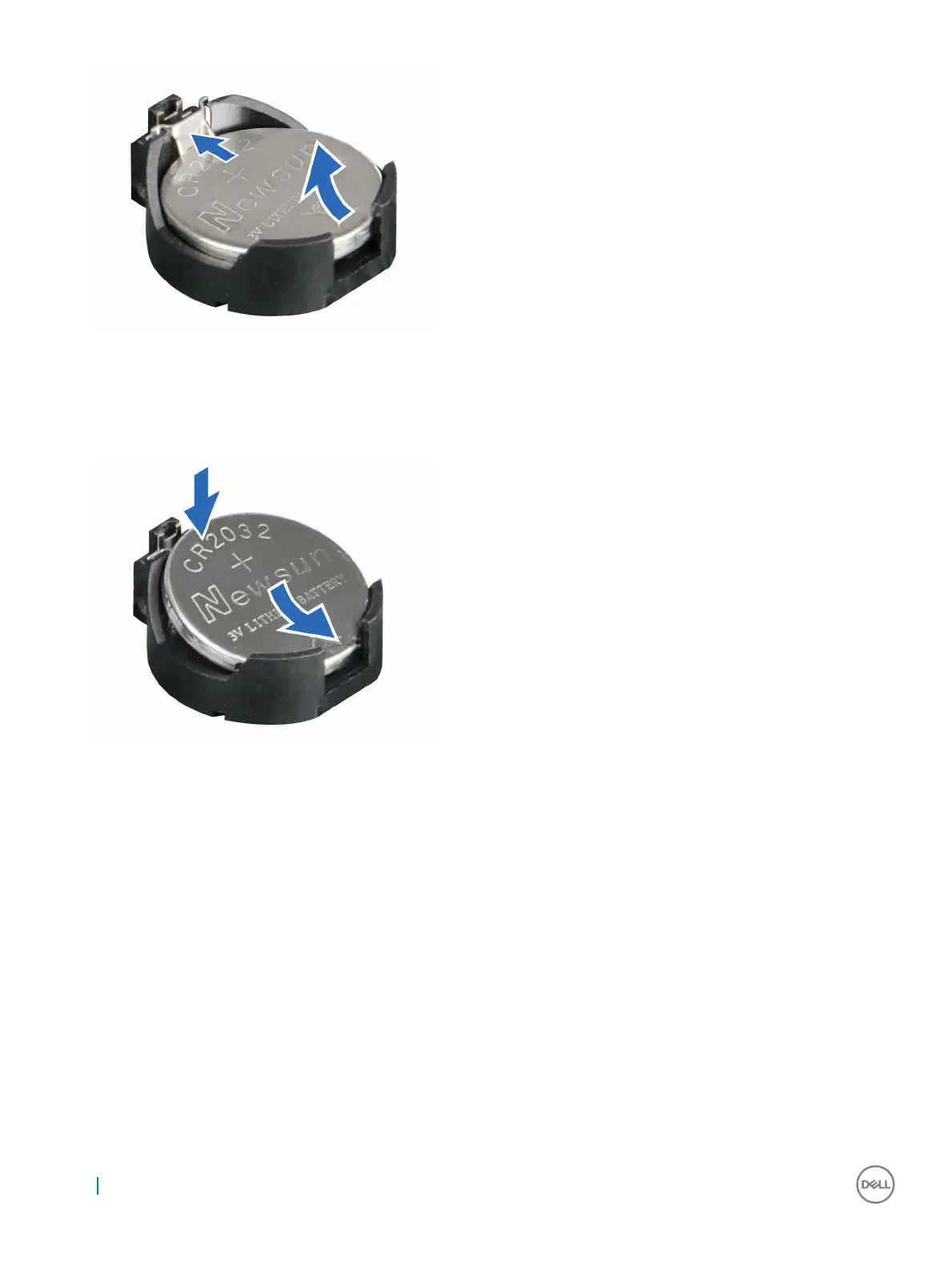

Figure 48. Removing the system battery
3 To install a new system battery, hold the battery with the "+" facing up and slide it under the securing tabs at the positive side of the
connector.
4 Press the battery straight down into the connector until it snaps into place.
Figure 49. Installing the system battery
Next steps
1 Follow the procedure listed in the After working inside your system section.
2 Press F2 to enter the System Setup to confirm that the battery is operating properly.
3 Enter the correct time and date in the System Setup Time and Date fields.
4 Exit System Setup.
System board
A system board (also known as the motherboard) is the main printed circuit board found in systems. The system board allows
communication between many of the crucial electronic components of the system, such as the central processing unit (CPU) and
memory, and also provides connectors for other peripherals.
86
Installing and removing system components
