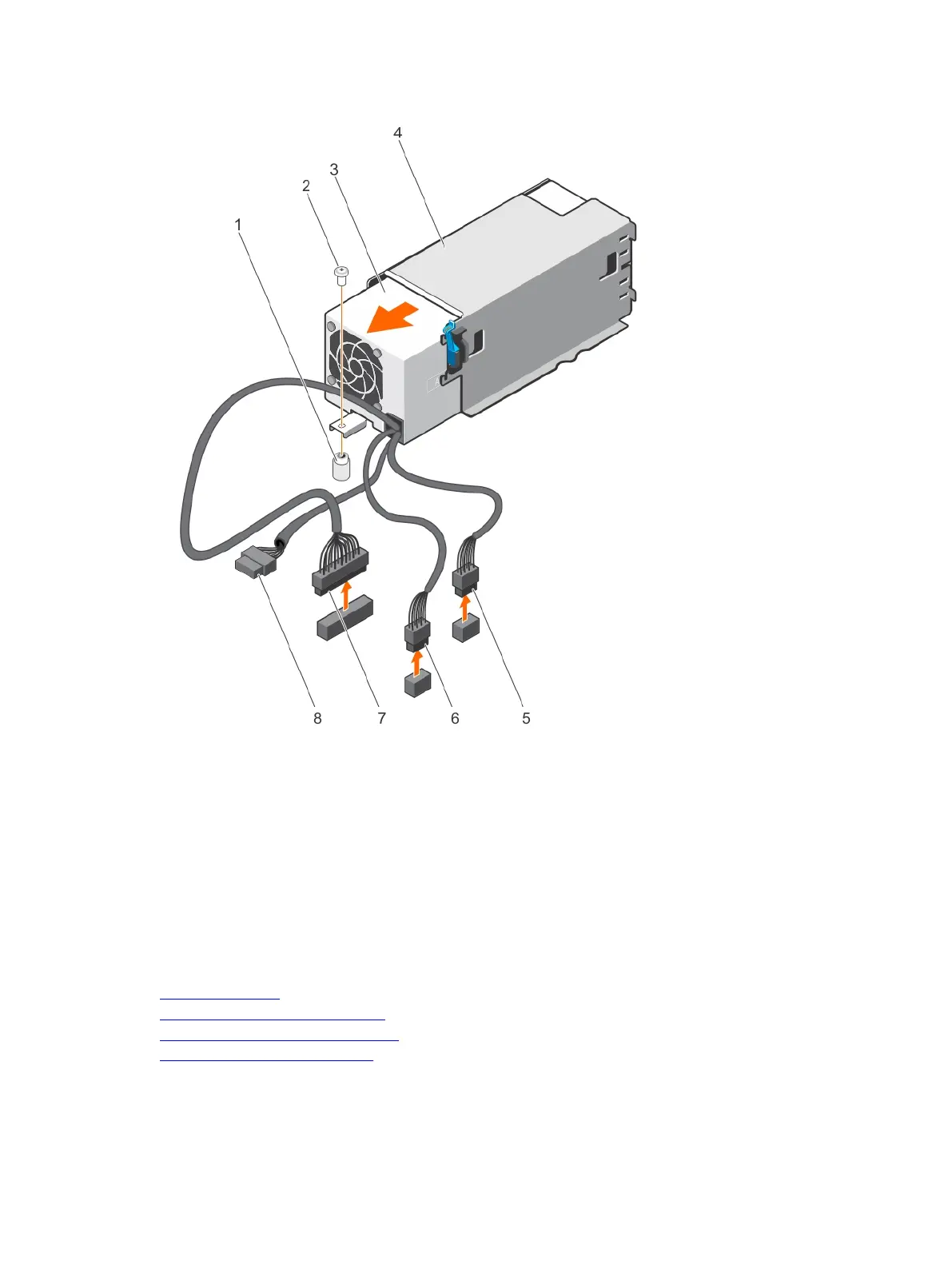

Figure 88. Removing a cabled PSU
1. standoff on the chassis 2. screw
3. cabled power supply 4. power supply unit cage
5. P1 cable connector 6. P2 cable connector
7. P3 cable connector 8. backplane connector
Next steps
1. Install a non-redundant PSU.
2. Follow the procedure listed in the After working inside your system section.
Related links
Safety instructions
Before working inside your system
Installing a cabled power supply unit
After working inside your system
