Dell PowerEdge T430 User Manual

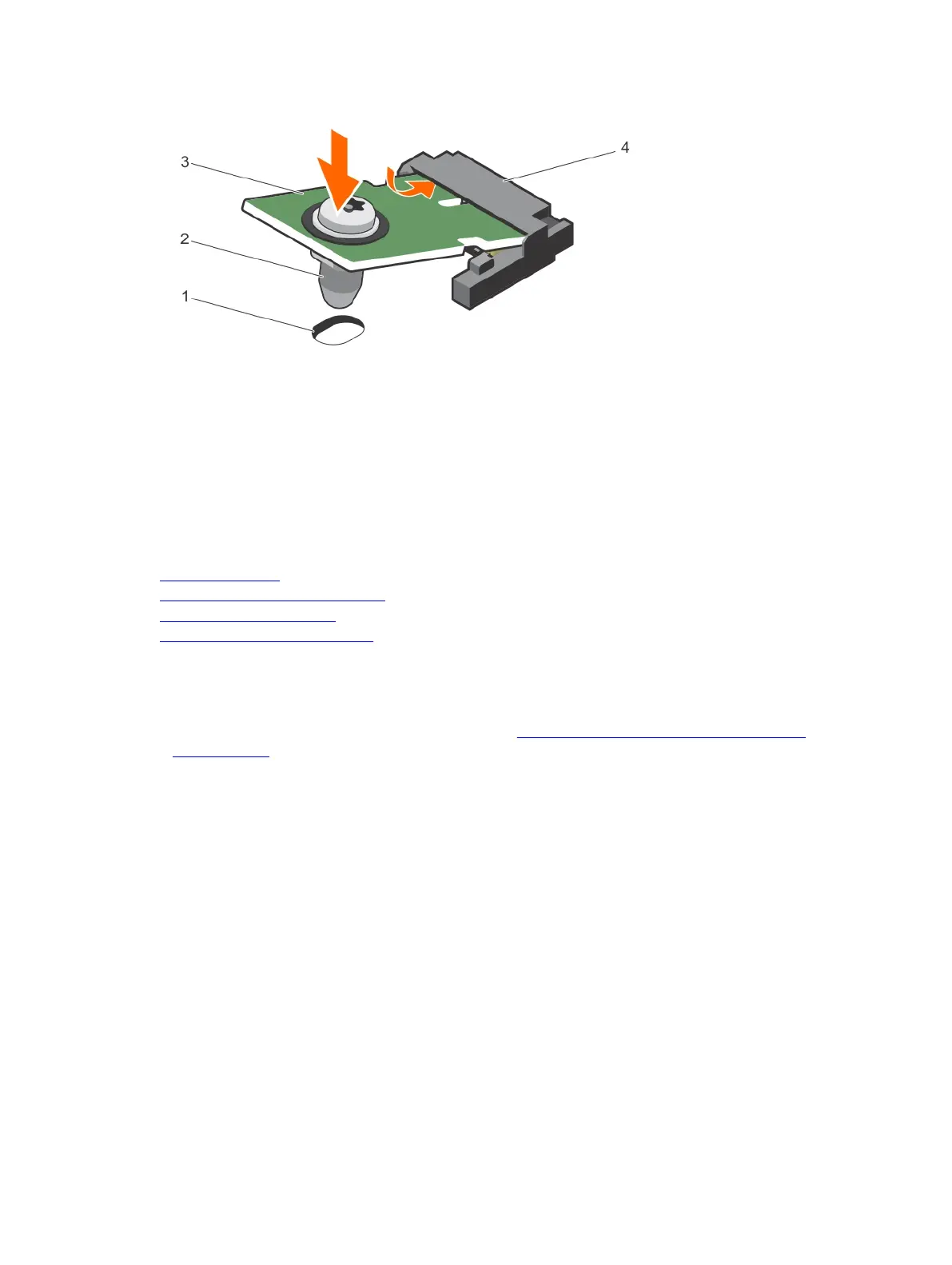

Figure 113. Installing the TPM
1. rivet slot on the system board 2. plastic rivet
3. TPM 4. TPM connector
Next steps
1. Install the system board.
2. Follow the procedure listed in the After working inside your system section.
Related links
Safety instructions
Before working inside your system
Installing the system board
After working inside your system
Initializing the TPM for BitLocker users
Initialize the TPM.
For more information about initializing the TPM, see http://technet.microsoft.com/en-us/library/
cc753140.aspx.
The TPM Status changes to Enabled, Activated.
Initializing the TPM for TXT users
1. While booting your system, press F2 to enter System Setup.
2. On the System Setup Main Menu screen, click System BIOS → System Security Settings.
3. From the TPM Security option, select On with Pre-boot Measurements.
4. From the TPM Command option, select Activate.
5. Save the settings.
6. Restart your system.
7. Enter System Setup again.
8. On the System Setup Main Menu screen, click System BIOS → System Security Settings.
9. From the Intel TXT option, select On.
212

Dell PowerEdge T430 Specifications

General

Tcase	74 °C
Bus type	QPI
Stepping	R0
Scalability	2S
Processor code	SR2P1
Processor cache	20 MB
Processor cores	8
Processor model	E5-2609V4
System bus rate	6.4 GT/s
Processor series	Intel Xeon E5-2600 v4
Processor socket	LGA 2011-v3
Processor codename	Broadwell
Execute Disable Bit	Yes
Motherboard chipset	Intel C610
Number of QPI links	2
Processor frequency	1.7 GHz
Processor cache type	Smart Cache
Processor lithography	14 nm
Processor manufacturer	Intel
Processor package size	45 x 52.5 mm
Processor operating modes	64-bit
PCI Express configurations	1x4, 1x8, 1x16
Supported instruction sets	AVX 2.0
Thermal Design Power (TDP)	85 W
Number of processors installed	1
Maximum number of PCI Express lanes	40
Memory types supported by processor	DDR4-SDRAM
Memory channels supported by processor	Quad
Memory clock speeds supported by processor	1600, 1866 MHz
Memory bandwidth supported by processor (max)	59.7 GB/s
Maximum internal memory supported by processor	1536 GB
HDD size	- \
RAID levels	0, 1, 5, 10, 50
HDD interface	-
Optical drive type	DVD±RW
Supported HDD sizes	3.5 \
Total storage capacity	1000 GB
Maximum storage capacity	- TB
Memory slots	12
Internal memory	8 GB
Memory clock speed	2133 MHz
Maximum internal memory	384 GB
Maximum graphics card memory	16 MB
On-board graphics card model	Not available
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	6
PCI Express slots version	3.0
Compatible operating systems	Windows Server 2008 SP2 (x86/x64) Windows Server 2012 SP2 (x86/x64) Windows Server 2008 R2 (x64) Windows Server 2012 R2 (x64) Novell SUSE Linux Enterprise Server Red Hat Enterprise Linux VMware vSphere
Trusted Platform Module (TPM) version	1.2
Chassis type	Tower (5U)
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12000 m
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 80 %
Processor ARK ID	92990
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	0.00
Intel® Identity Protection Technology (Intel® IPT)	No

Weight and Dimensions

Depth	584.05 mm
Width	430.2 mm
Height	444.3 mm
