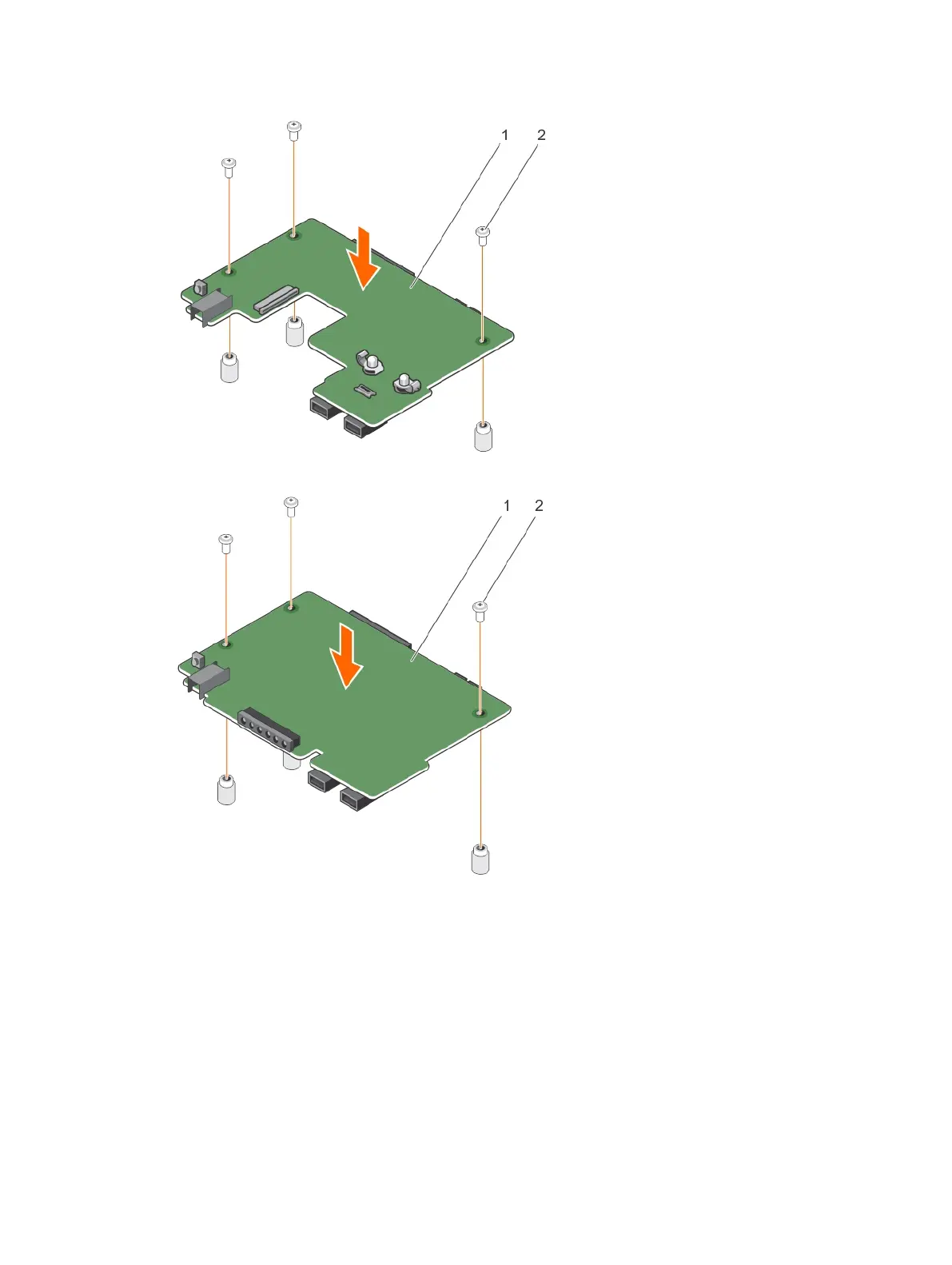

Figure 103. Installing the control panel board for systems with hot swappable hard drives
Figure 104. Installing the control panel board for systems with cabled hard drives
Next steps
1. Install the control panel assembly cover.
2. Install the control panel assembly.
3. Follow the procedure listed in the After working inside your system section.
198
