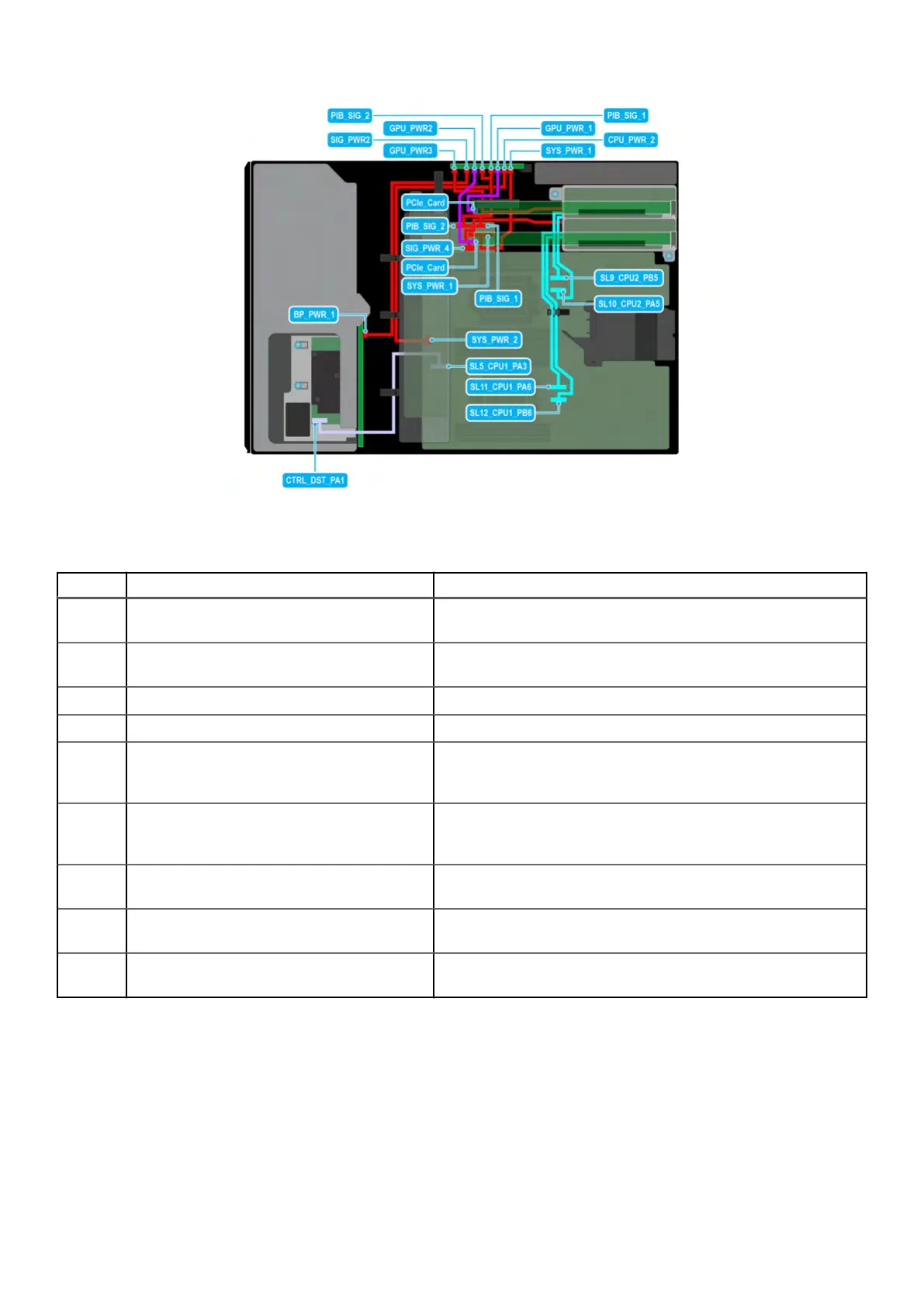

Figure 45. Configuration 7: 8x3.5-inch (SAS/SATA ) + GPUx2 on CPU 2
Table 77. Configuration 7: 8x3.5-inch (SAS/SATA ) + GPUx2 on CPU 2
Order From To
1 SYS_PWR_1 (Power connector on system
bo
ard)
SYS_PWR_1 (Power connector on PIB)
2 SYS_PWR_2 (Power connector on system
board)
CPU_PWR_2 (Power connector on PIB)
3 BP_PWR_1 (Backplane power connector) SIG_PWR_2 (Power connector on PIB)
4 PCIe card GPU_PWR1 and GPU_PWR2 (GPU power connectors on PIB)
5 PIB_SIG_1 (PIB signal connector on system
board) and PIB_SIG_2 (PIB signal connector
on system board)
PIB_SIG_1 (PIB signal connectors on PIB) and PIB_SIG_2 (PIB
signal connectors on PIB)
6 SIG_PWR_4 (Power connector on system
board) and GPU_PWR3 (GPU power
connector on PIB)
RISER_PWR_1 (GPU Riser)
7 SL9_CPU2_PB5 and SL10_CPU2_PA5 (Signal
connectors on system board)
GPU Riser 1
8 SL11_CPU1_PA6 and SL12_CPU1_PB6 (Signal
connectors on system board)
GPU Riser 2
9 SL5_CPU1_PA3 (Signal connector on system
board)
CTRL_DST_PA1 (fPERC 11 connector)
100 Installing and removing system components
