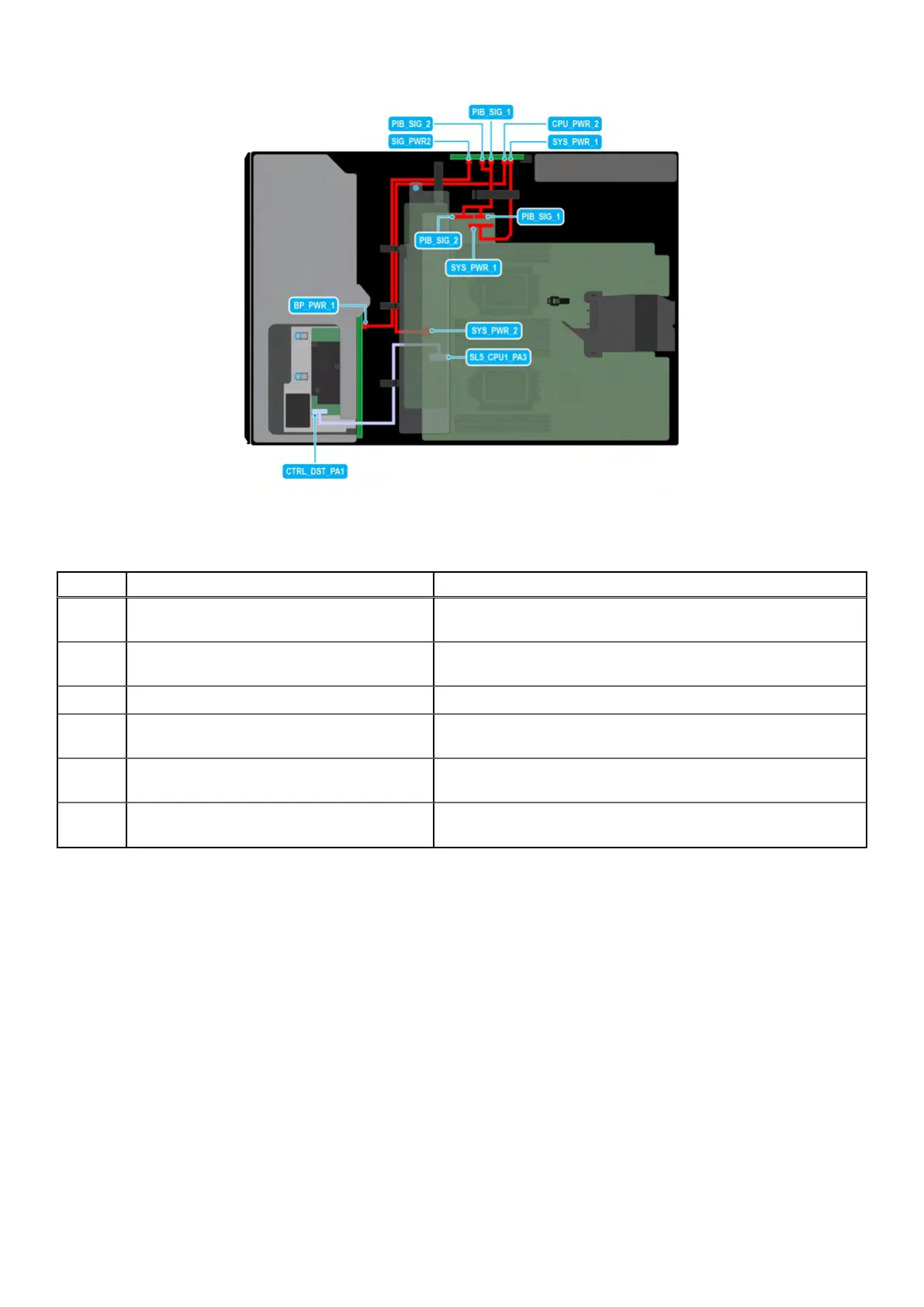

Figure 44. Configuration 6: 8x3.5-inch (SAS/SATA ) on CPU 2
Table 76. Configuration 6: 8x3.5-inch (SAS/SATA ) on CPU 2
Order From To
1 SYS_PWR_1 (Power connector on system
board)
SYS_PWR_1 (Power connector on PIB)
2 SYS_PWR_2 (Power connector on system
board)
CPU_PWR_2 (Power connector on PIB)
3 BP_PWR_1 (Backplane power connector) SIG_PWR_2 (Power connector on PIB)
4 PIB_SIG_1 (PIB signal connector on system
board)
PIB_SIG_1 (PIB signal connectors on PIB)
5 PIB_SIG_2 (PIB signal connector on system
board)
PIB_SIG_2 (PIB signal connectors on PIB)
6 SL5_CPU1_PA3 (Signal connector on system
board)
CTRL_DST_PA1 (fPERC 11 connector)
Installing and removing system components 99
