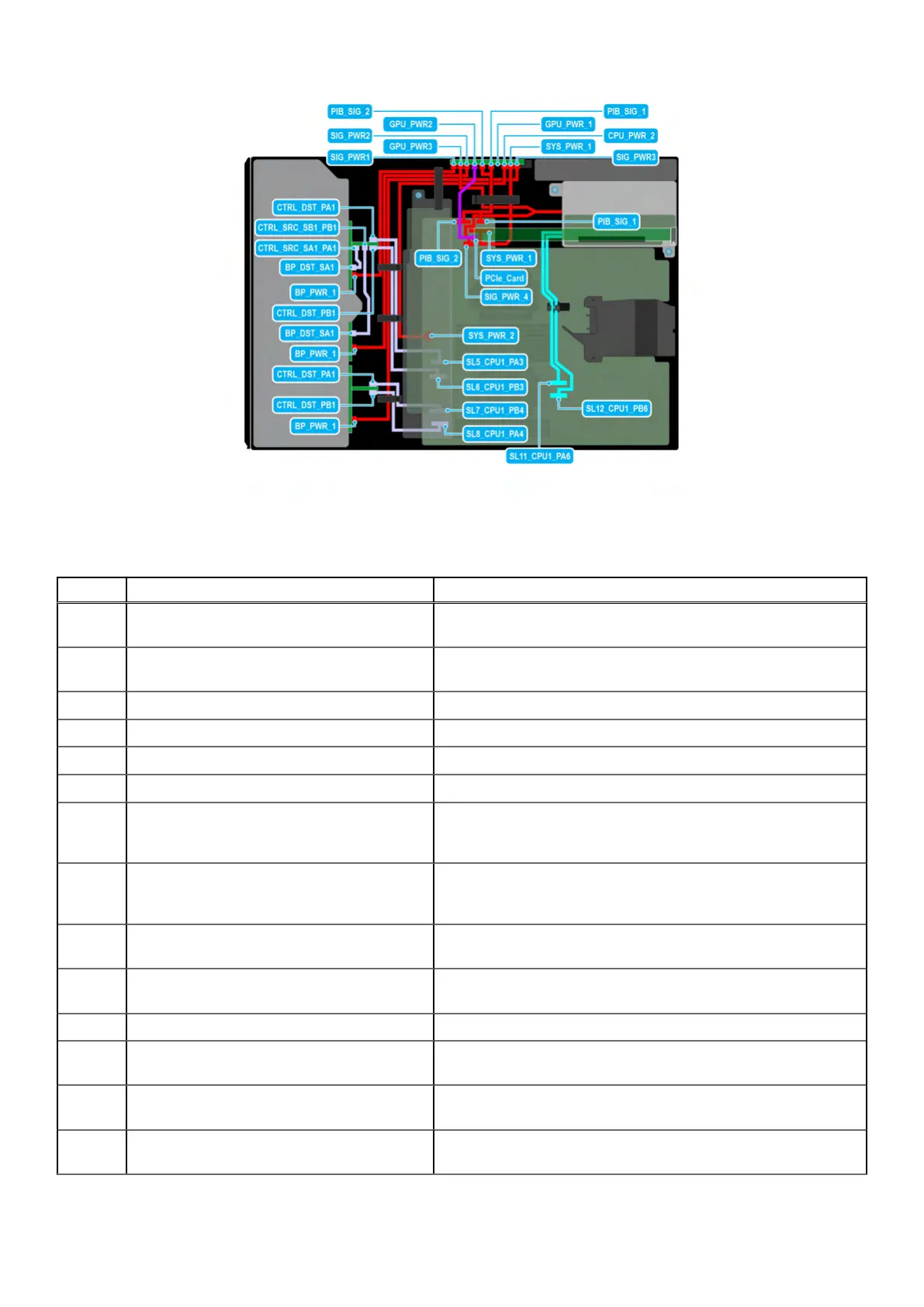

Figure 92. Configuration 54: 24x2.5-inch (SAS4/SATA) fPERC12 + GPUx1 on CPU 1
Table 124. Configuration 54: 24x2.5-inch (SAS4/SATA) fPERC12 + GPUx1 on CPU 1
Order From To
1 SYS_PWR_1 (Power connector on system
bo
ard)
SYS_PWR_1 (Power connector on PIB)
2 SYS_PWR_2 (Power connector on system
board)
CPU_PWR_2 (Power connector on PIB)
3 BP_PWR_1 (Backplane 1 power connector) SIG_PWR_1 (Power connector on PIB)
4 BP_PWR_1 (Backplane 2 power connector) SIG_PWR_2 (Power connector on PIB)
5 BP_PWR_1 (Backplane 3 power connector) SIG_PWR_3 (Power connector on PIB)
6 PCIe card GPU_PWR1 and GPU_PWR2 (GPU power connectors on PIB)
7 PIB_SIG_1 (PIB signal connector on system
board) and PIB_SIG_2 (PIB signal connector
on system board)
PIB_SIG_1 (PIB signal connectors on PIB) and PIB_SIG_2 (PIB
signal connectors on PIB)
8 SIG_PWR_4 (Power connector on system
board) and GPU_PWR3 (GPU power
connector on PIB)
RISER_PWR_1 (GPU Riser)
9 SL11_CPU1_PA6 and SL12_CPU1_PB6 (Signal
connectors on system board)
GPU Riser 2
10 SL5_CPU1_PA3 (Signal connector on system
board)
CTRL_DST_PA1 (fPERC 12 connector)
11 BP_DST_SA1 (Backplane signal connector) CTRL_SRC_SB1 (fPERC 12 signal connector)
12 SL6_CPU1_PB3 (Signal connector on system
board)
BP_DST_PB1 (Backplane signal connector)
13 SL7_CPU1_PB4 (Signal connector on system
board)
CTRL_DST_PA1 (fPERC 12 connector)
14 SL8_CPU1_PA4 (Signal connector on system
board)
CTRL_DST_PB1 (fPERC 12 connector)
