Table 124. Configuration 54: 24x2.5-inch (SAS4/SATA) fPERC12 + GPUx1 on CPU 1 (continued)
Order From To
15 BP_DST_SA1 (Backplane 1 signal connector) CTRL_SRC_SA1_PA1 (Signal connector on fPERC 12)
16 BP_DST_SA1 (Backplane 2 signal connector) CTRL_SRC_SB1_PB1 (Signal connector on fPERC 12)

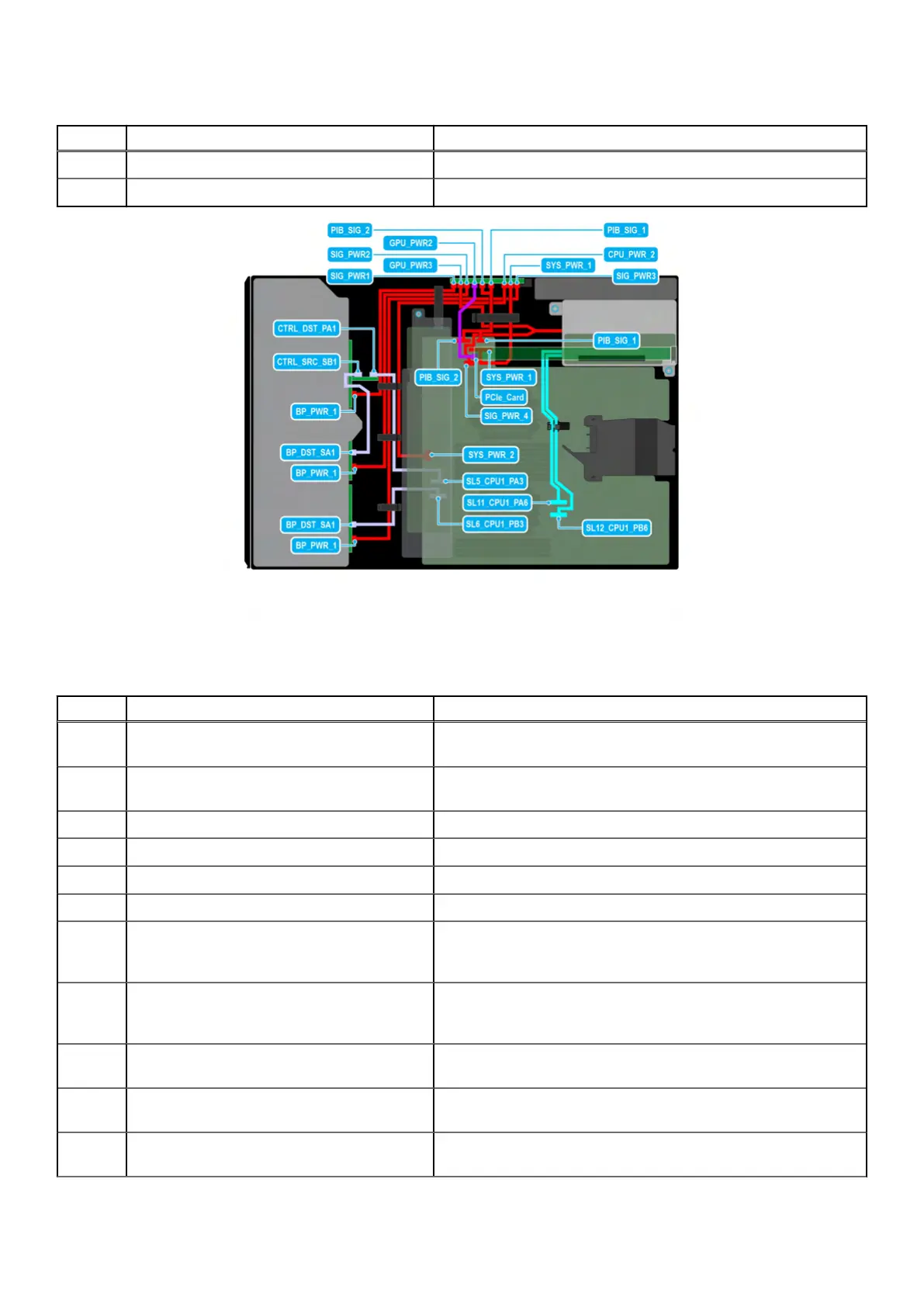

Figure 93. Configuration 55: 24x2.5-inch (SAS4/SATA) PERC11 + GPUx1 on CPU 2
Table 125. Configuration 55: 24x2.5-inch (SAS4/SATA) PERC11 + GPUx1 on CPU 2
Order From To
1 SYS_PWR_1 (Power connector on system
bo
ard)
SYS_PWR_1 (Power connector on PIB)
2 SYS_PWR_2 (Power connector on system
board)
CPU_PWR_2 (Power connector on PIB)
3 BP_PWR_1 (Backplane 1 power connector) SIG_PWR_1 (Power connector on PIB)
4 BP_PWR_1 (Backplane 2 power connector) SIG_PWR_2 (Power connector on PIB)
5 BP_PWR_1 (Backplane 3 power connector) SIG_PWR_3 (Power connector on PIB)
6 PCIe card GPU_PWR1 and GPU_PWR2 (GPU power connectors on PIB)
7 PIB_SIG_1 (PIB signal connector on system
board) and PIB_SIG_2 (PIB signal connector
on system board)
PIB_SIG_1 (PIB signal connectors on PIB) and PIB_SIG_2 (PIB
signal connectors on PIB)
8 SIG_PWR_4 (Power connector on system
board) and GPU_PWR3 (GPU power
connector on PIB)
RISER_PWR_1 (GPU Riser)
9 SL9_CPU2_PB5 and SL10_CPU2_PA5 (Signal
connectors on system board)
GPU Riser 1
10 SL11_CPU1_PA6 and SL12_CPU1_PB6 (Signal
connectors on system board)
GPU Riser 2
11 SL5_CPU1_PA3 (Signal connector on system
board)
CTRL_DST_PA1 (fPERC 11 connector)
148 Installing and removing system components
