Optional GPU card
Re
moving the GPU card holder
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure that is listed in Before working inside your system .
3. Remove the air shroud.
Steps
Loosen the captive screws and pull the GPU card holder from the system.

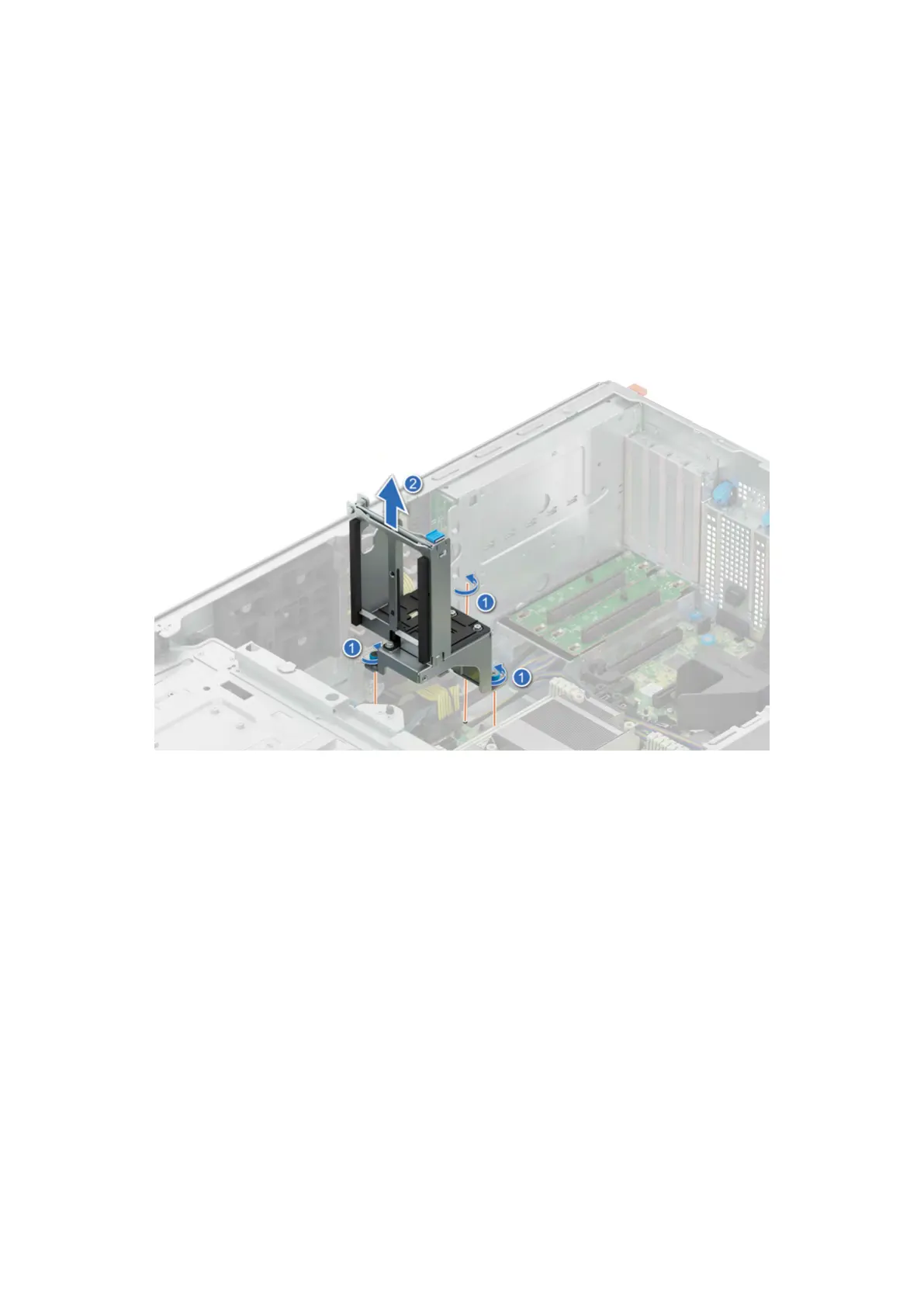

Figure 157. Removing GPU card holder
Ne
xt steps
Replace the GPU card holder.
Installing the GPU card holder
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure that is listed in Before working inside your system .
3. Remove the air shroud.
Steps
1. Align and lower the GPU card holder to the guide pin on the system.
2. Tighten the captive screws, until the GPU card holder is firmly seated.
