2. For systems that support redundant PSU, ensure that both the PSUs are of the same type and have the same maximum
o
utput power.
NOTE: The maximum output power (shown in watts) is listed on the PSU label.
Steps
Sl
ide the PSU into the system until the PSU is fully seated and the release latch snaps into place.

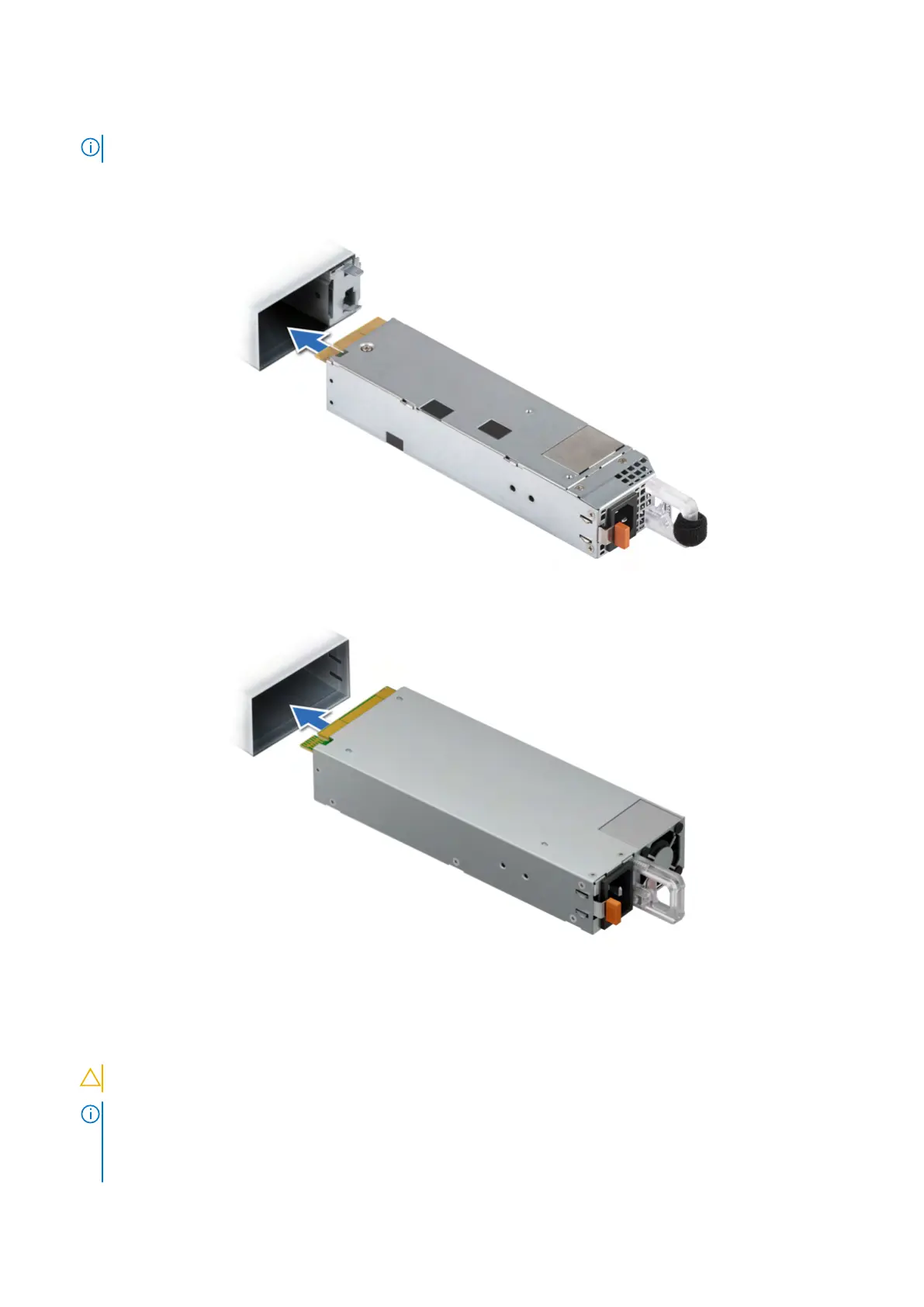

Figure 190. Installing a 60 mm power supply unit
Figure 191. Installing a 86 mm power supply unit
Ne
xt steps
1. Connect the power cable to the PSU, and plug the cable into a power outlet.
CAUTION: W
hen connecting the power cable to the PSU, secure the cable to the PSU with the strap.
NOTE: When installing, hot swapping, or hot adding a new PSU, wait for 15 seconds for the system to recognize the
P
SU and determine its status. The PSU redundancy may not occur until discovery is complete. Wait until the new PSU is
discovered and enabled before you remove the other PSU. The PSU status indicator turns green to signify that the PSU
is functioning properly.
